FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Hummer
>>
2008
>>
H3 L5-3.7L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Expansion Valve
>>
Service and Repair
>>

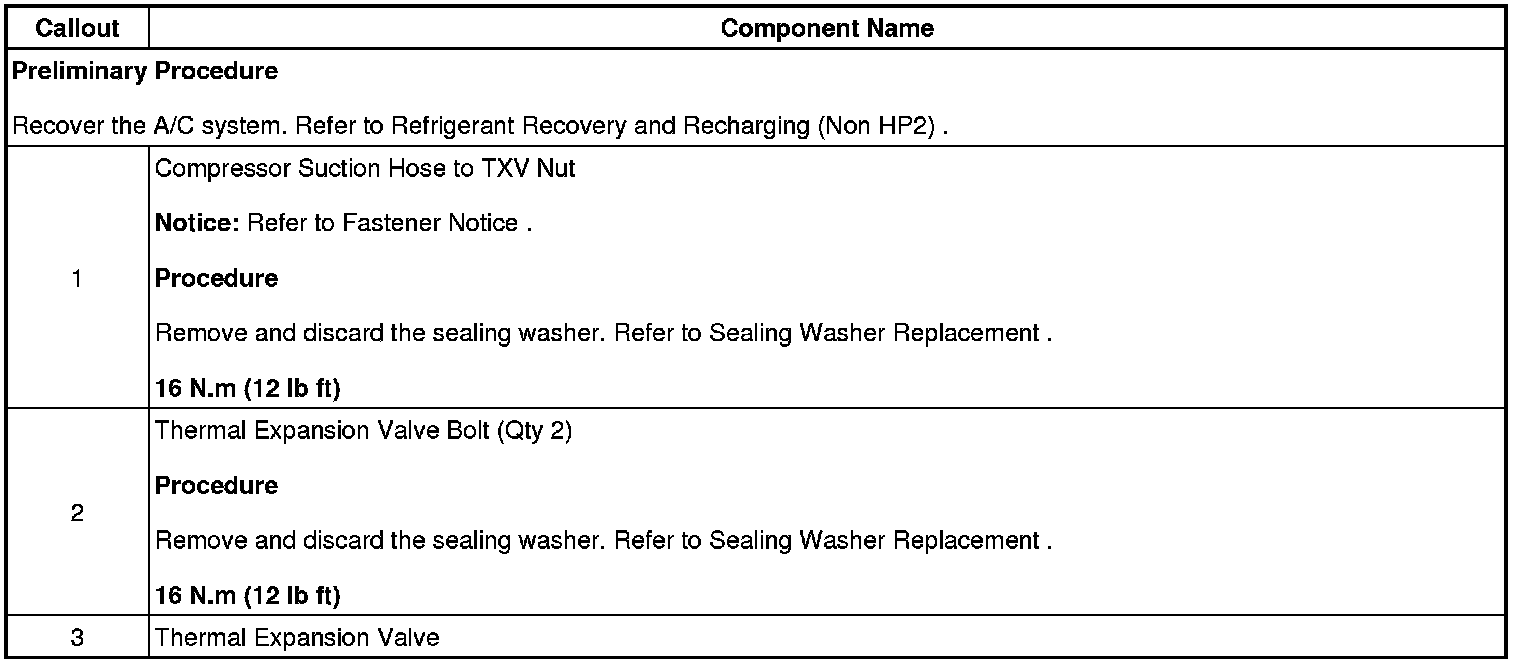

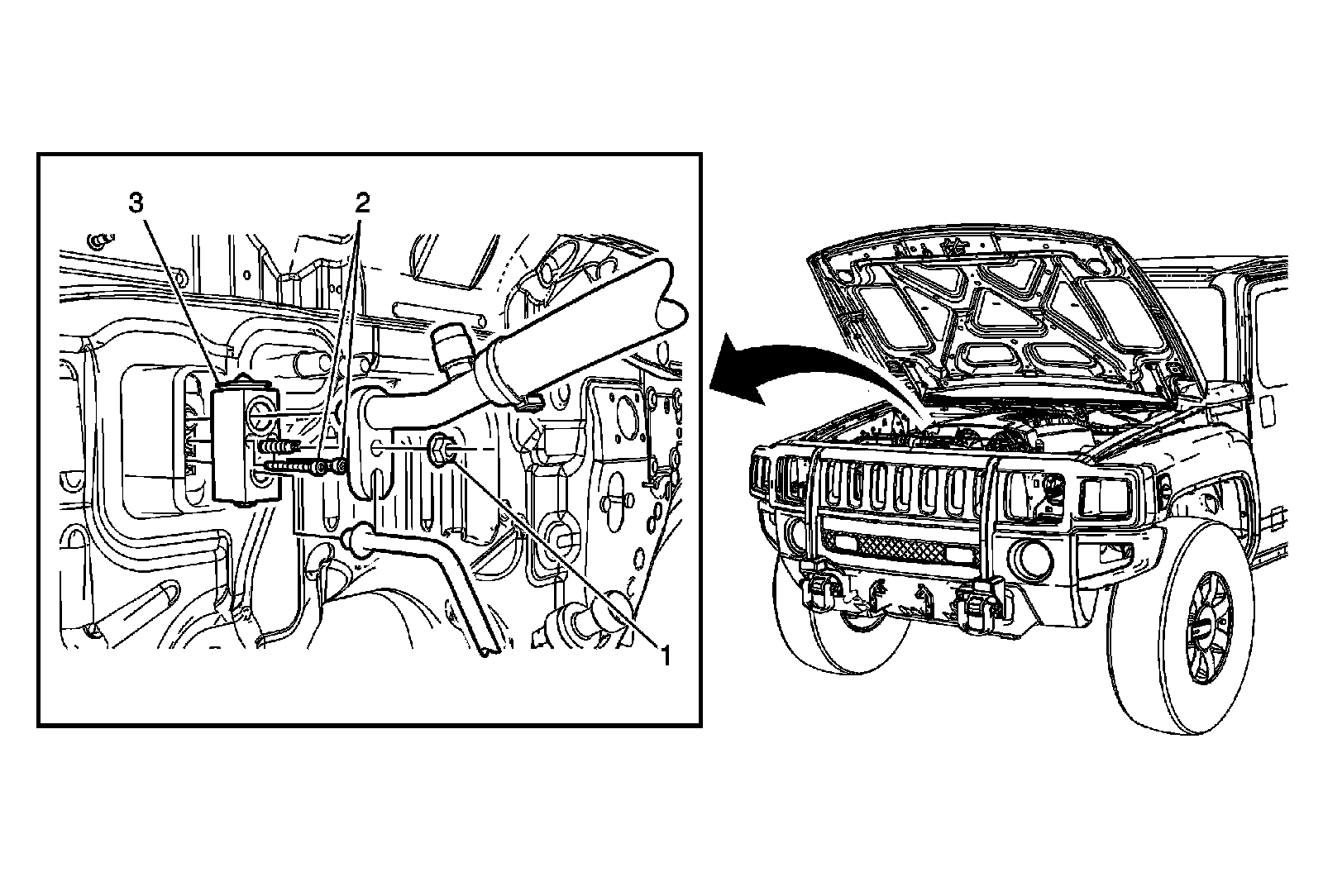

Thermal Expansion Valve Replacement (Left Hand Drive)
Thermal Expansion Valve Replacement (Left Hand Drive)
Thermal Expansion Valve Replacement (Left Hand Drive)
