Home >> Hummer >> 2008 >> H3 L5-3.7L >> Repair and Diagnosis >> Heating and Air Conditioning >> Air Register >> Service and Repair >> Rear Floor Air Outlet Replacement (Left Hand Drive)

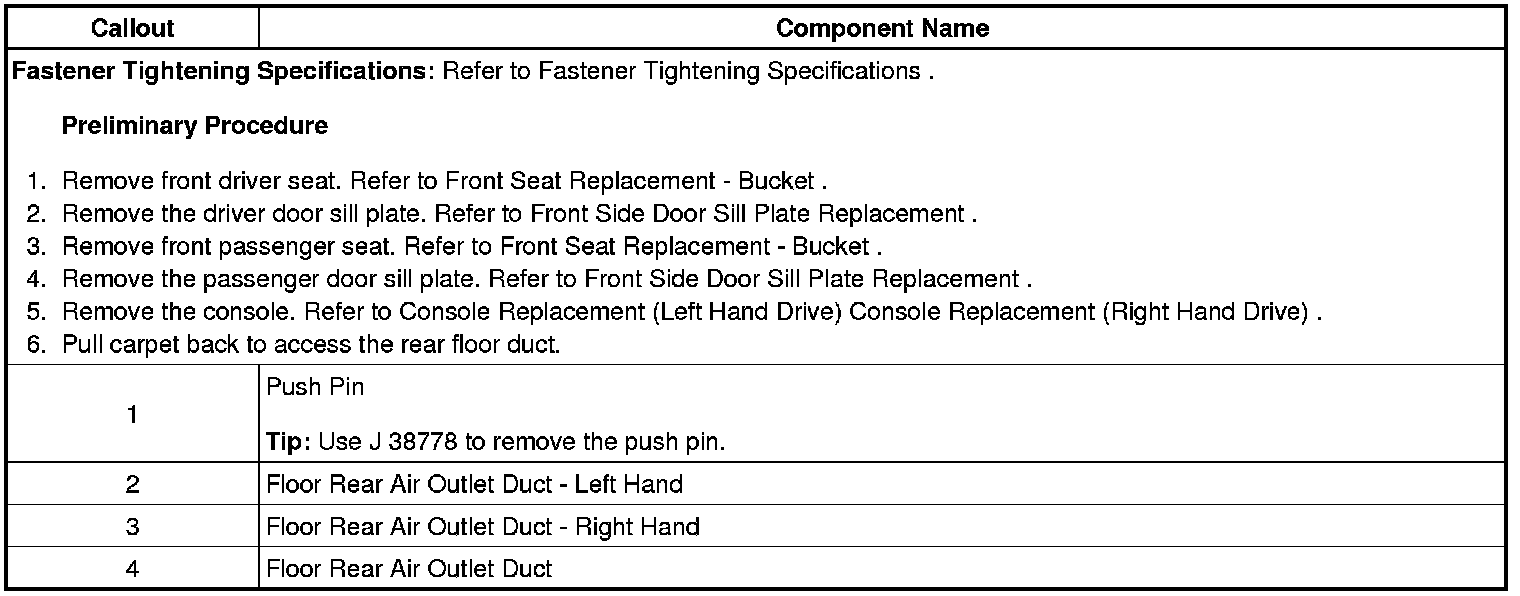

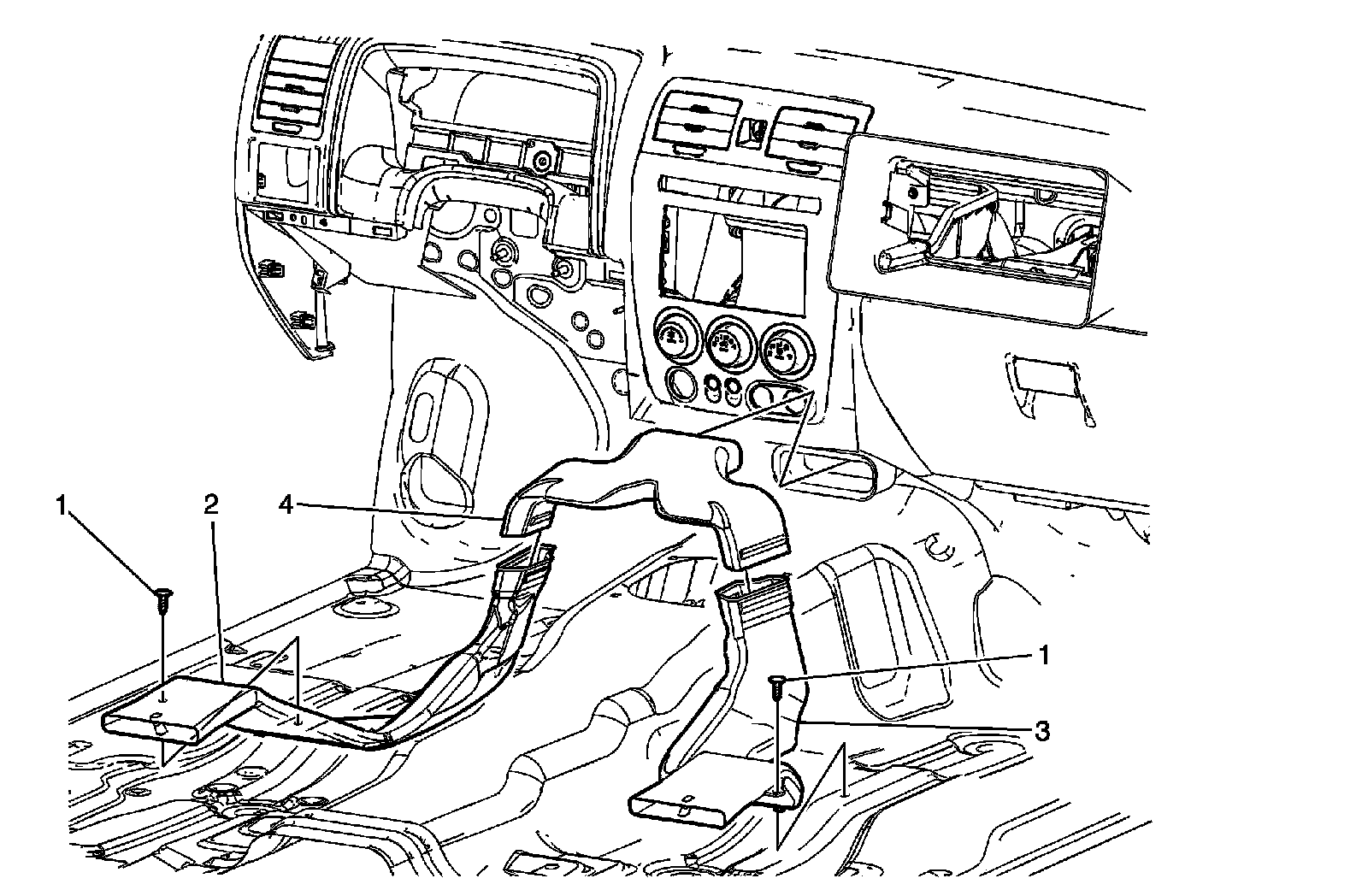

Rear Floor Air Outlet Replacement (Left Hand Drive)



Rear Floor Air Outlet Replacement (Left Hand Drive)
