Timing Cover: Service and Repair

Engine Front Cover Replacement

Tools Required

J 44219 Cover Alignment Pins


Removal Procedure





1. Remove the water pump. Refer to Water Pump Replacement (With LH8) (Service and Repair)Water Pump Replacement (With LLR) (Service and Repair) .
2. Remove the crankshaft balancer. Refer to Crankshaft Balancer Replacement (Service and Repair) .
3. Remove the drive belt tensioner. Refer to Drive Belt Tensioner Replacement (Service and Repair) .
4. Remove the power steering pump. Refer to Power Steering Pump Replacement (LH8) (Power Steering Pump Replacement)Power Steering Pump Replacement (LLR) (Power Steering Pump Replacement) .
5. Remove the oil pump pipe and screen assembly. Refer to Oil Pump Suction Pipe and Screen Assembly Replacement (Service and Repair) .
6. Lower the vehicle.
7. Remove the 7 mm center bolt (1).
8. Remove the remaining engine front cover bolts.
9. Install 2 bolts into any of the threaded holes to act as jack screws and tighten evenly in order to separate the engine front cover from the engine block.
10. Remove the engine front cover.
11. Remove the 2 bolts from the jack screw holes.
12. Remove the oil pump if necessary. Refer to Oil Pump Replacement (Service and Repair) .
13. Clean and inspect the engine front cover. Refer to Engine Front Cover Cleaning and Inspection (Overhaul) .
14. Clean and inspect the engine block sealing surface.



Installation Procedure

1. Install the oil pump, if previously removed. Refer to Oil Pump Replacement (Service and Repair) .




2. To aid in alignment of the front cover, thread the J 44219 into the engine block.





Important: The engine front cover must be installed within 10 minutes from when the sealer was applied.

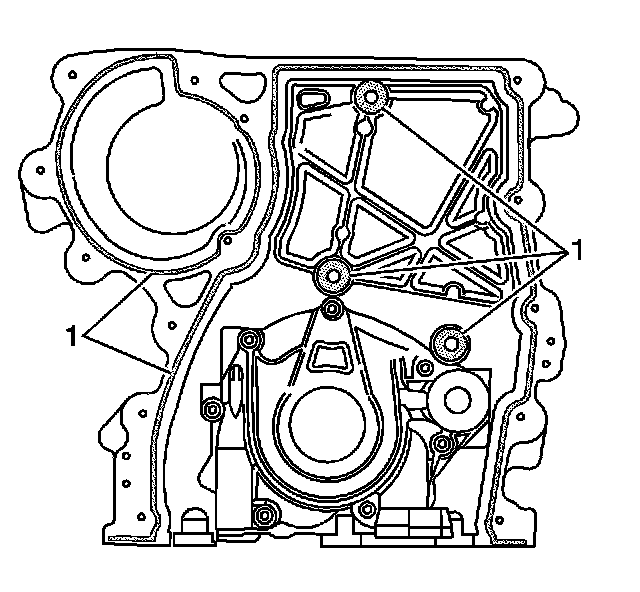

3. Apply a 3 mm (0.12 in) bead of sealer to the engine front cover (1). Refer to Adhesives, Fluids, Lubricants, and Sealers (Sealers, Adhesives, and Lubricants) .




4. Align the oil pump to the crankshaft sprocket splines.
5. Install the engine front cover over the J 44219 , and to the engine block.
6. Install the engine front cover bolts.
7. Remove the J 44219 from the engine block.

Notice: Refer to Fastener Notice (Fastener Notice) .

8. Install the 2 remaining engine front cover bolts.

1. Tighten the bolts to 10 N.m (89 lb in).
2. Tighten the small center bolt (1) last to 8 N.m (71 lb in).


9. Install the oil pump pipe and screen assembly. Refer to Oil Pump Suction Pipe and Screen Assembly Replacement (Service and Repair) .
10. Install the power steering pump. Refer to Power Steering Pump Replacement (LH8) (Power Steering Pump Replacement)Power Steering Pump Replacement (LLR) (Power Steering Pump Replacement) .
11. Install the drive belt tensioner. Refer to Drive Belt Tensioner Replacement (Service and Repair) .
12. Install the crankshaft balancer. Refer to Crankshaft Balancer Replacement (Service and Repair) .
13. Install the water pump. Refer to Water Pump Replacement (With LH8) (Service and Repair)Water Pump Replacement (With LLR) (Service and Repair) .
