Home >> Hummer >> 2008 >> H3 L5-3.7L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Coolant Reservoir >> Service and Repair >> Coolant Recovery Reservoir Replacement (Right Hand Drive)

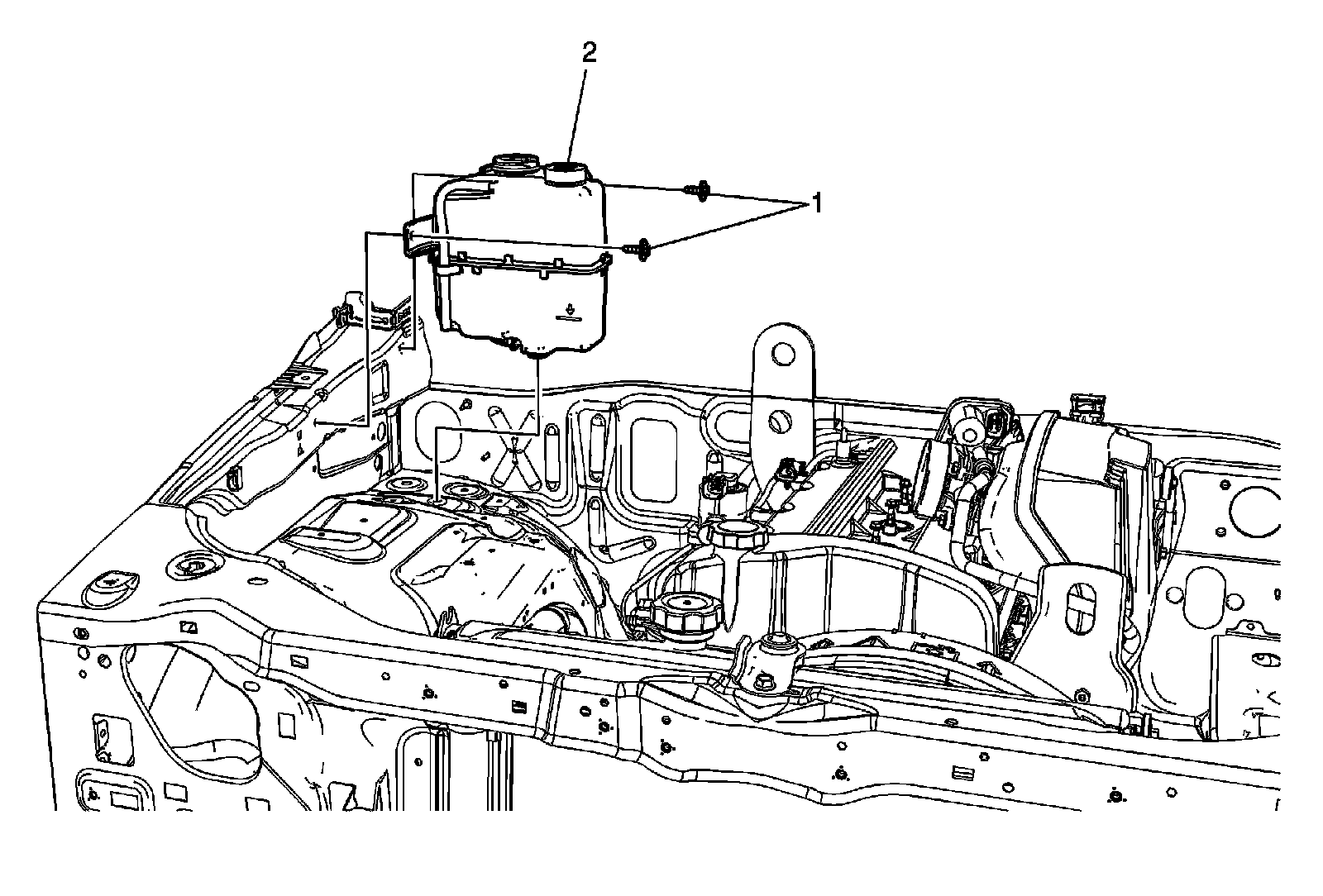

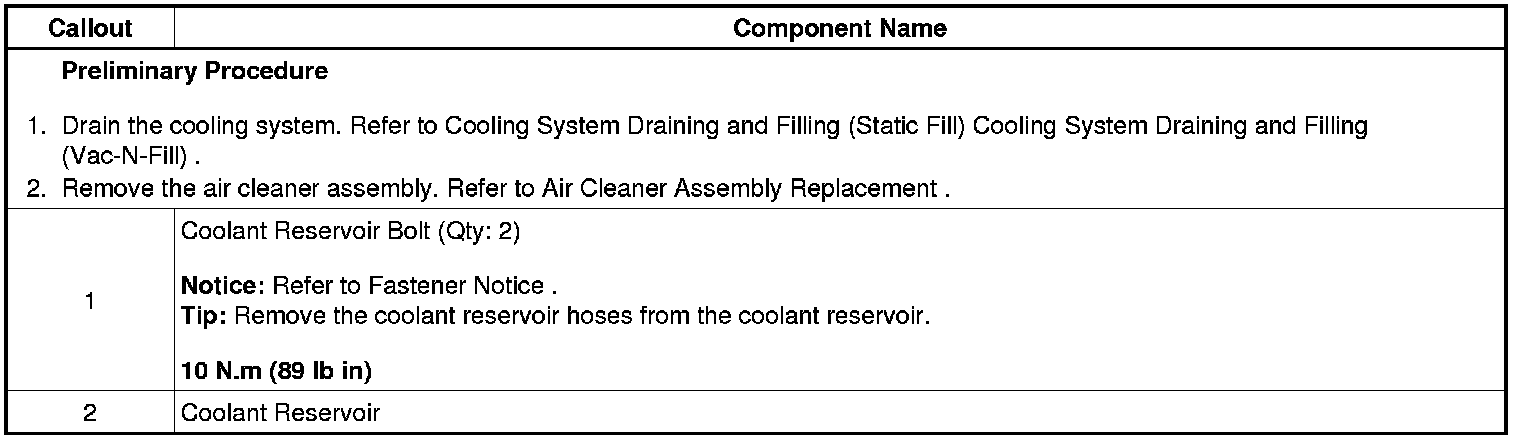

Coolant Recovery Reservoir Replacement (Right Hand Drive)



Coolant Recovery Reservoir Replacement (Right Hand Drive)
