Instrument Panel Views

Harness Routing Views

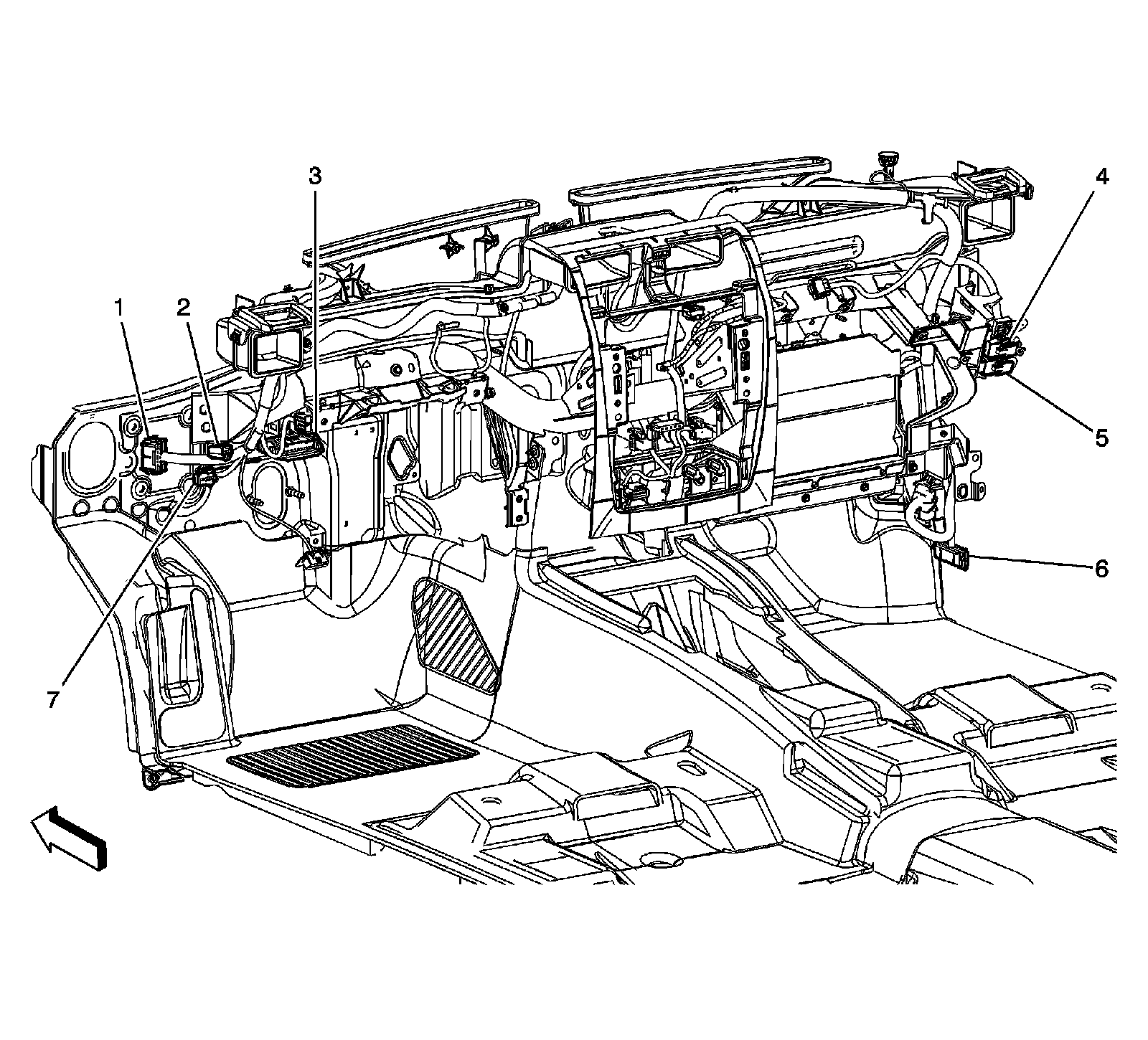

I/P Harness Routing (LHD)




1 - X200
2 - X207
3 - X201
4 - X203
5 - X205
6 - X204
7 - X208

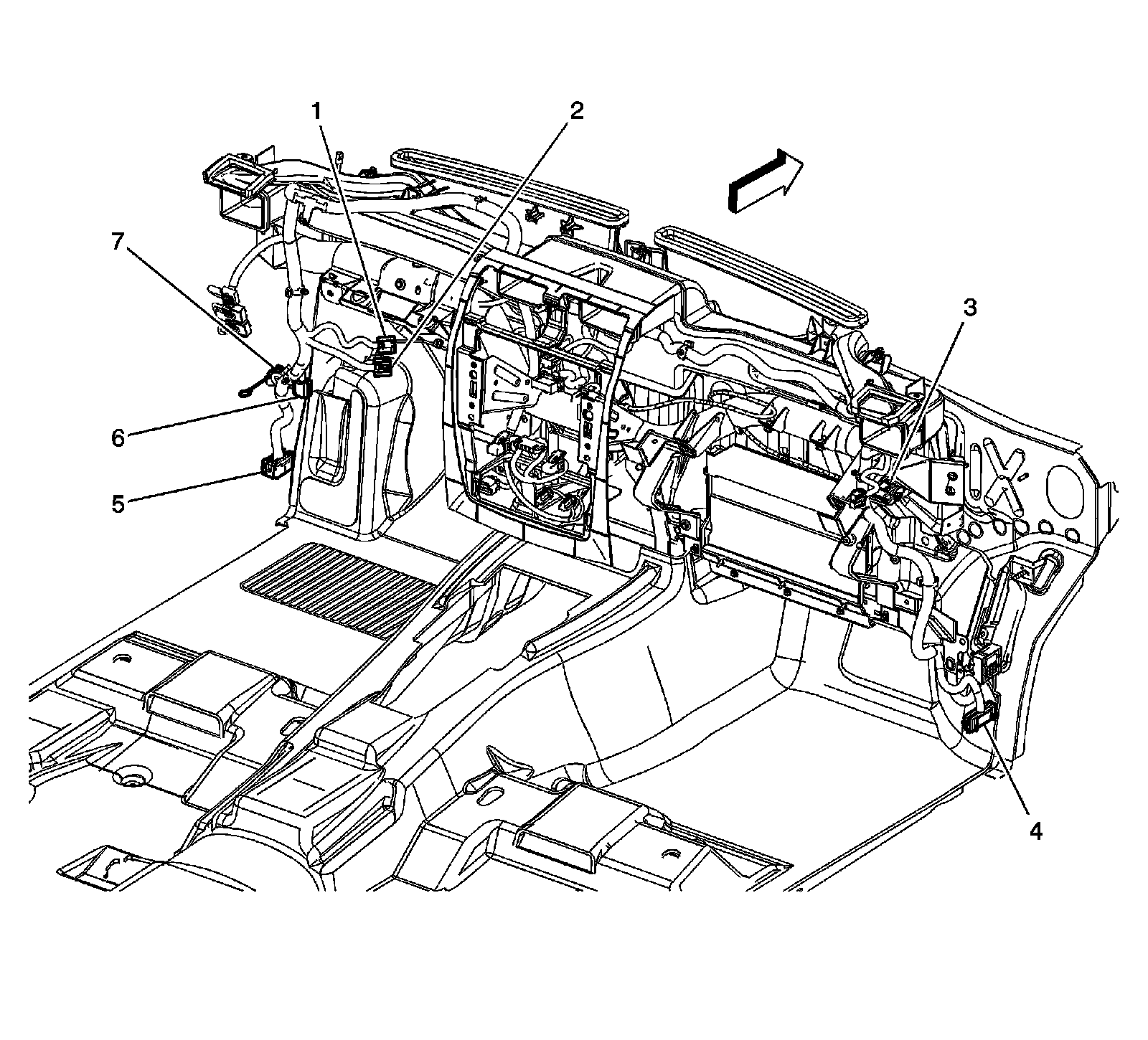

I/P Harness Routing (RHD)




1 - X203
2 - X205
3 - X201
4 - X204
5 - X200
6 - X207
7 - X208

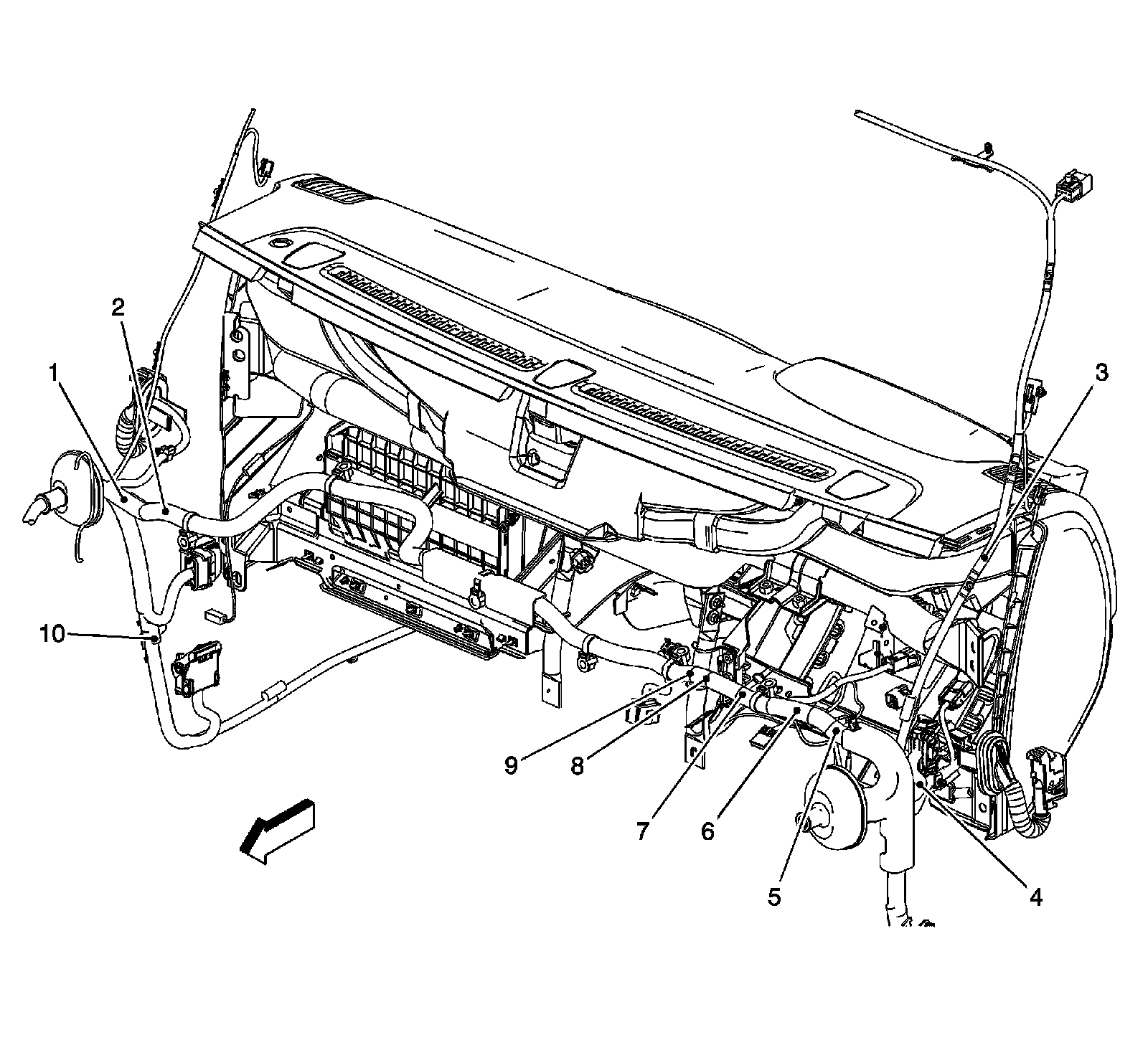

I/P Harness Splices




1 - J245
2 - J244
3 - J210
4 - J224
5 - J294
6 - J295
7 - J209
8 - J213
9 - J215
10 - J292
