Body Views

Harness Routing Views

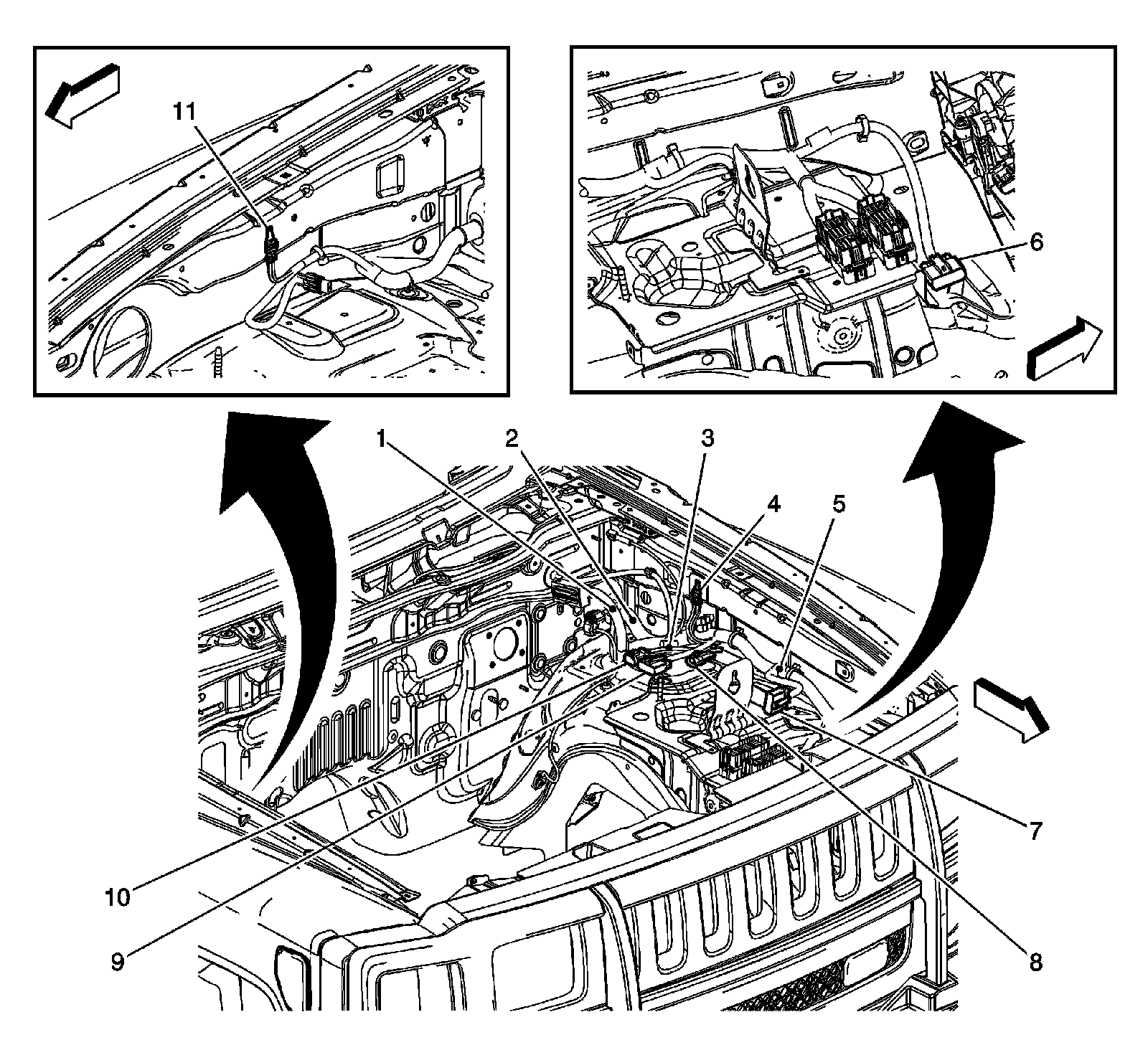

Body Harness - Engine Compartment




1 - J110
2 - J141
3 - J142
4 - G105
5 - J143
6 - X115
7 - X125
8 - X130
9 - X150
10 - X155
11 - G106

Body Harness - Left (LHD)




1 - X330
2 - X335 (CF5 or UE1)
3 - X600
4 - X275
5 - G300
6 - X307
7 - X308
8 - X380
9 - G310

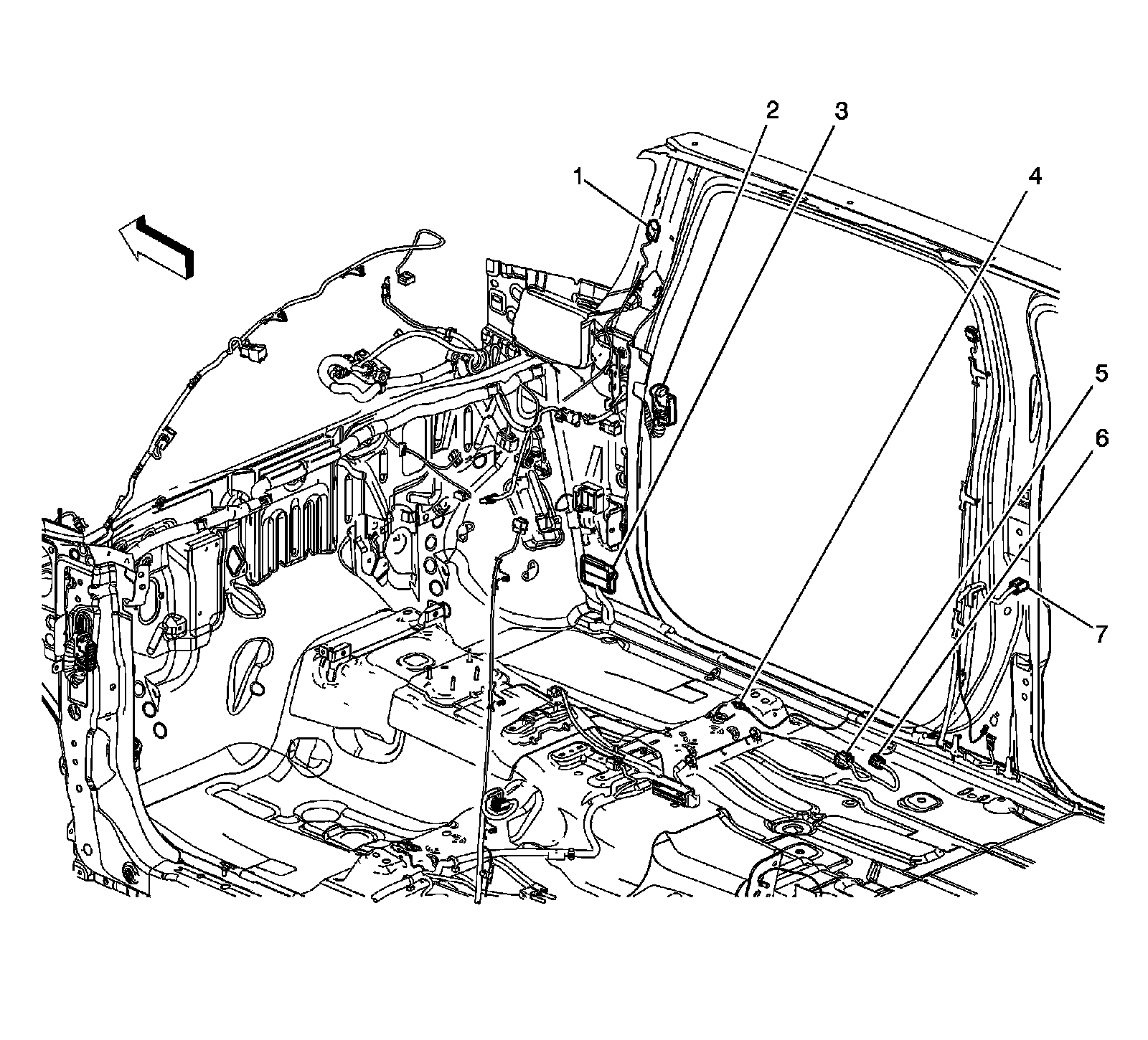

Body Harness Right (LHD)




1 - X350
2 - X500
3 - X204
4 - X315
5 - X320
6 - X370
7 - G320

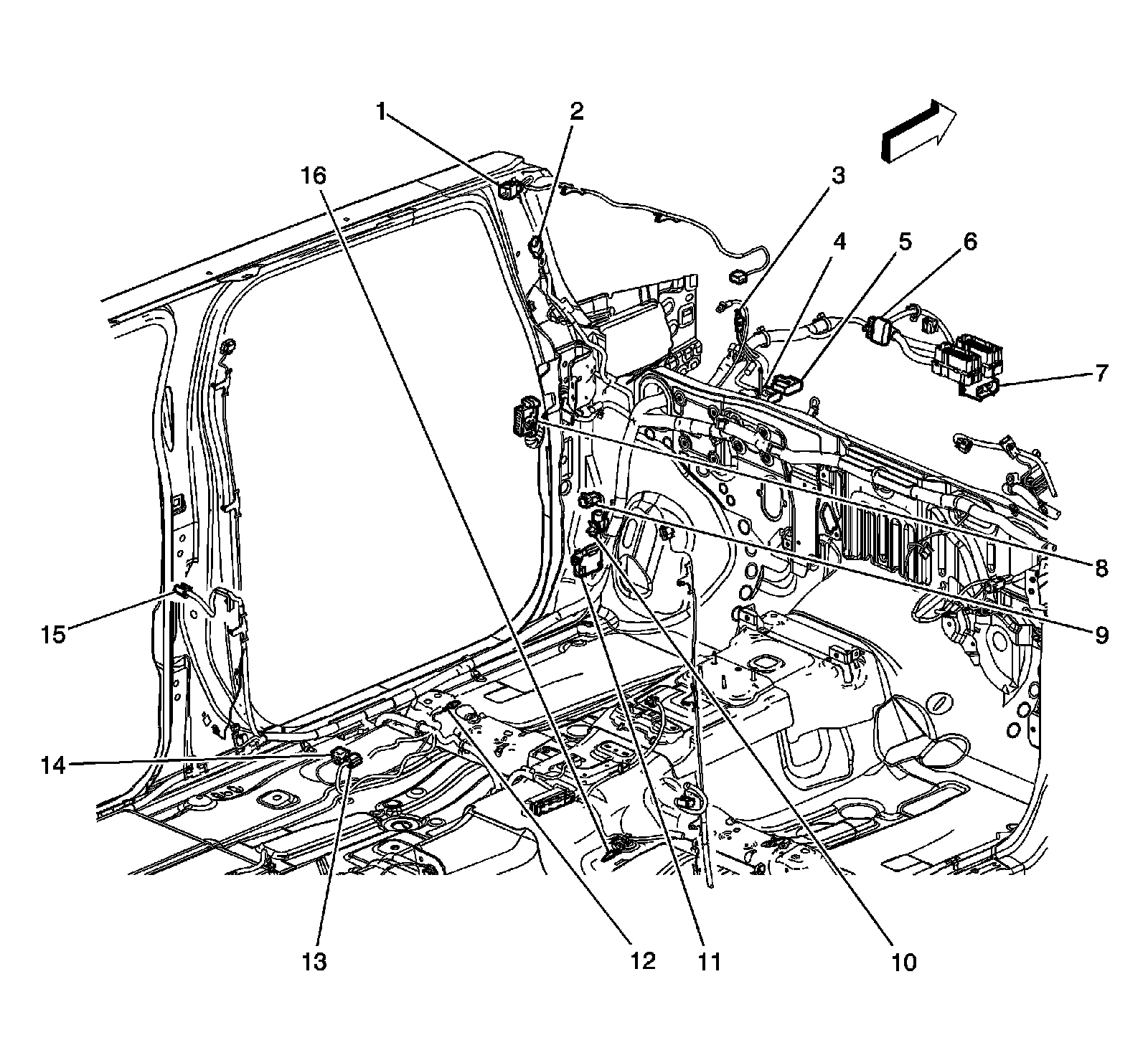

Body Harness Routing - Left (RHD)




1 - X330
2 - X335
3 - G106
4 - X155
5 - X150
6 - X125
7 - X115
8 - X500
9 - X208
10 - X207
11 - X200
12 - G320
13 - X315
14 - X320
15 - X370
16 - G310

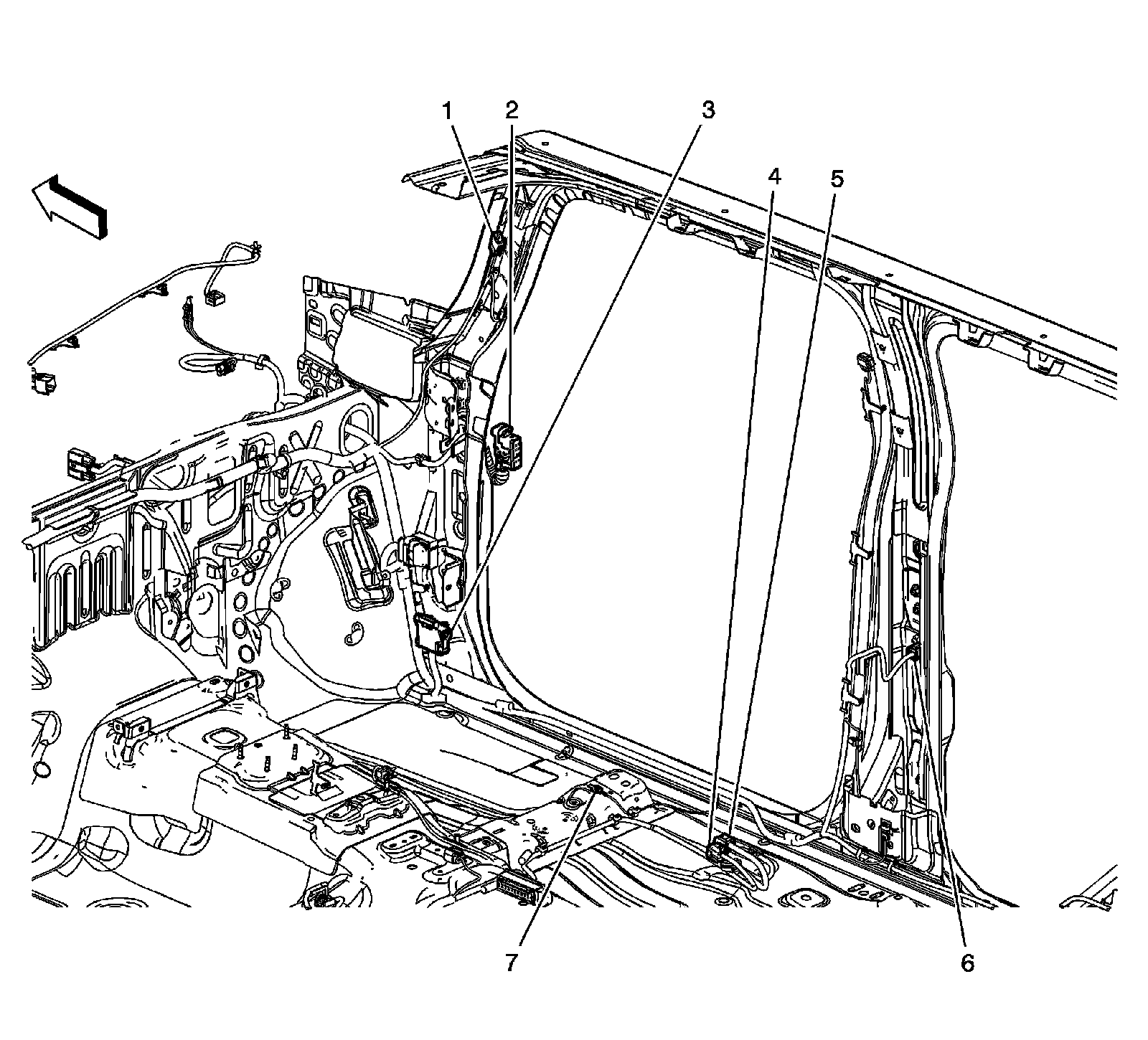

Body Harness - Right (RHD)




1 - X330
2 - X600
3 - X204
4 - G300
5 - X307
6 - X308
7 - X380

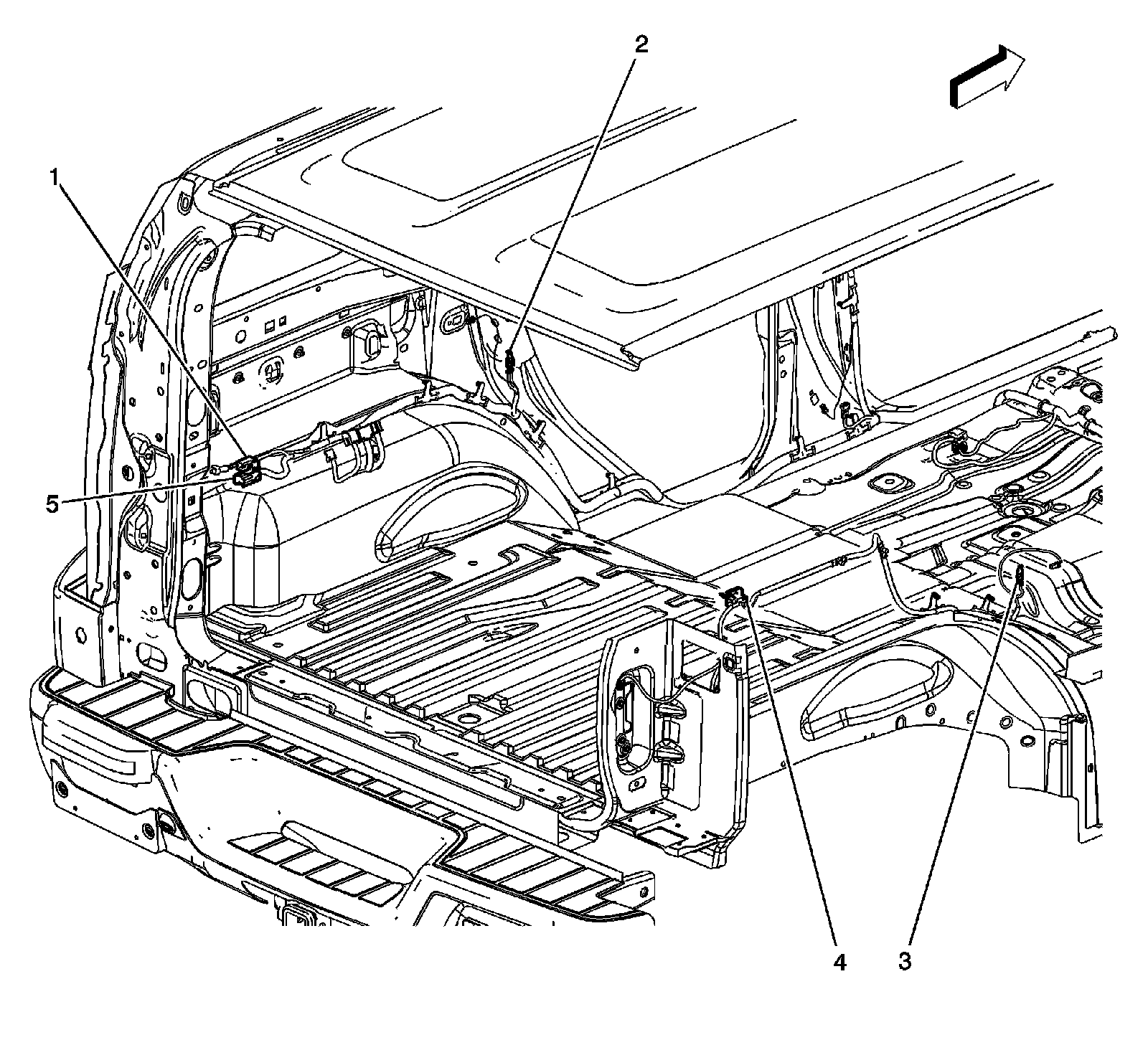

Body Harness Rear




1 - X410
2 - G345 and G350
3 - G340
4 - X430
5 - X450

Body Harness Routing - Splices




1 - J314
2 - J344
3 - J310
4 - J305
5 - J320
6 - J323
7 - J347
8 - J315
