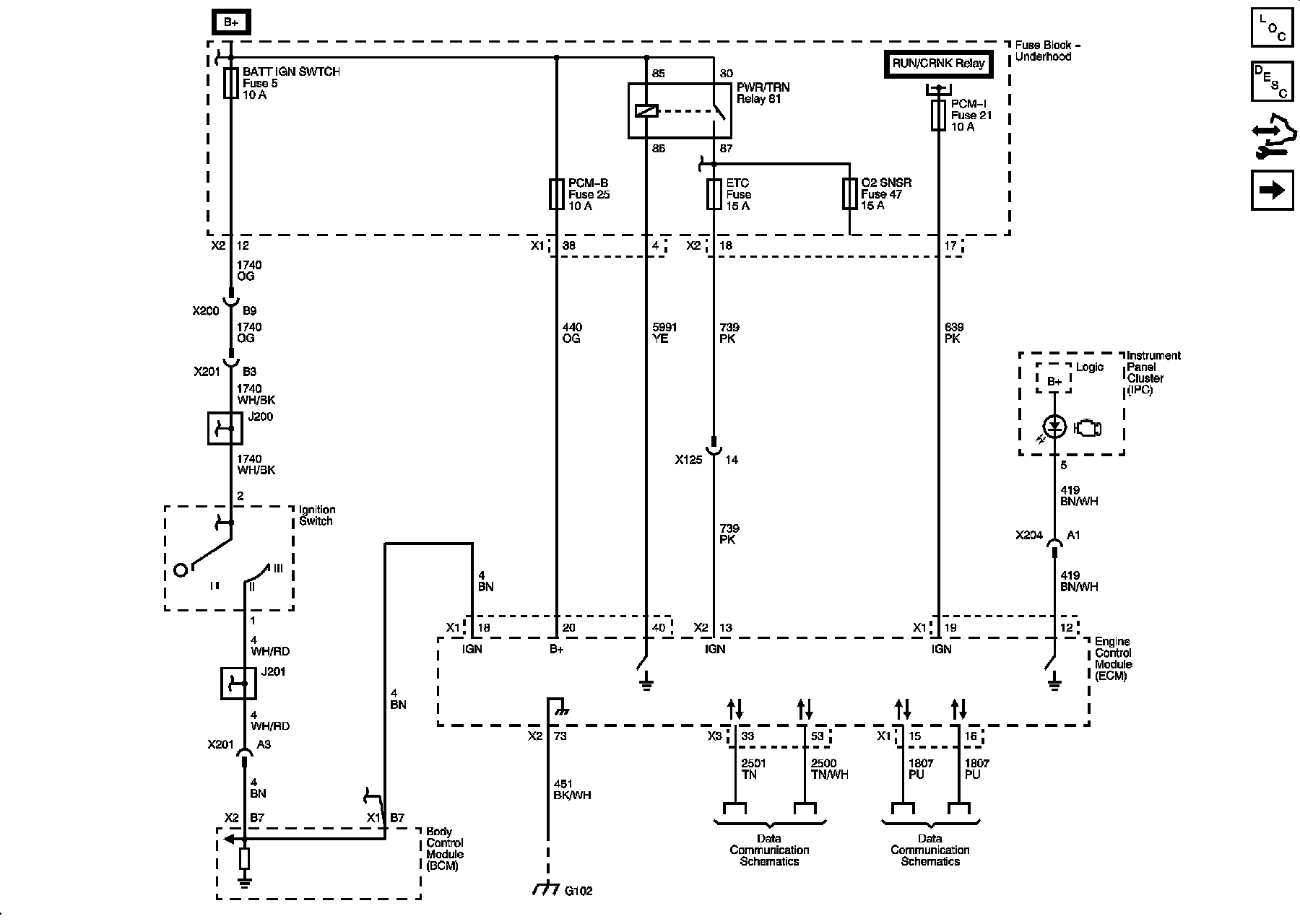

Engine Controls Schematic 1



Engine Controls Schematics

Module Power, Ground, Serial Data and MIL
