Home >> Hummer >> 2008 >> H3 L5-3.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Exterior Lights Schematics >> Exterior Lights Schematic 6

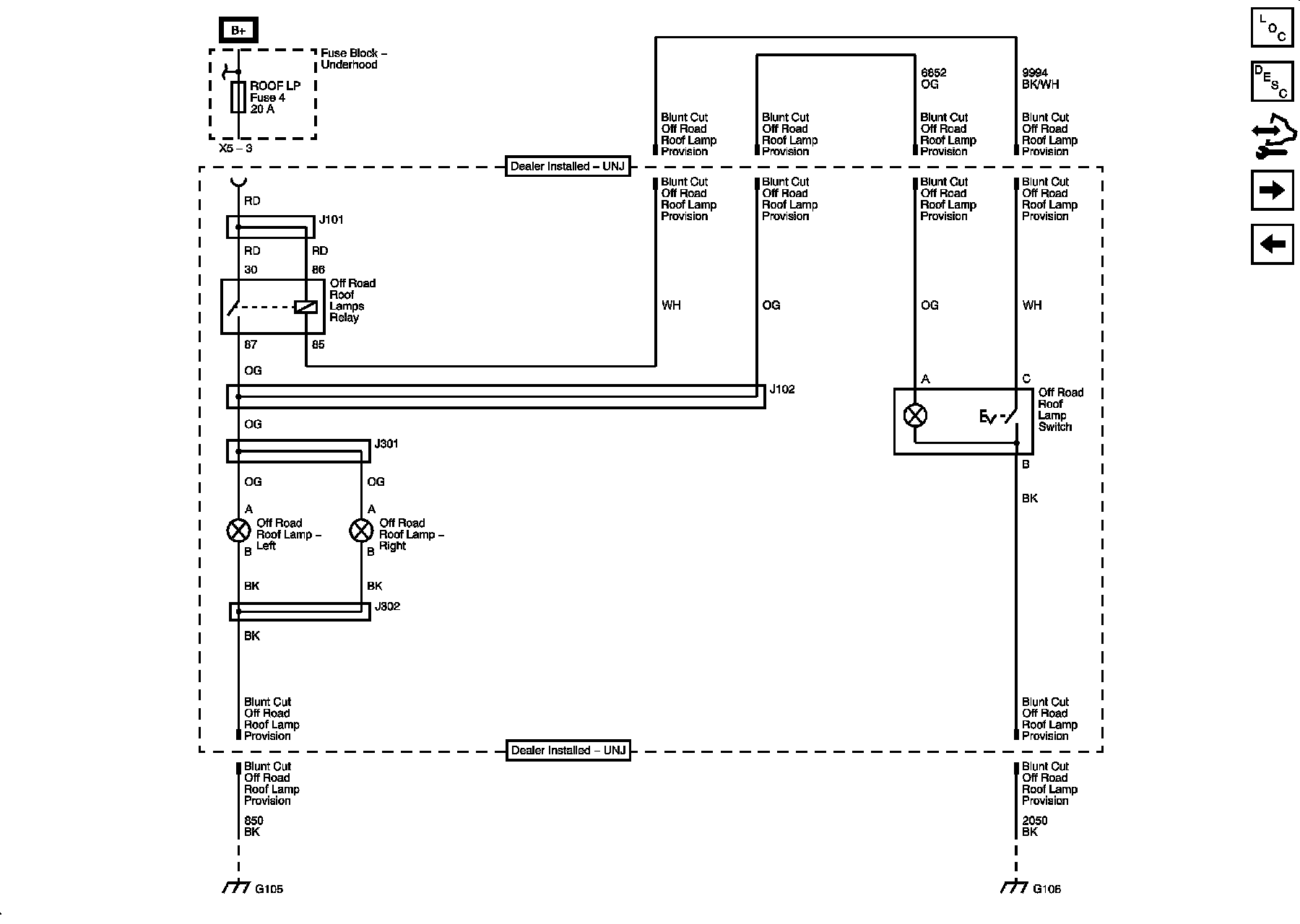

Exterior Lights Schematic 6



Exterior Lights Schematics

Roof Mounted Off Road Lamps - UNJ
