Radio/Navigation System Schematics



Radio/Navigation System Schematics

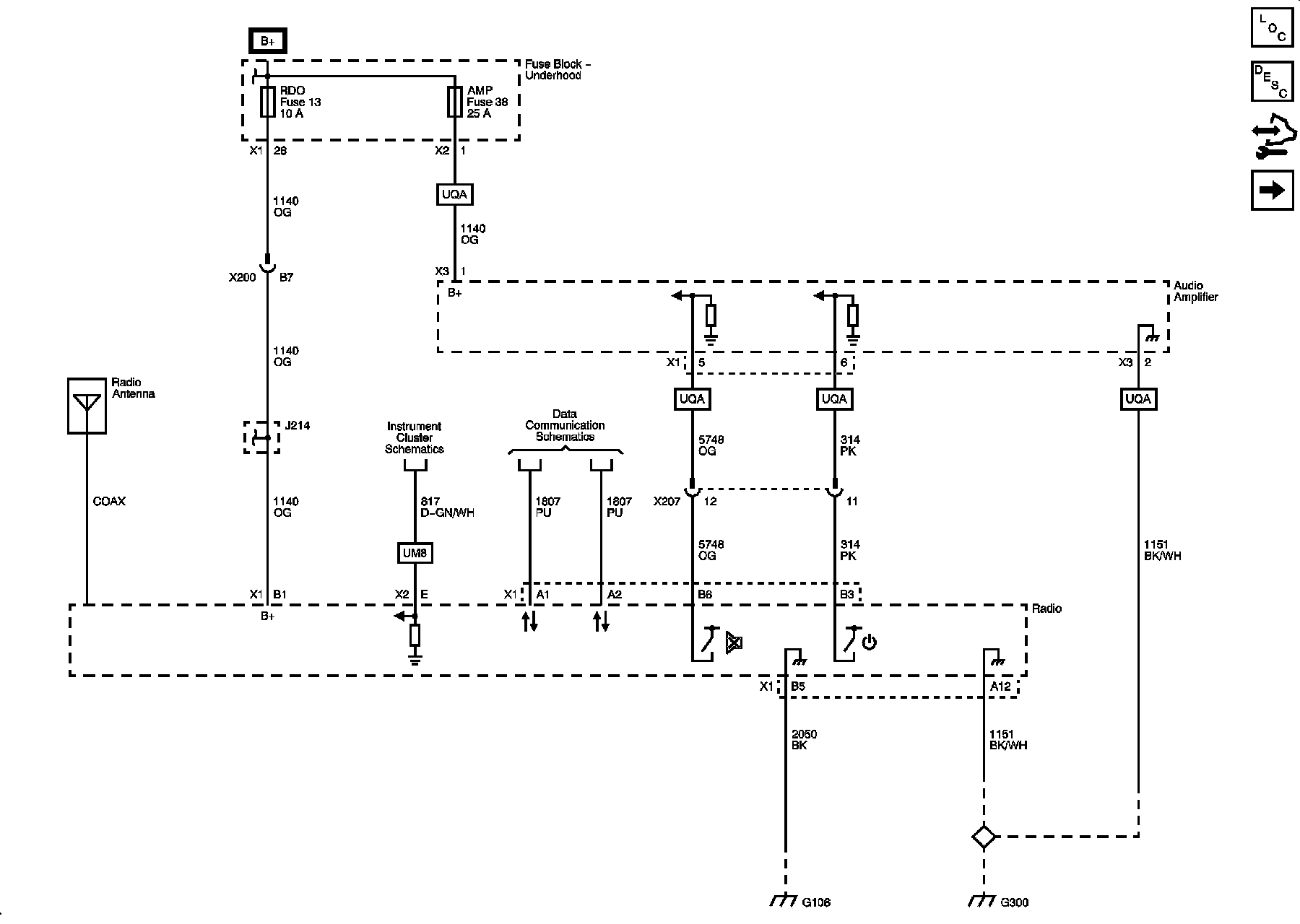

Power, Ground, and Serial Data

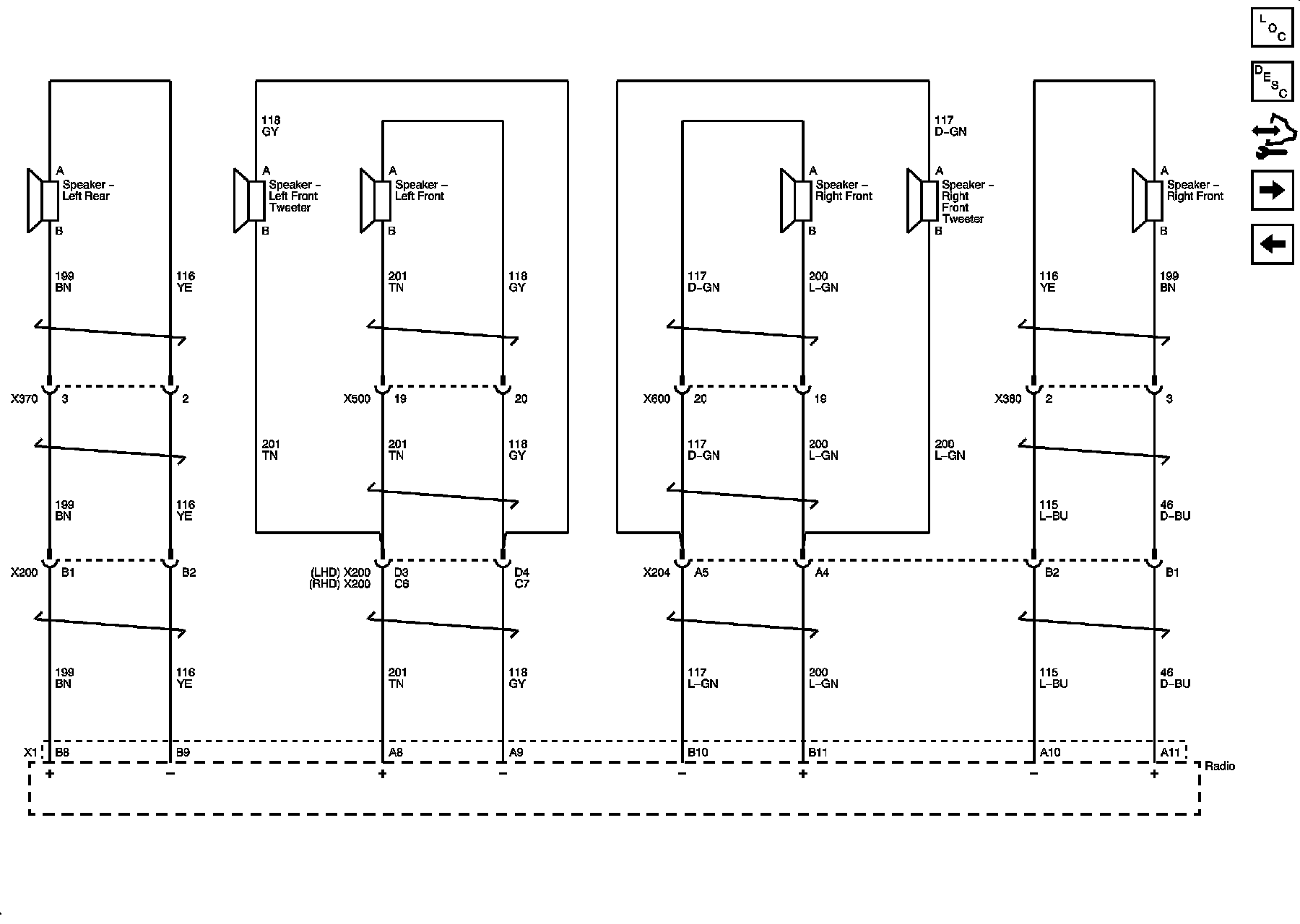

Speakers - UQ3

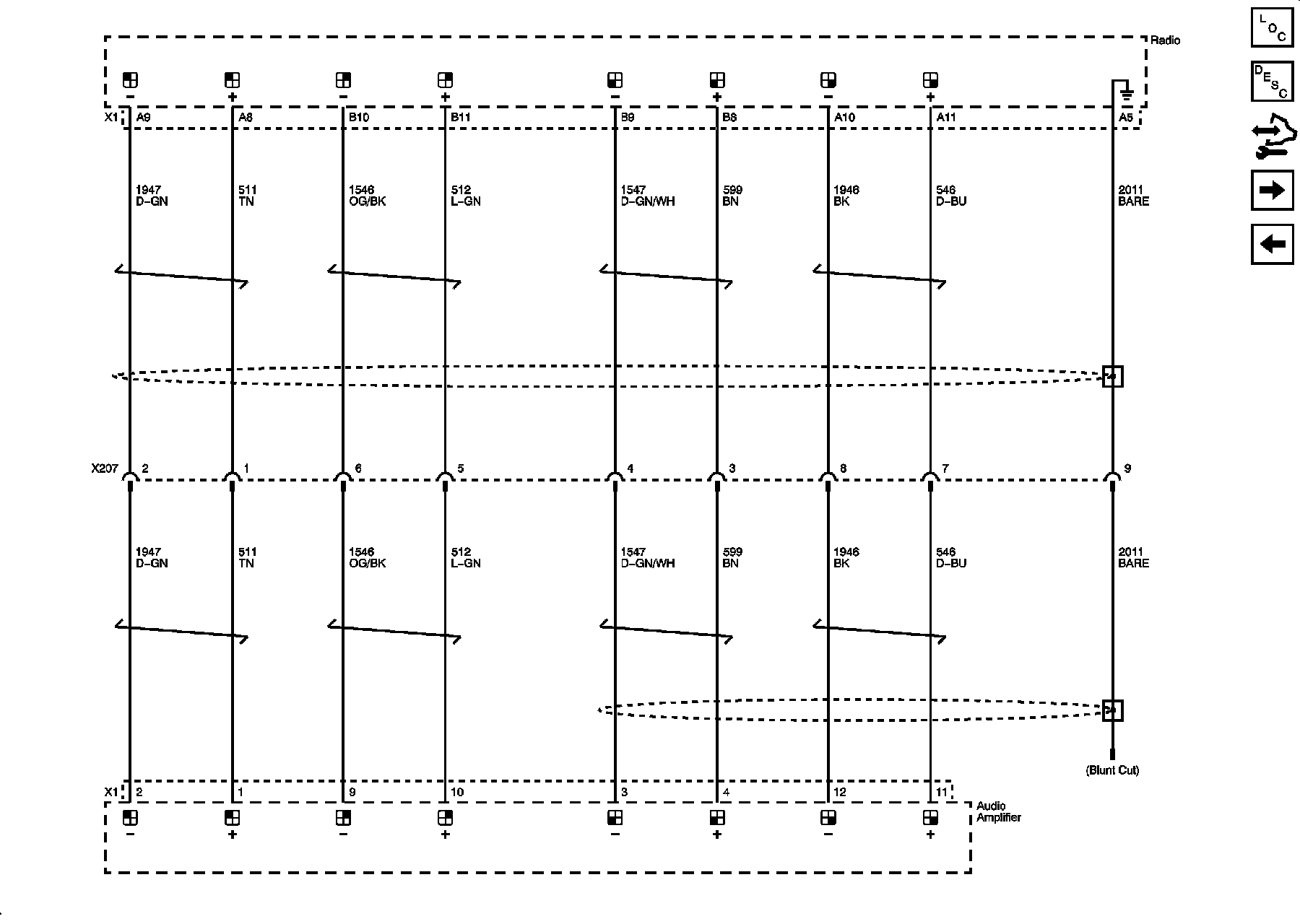

Amplifier Inputs - UQA

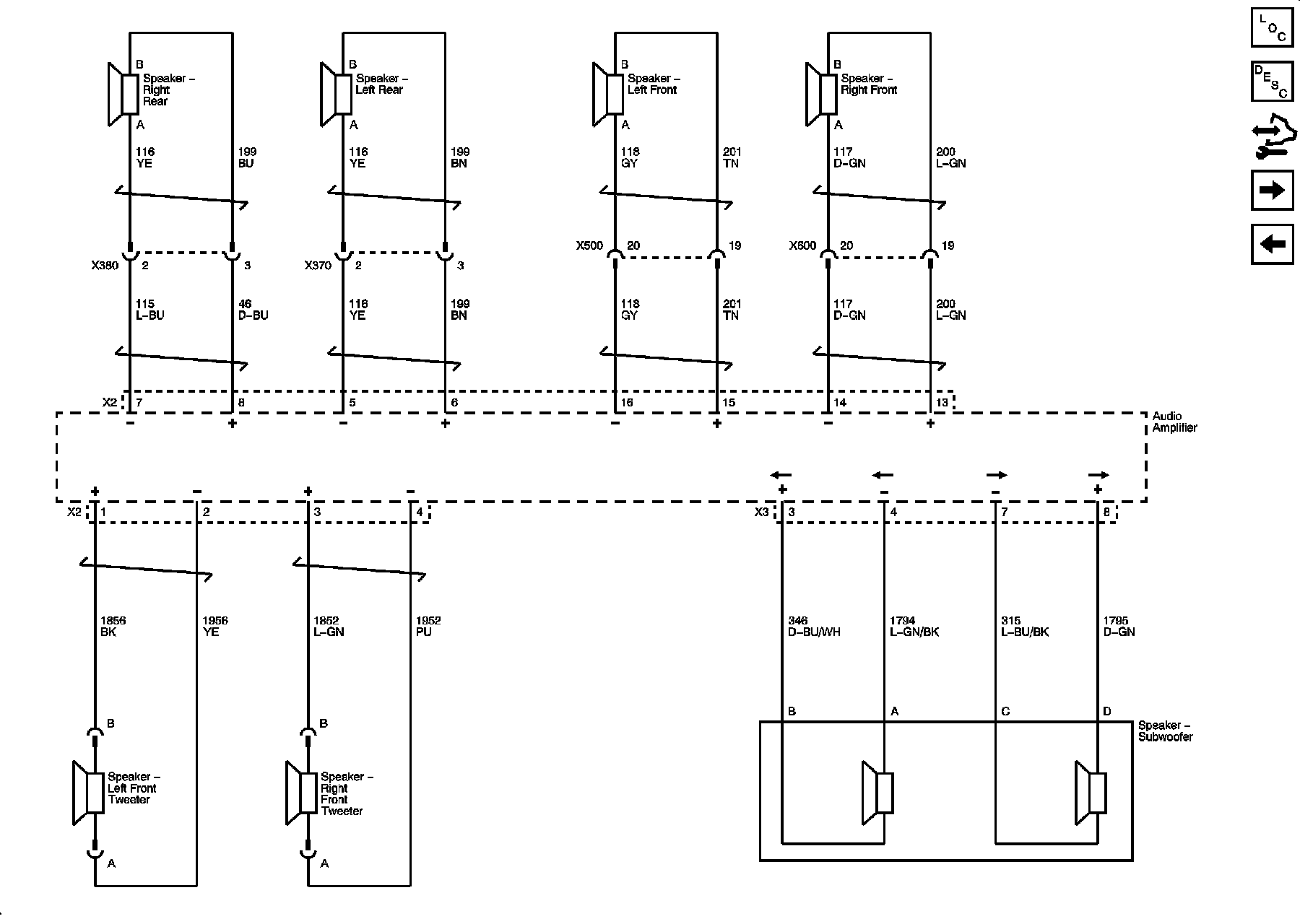

Speakers - UQS

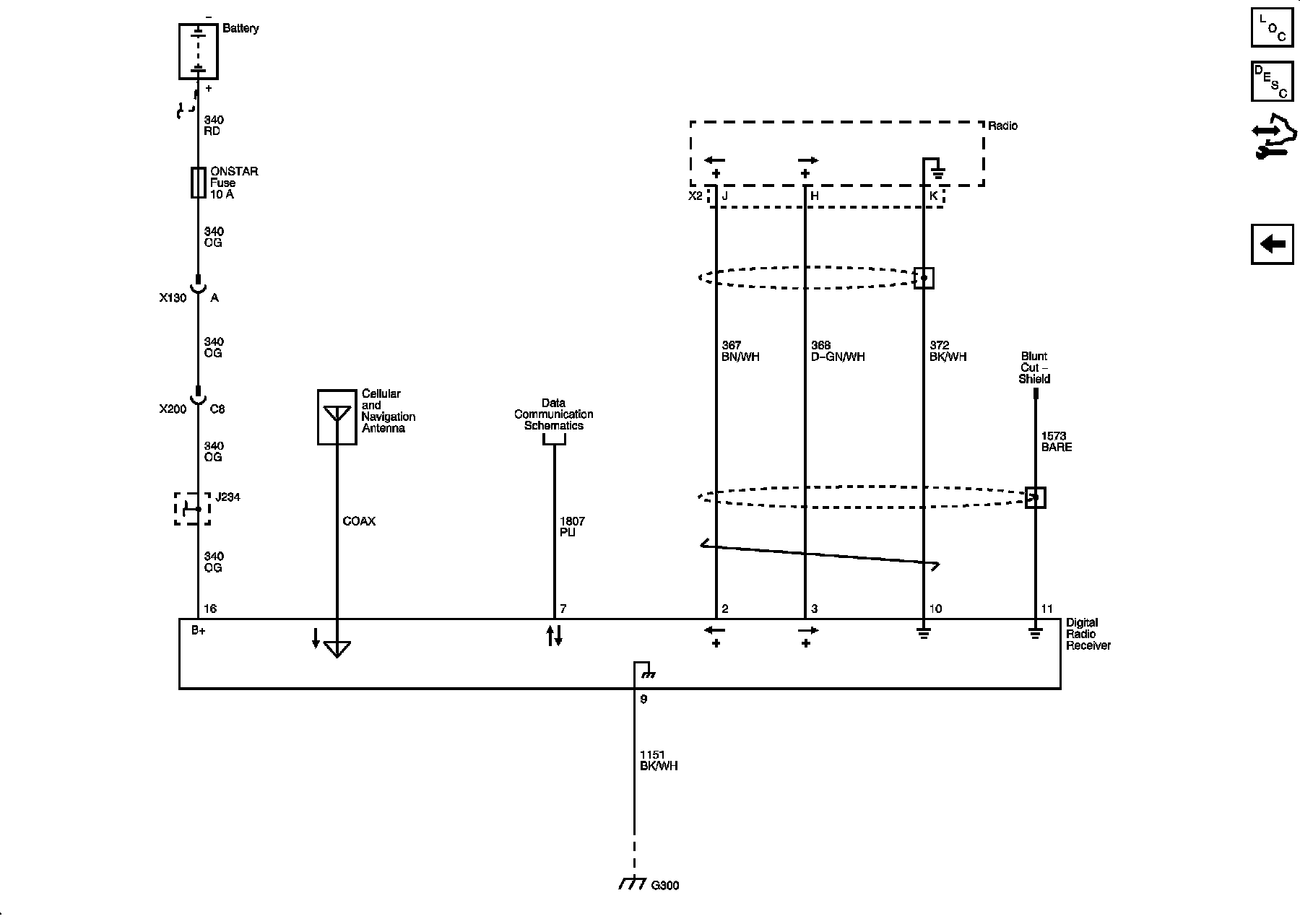

Digital Radio Receiver - U2K
