Control Module, Transfer Case
Control Module, Transfer Case

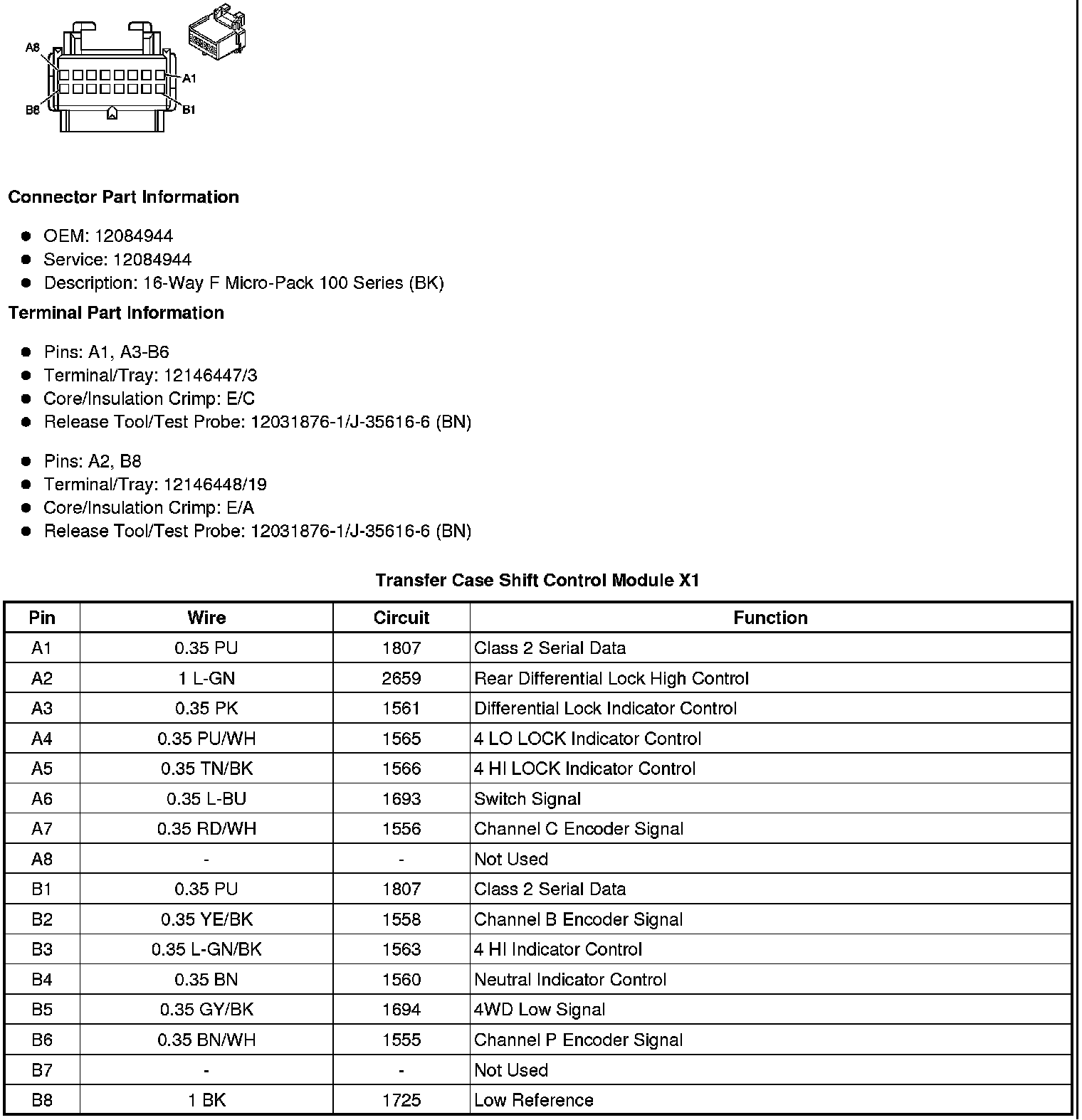

Transfer Case Shift Control Module X1

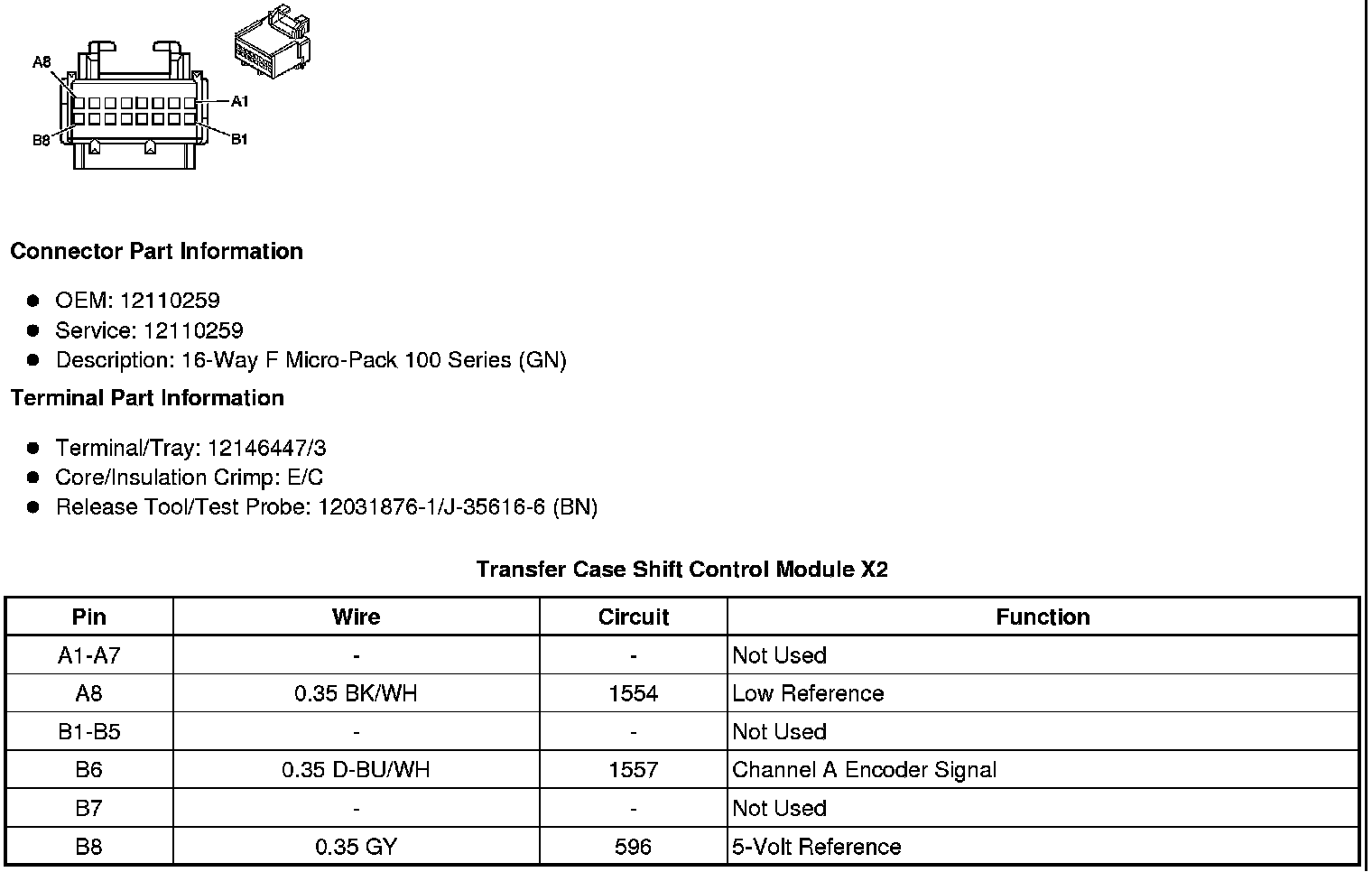

Transfer Case Shift Control Module X2
Transfer Case Shift Control Module X3
