Home >> Hummer >> 2008 >> H3 L5-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Component Connector End Views >> Wipers and Washers

Wipers and Washers

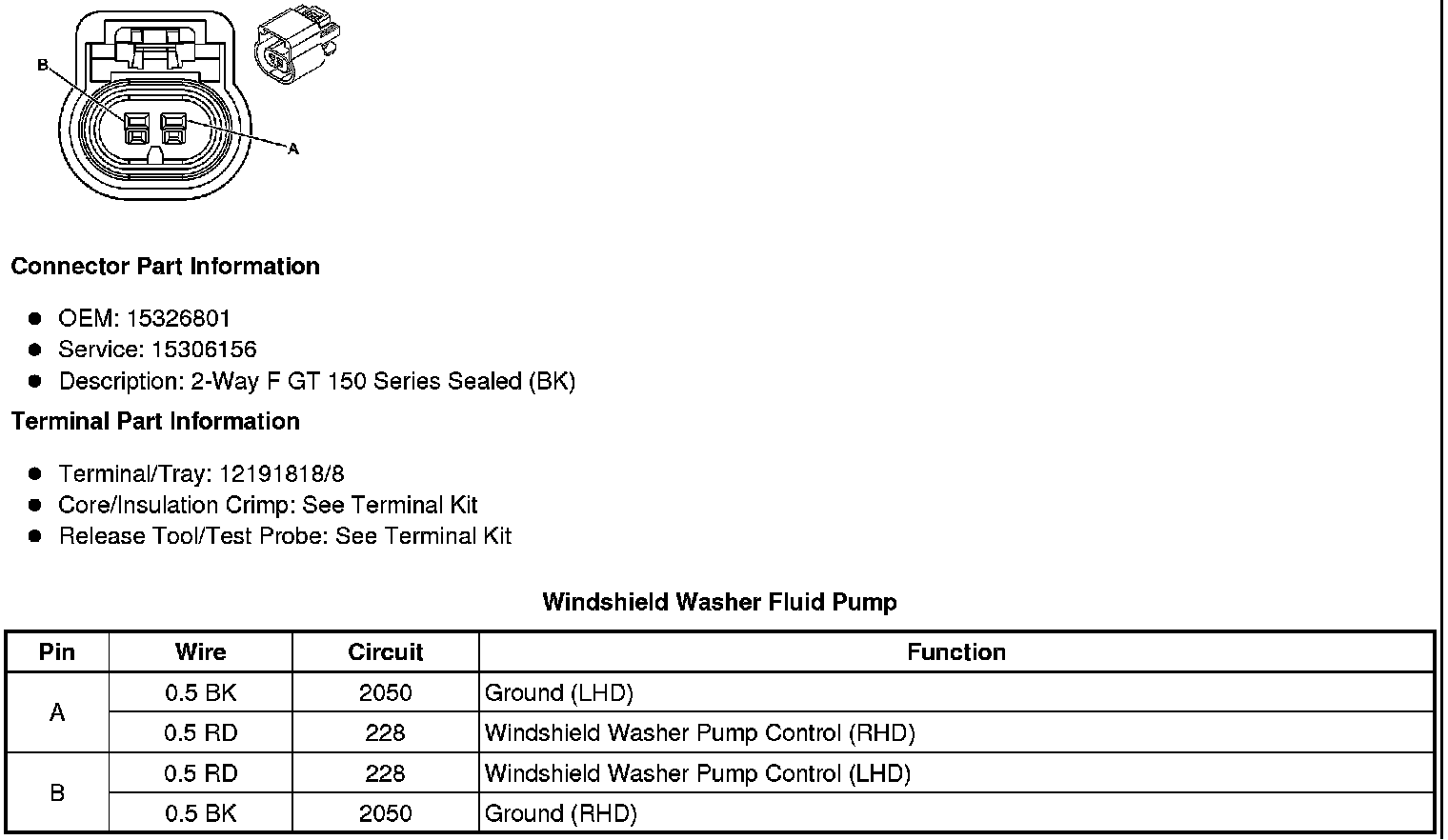

Windshield Washer Fluid Pump

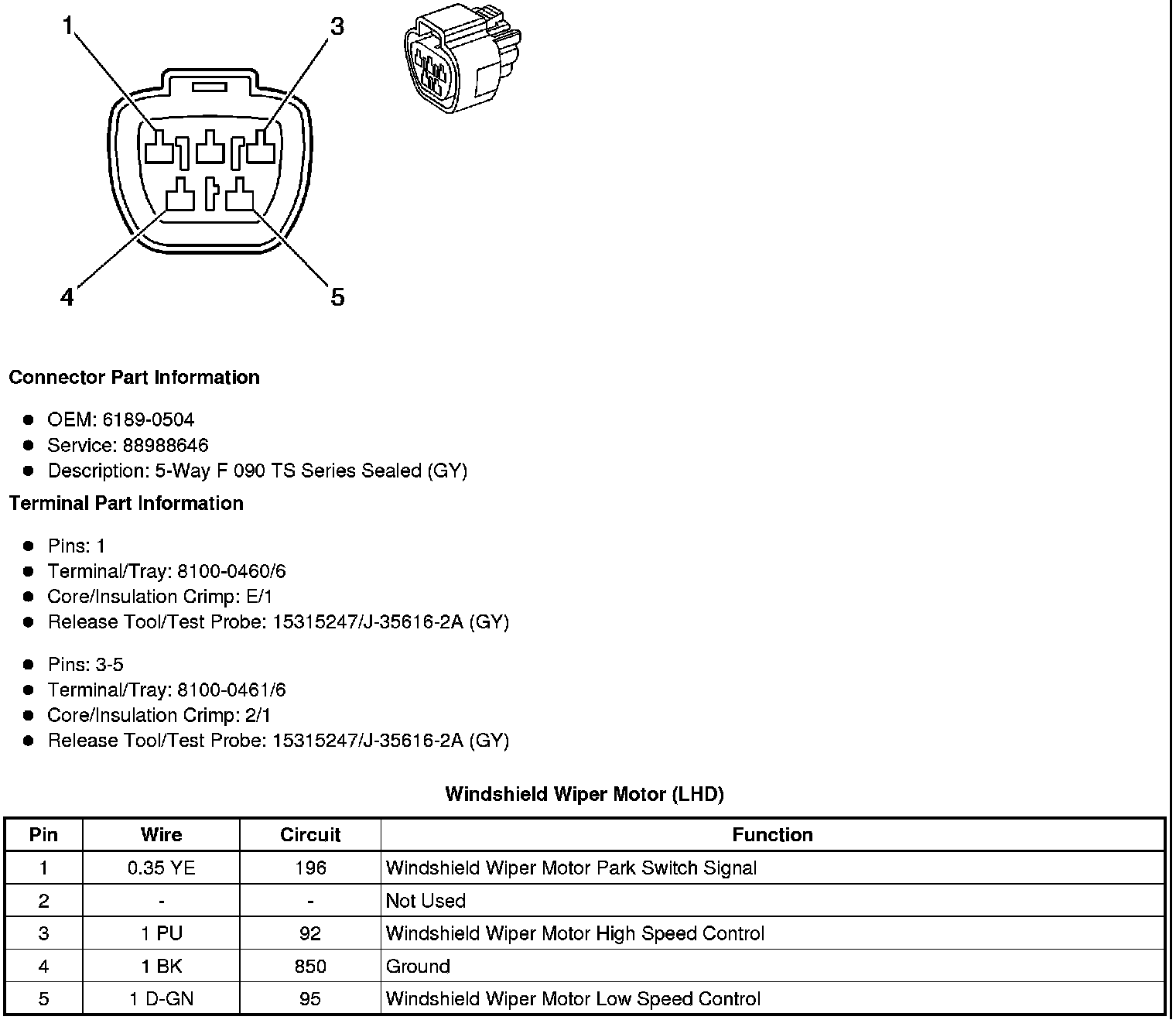

Windshield Wiper Motor (LHD)

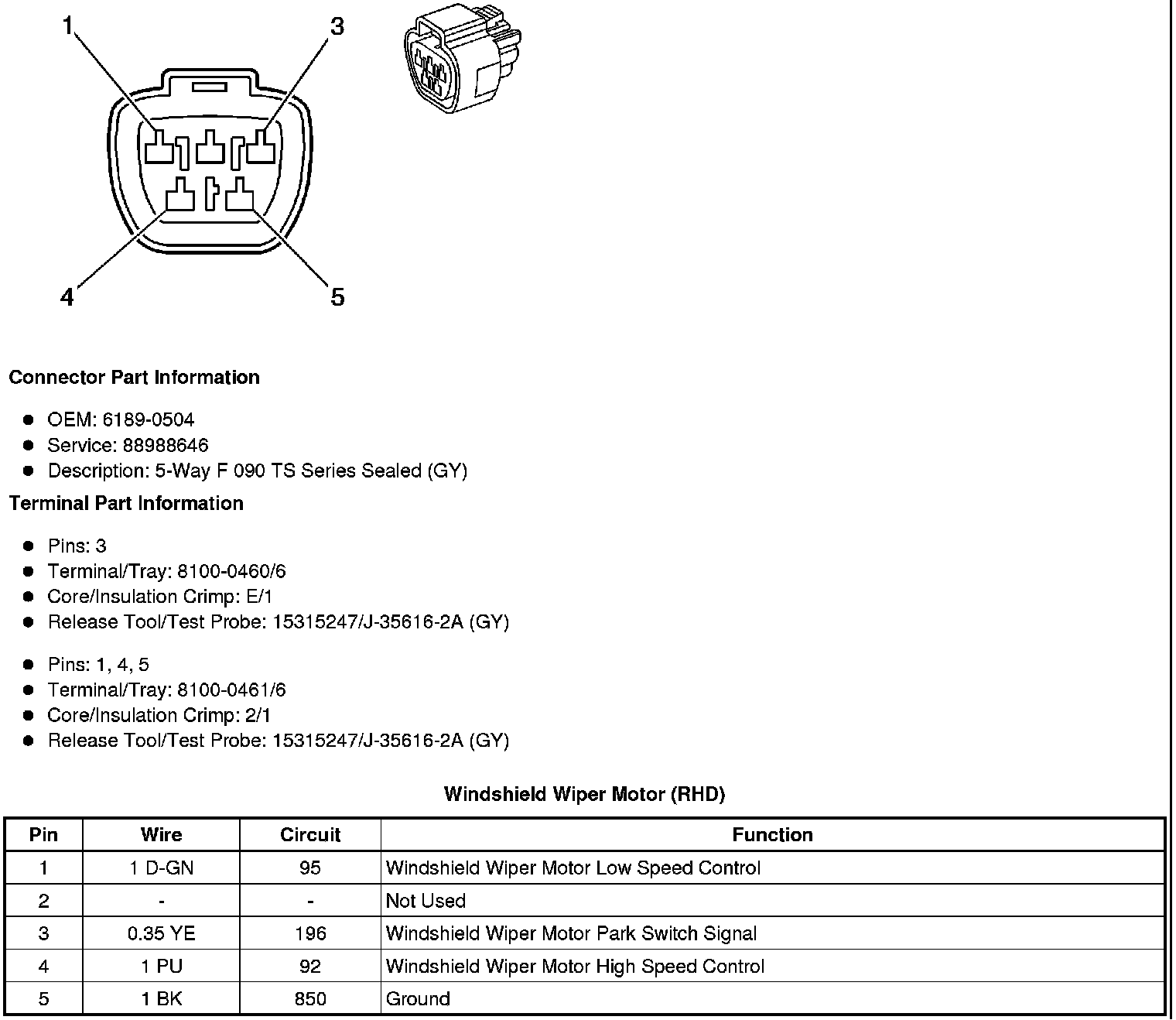

Windshield Wiper Motor (RHD)

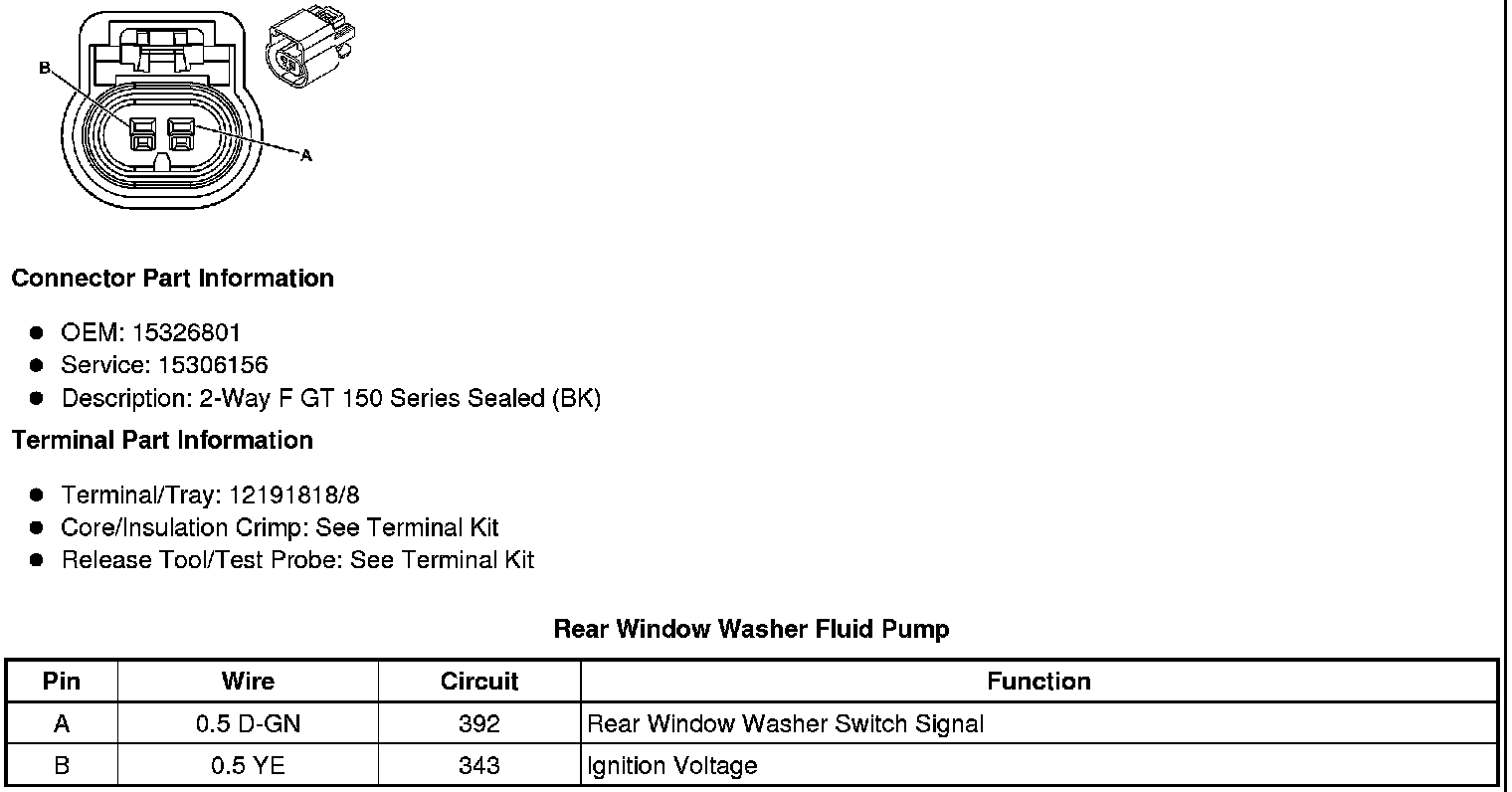

Rear Window Washer Fluid Pump

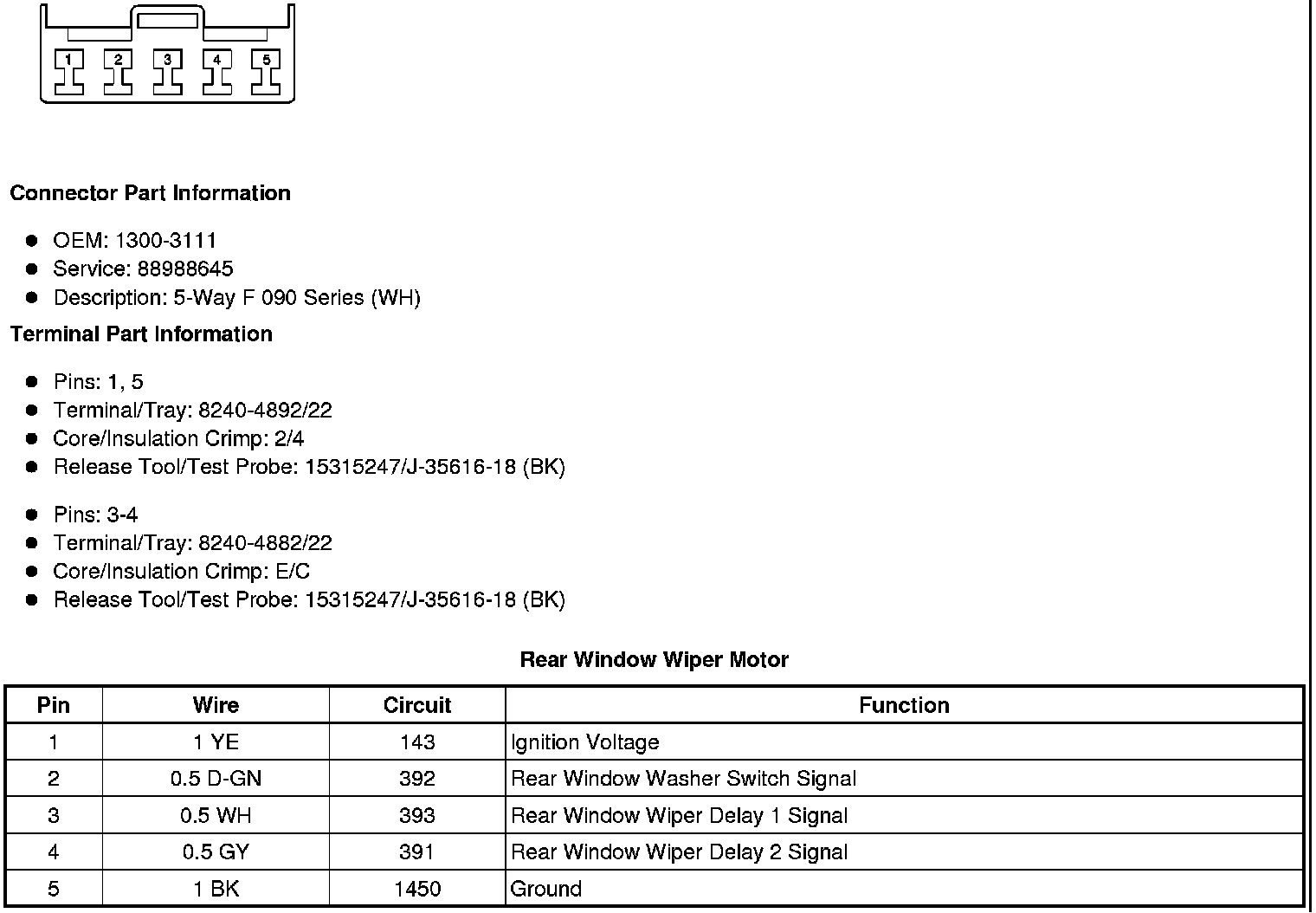

Rear Window Wiper Motor






Rear Window Wiper/Washer Switch
