Starting and Charging

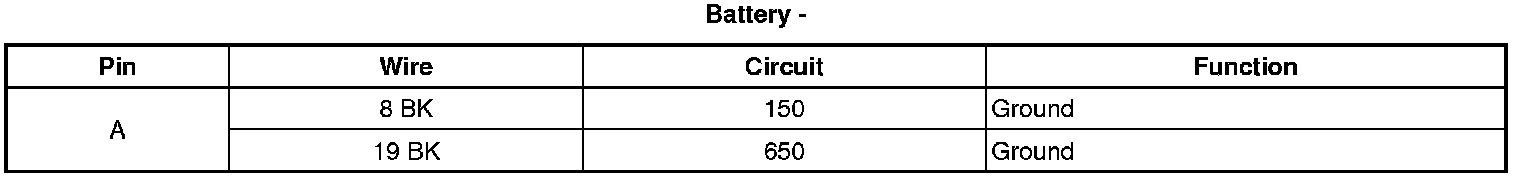

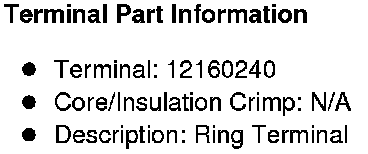

Battery -

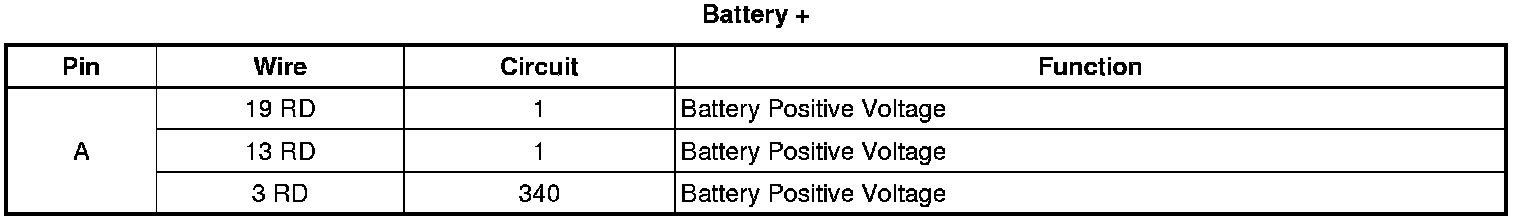

Battery +

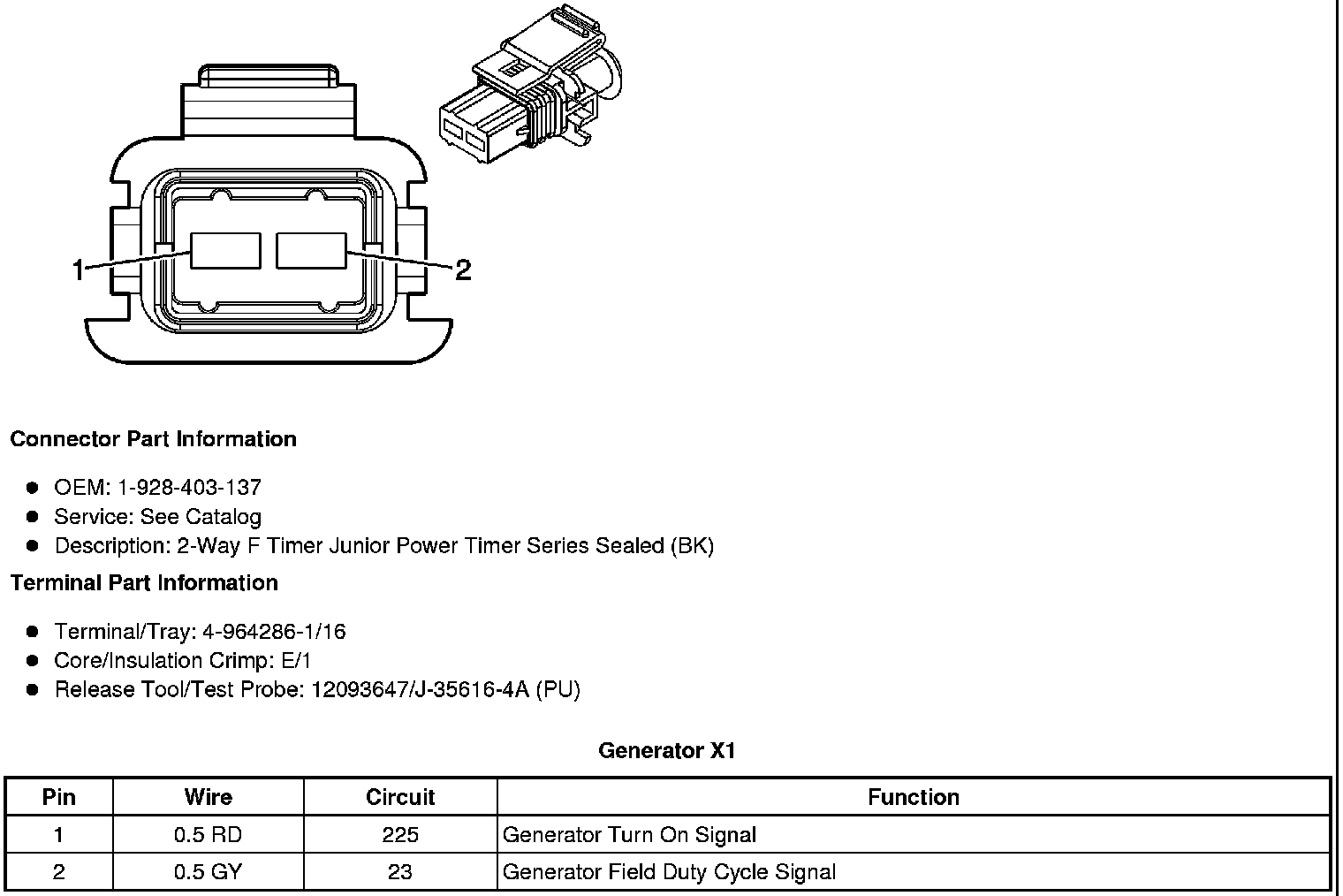

Generator X1

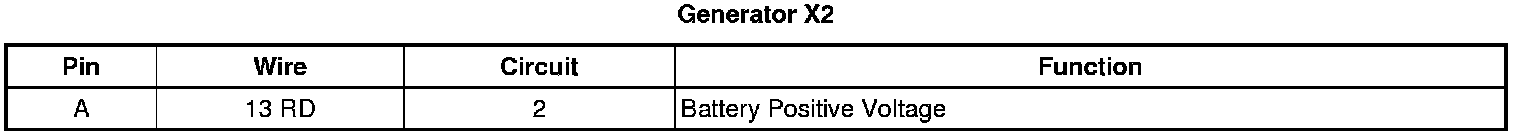

Generator X2

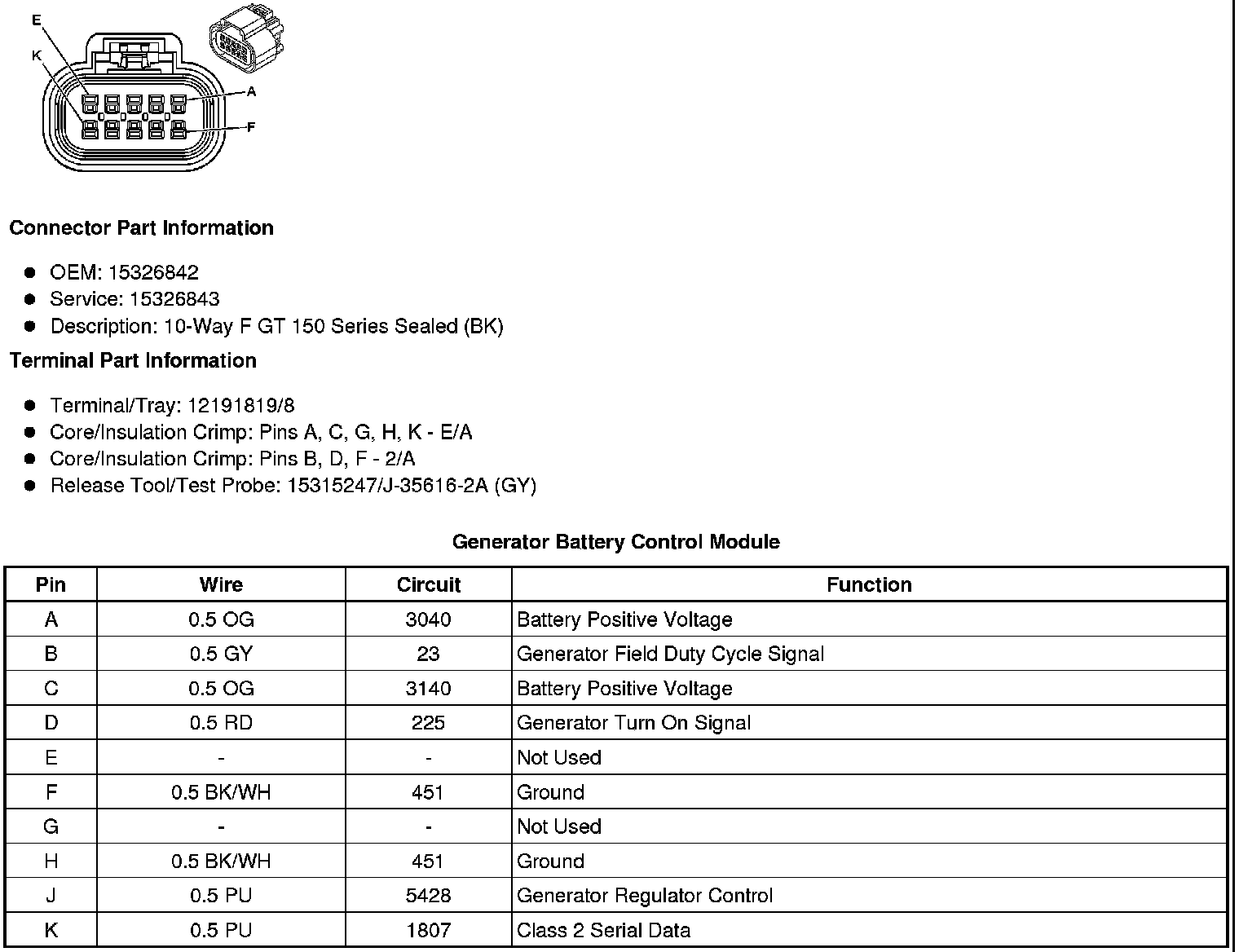

Generator Battery Control Module





Ignition Switch

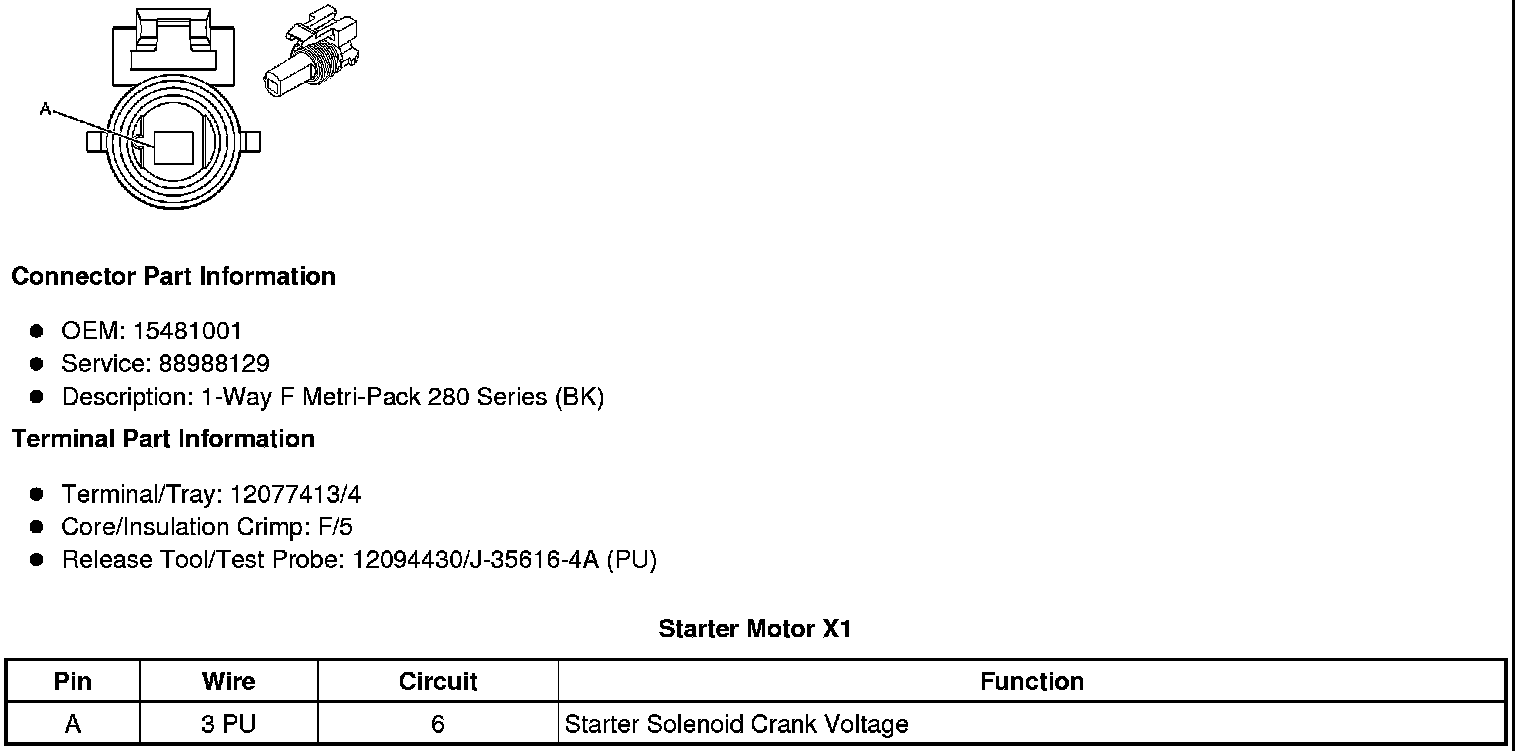

Starter Motor X1






Starter Motor X2
