Home >> Hummer >> 2008 >> H3 L5-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Component Connector End Views >> Heating and Air Conditioning

Heating and Air Conditioning

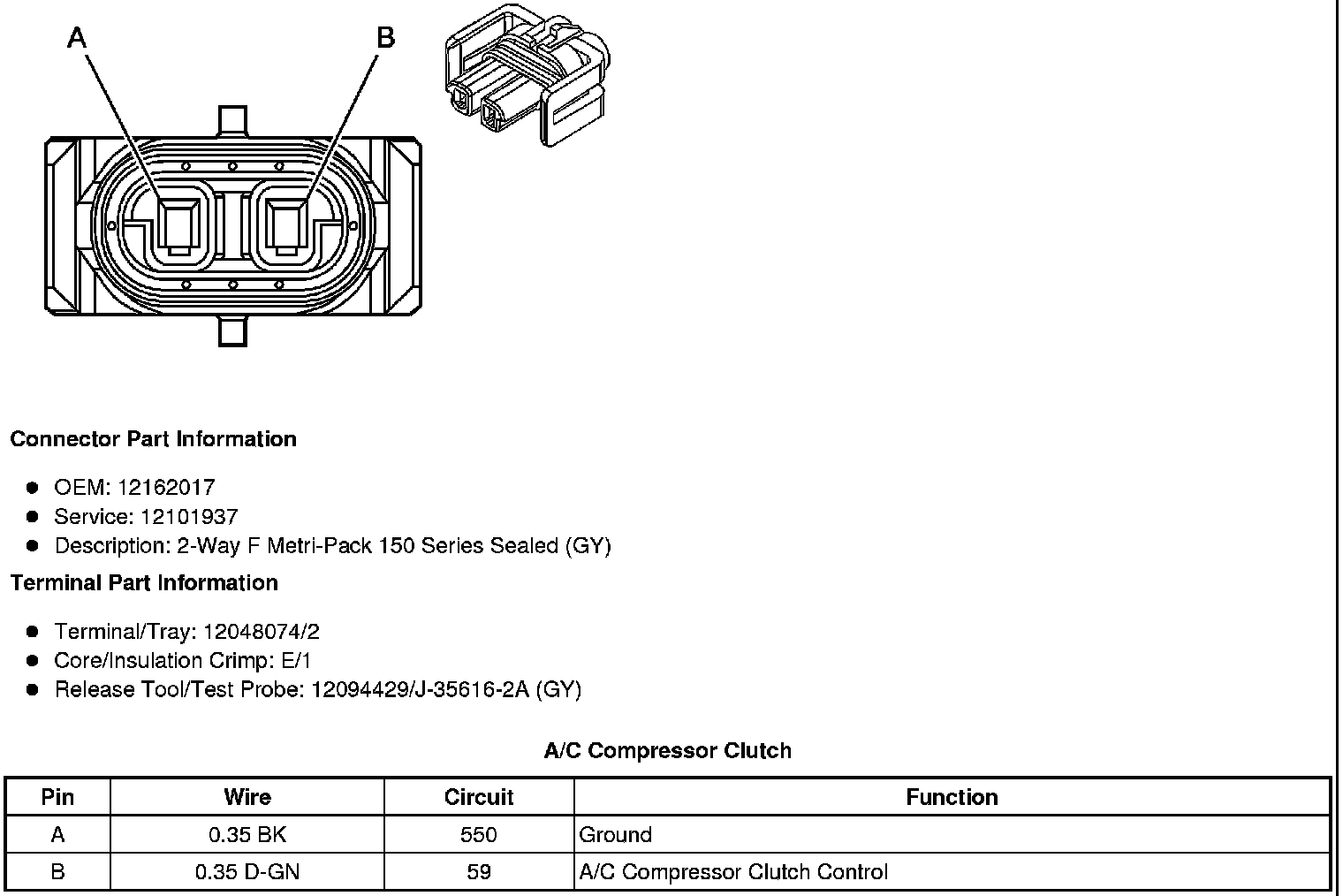

A/C Compressor Clutch

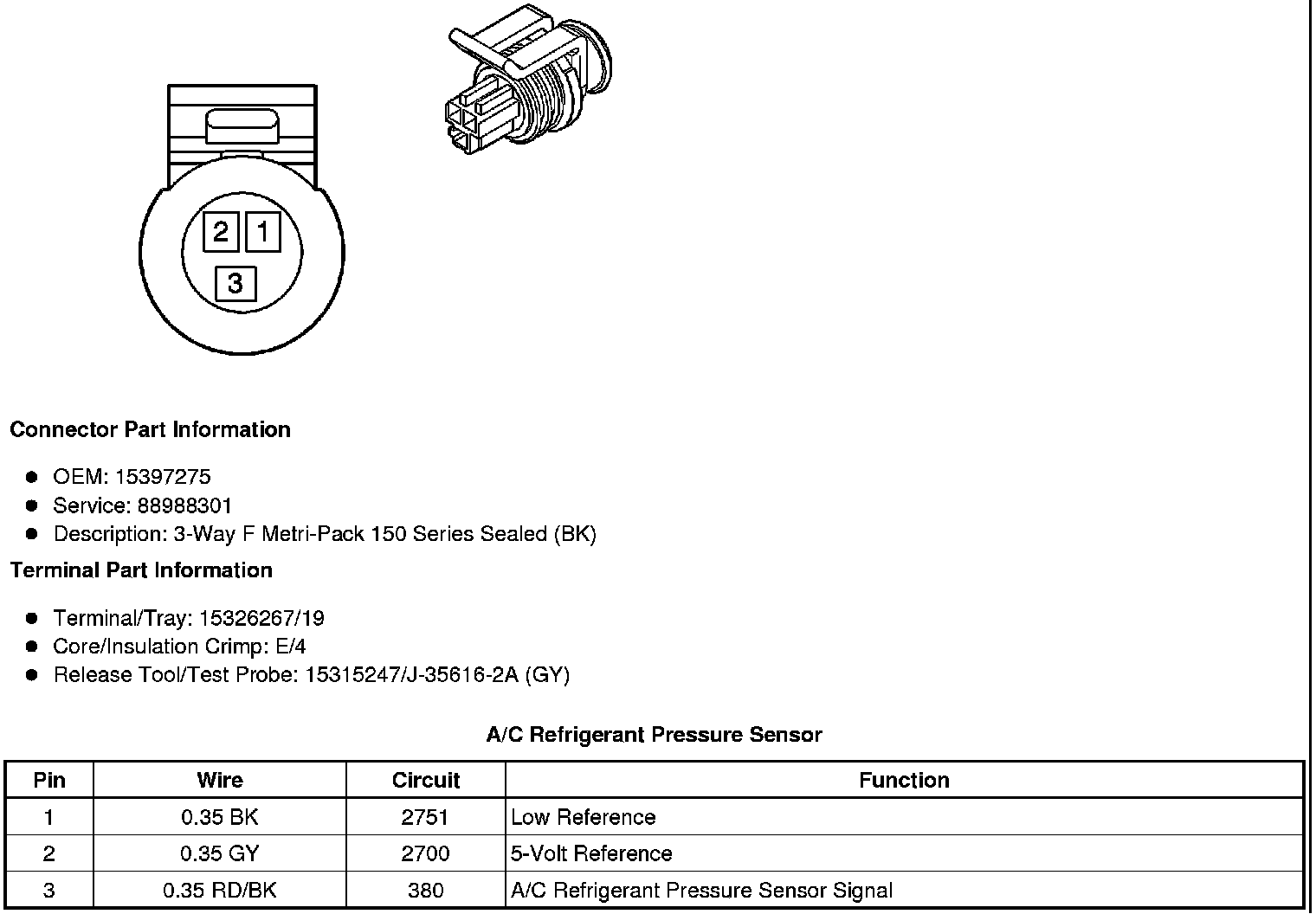

A/C Refrigerant Pressure Sensor

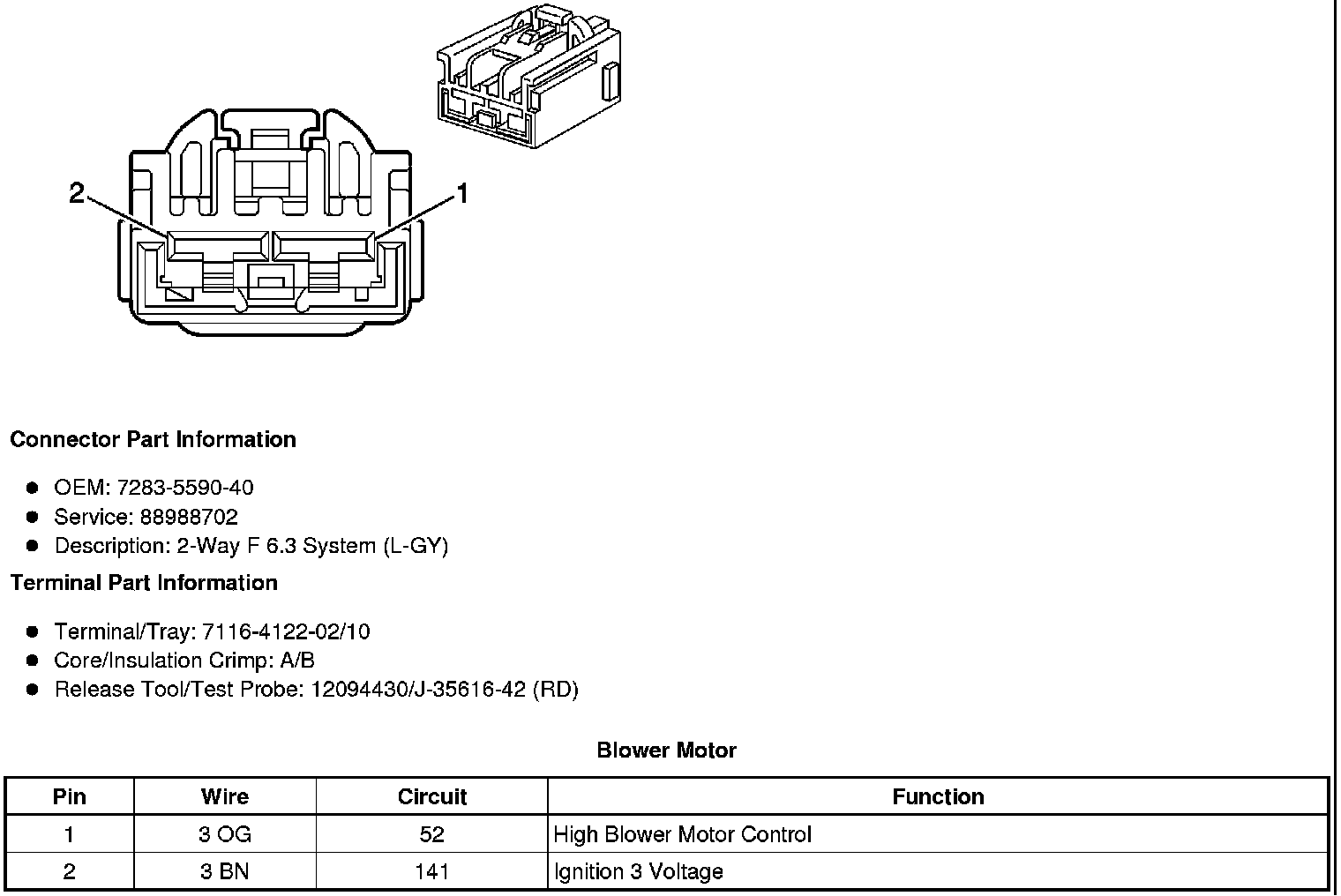

Blower Motor

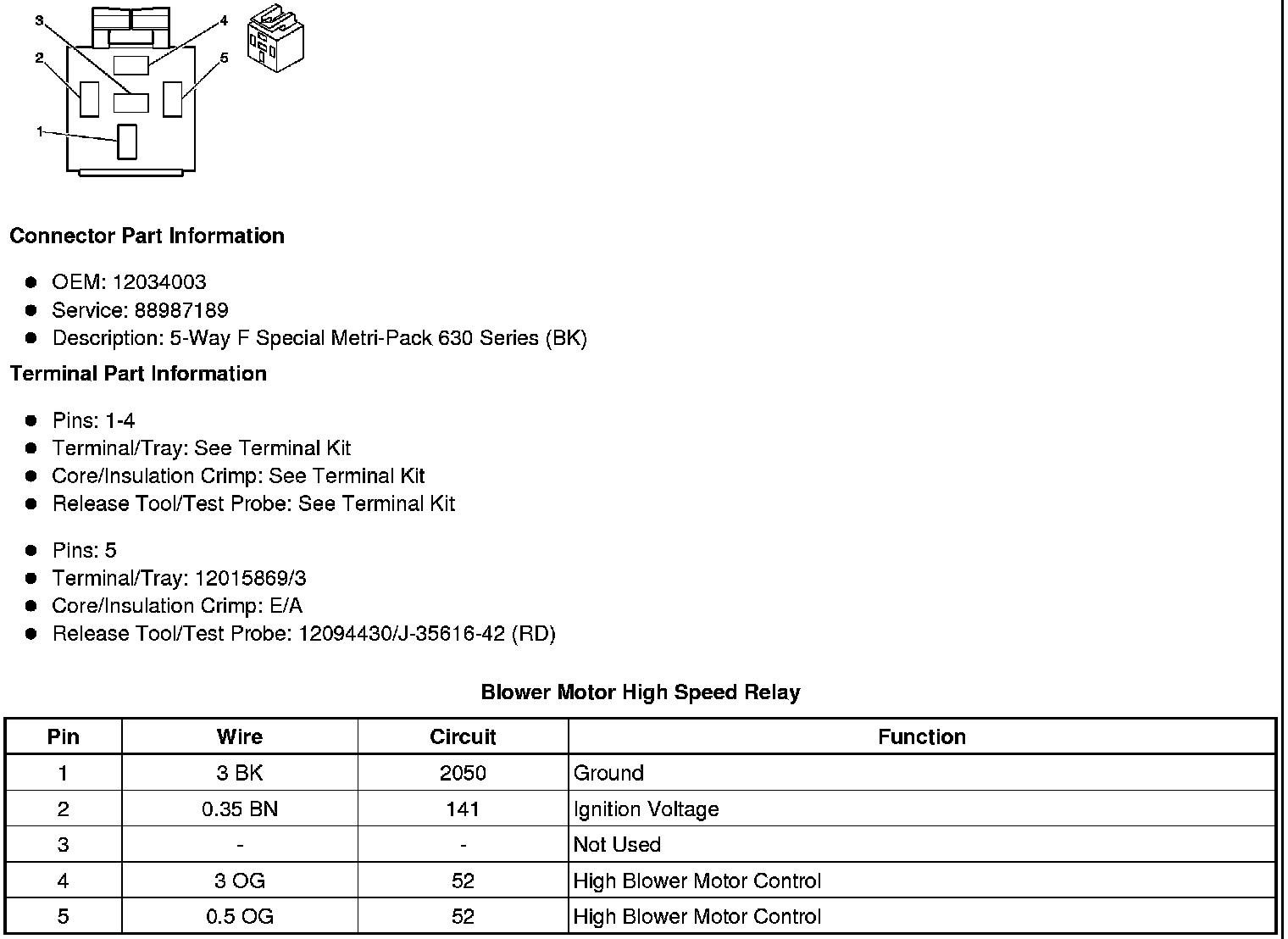

Blower Motor High Speed Relay

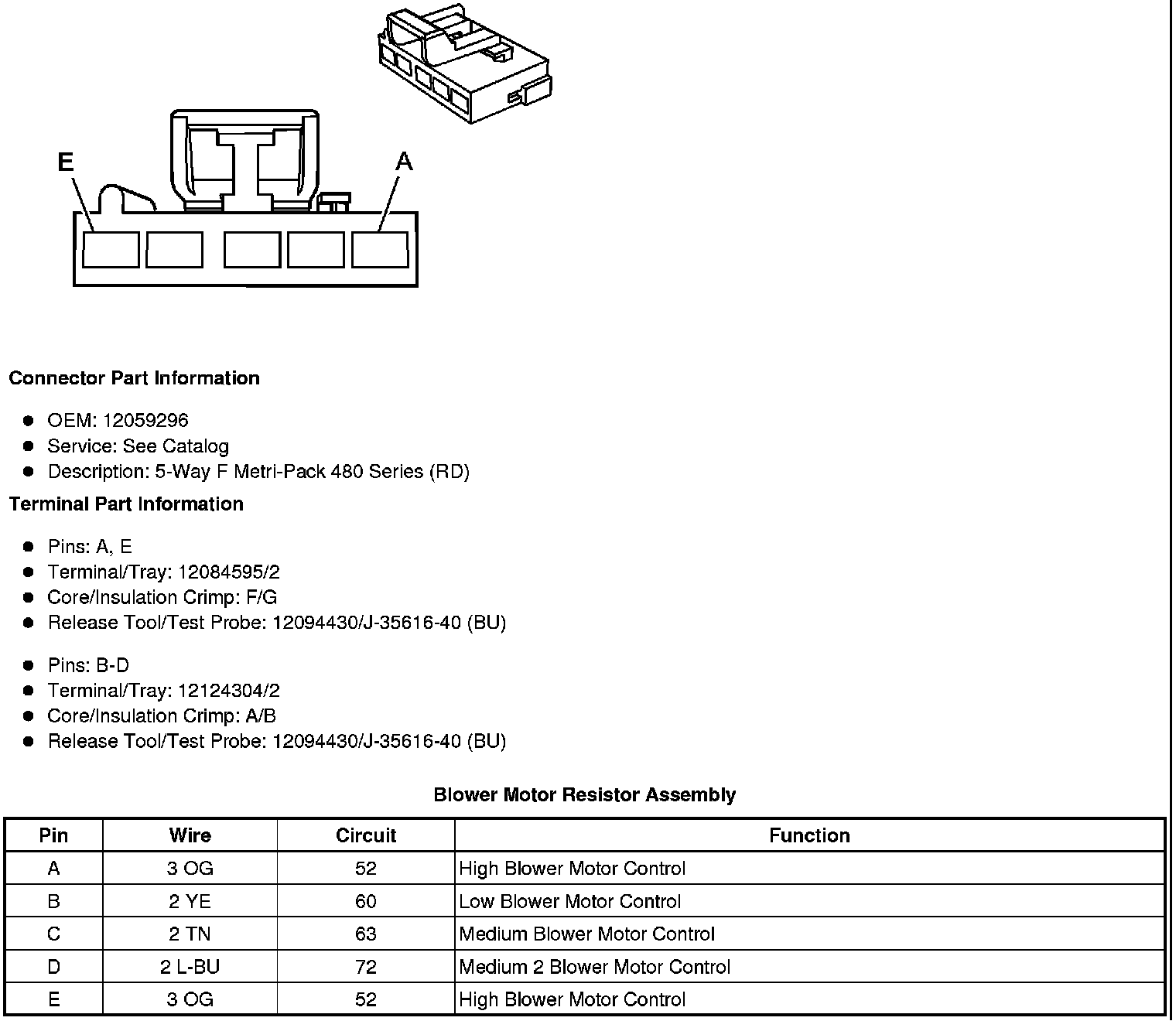

Blower Motor Resistor Assembly





HVAC Control Module X1






HVAC Control Module X2






HVAC Control Module X3

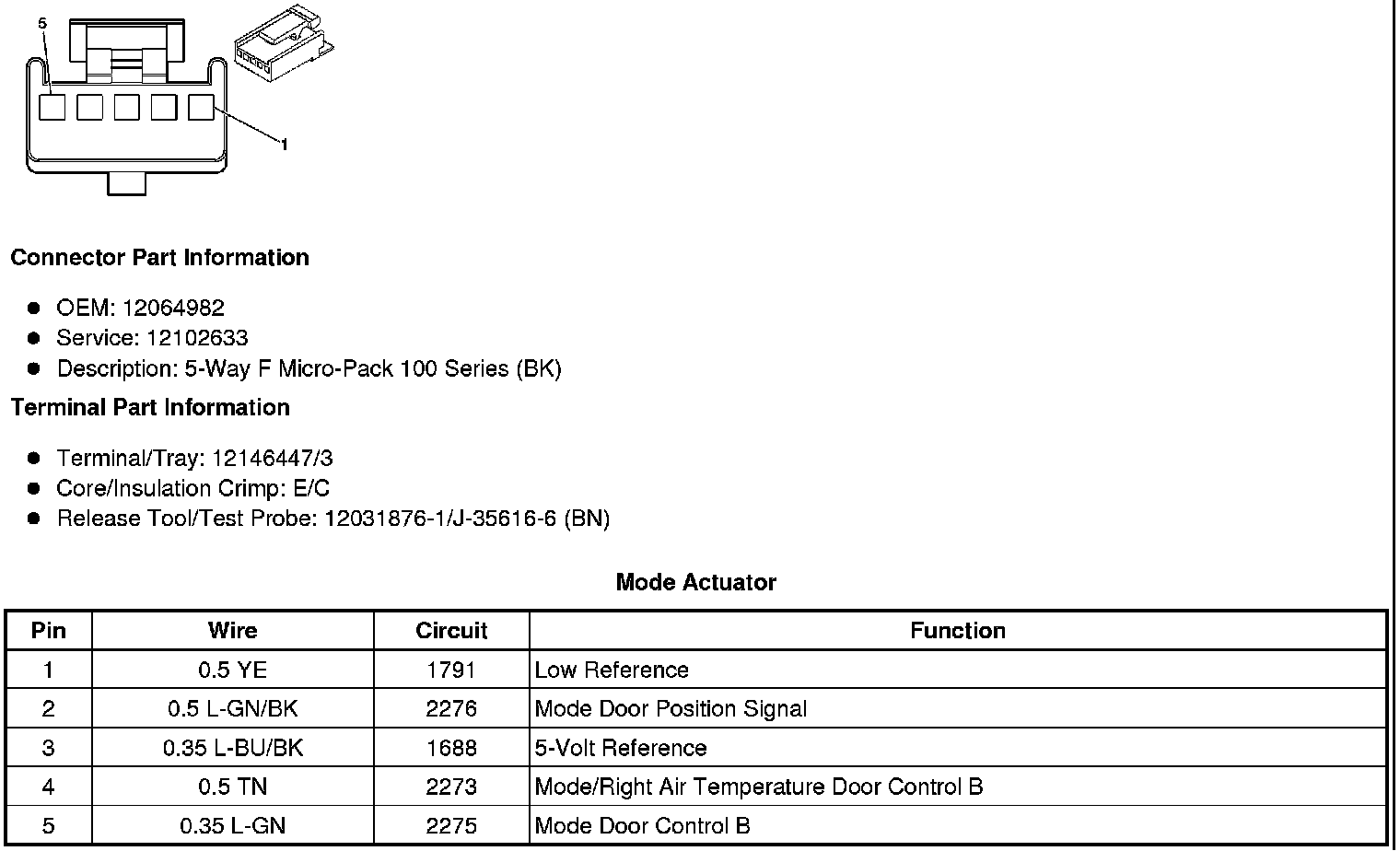

Mode Actuator

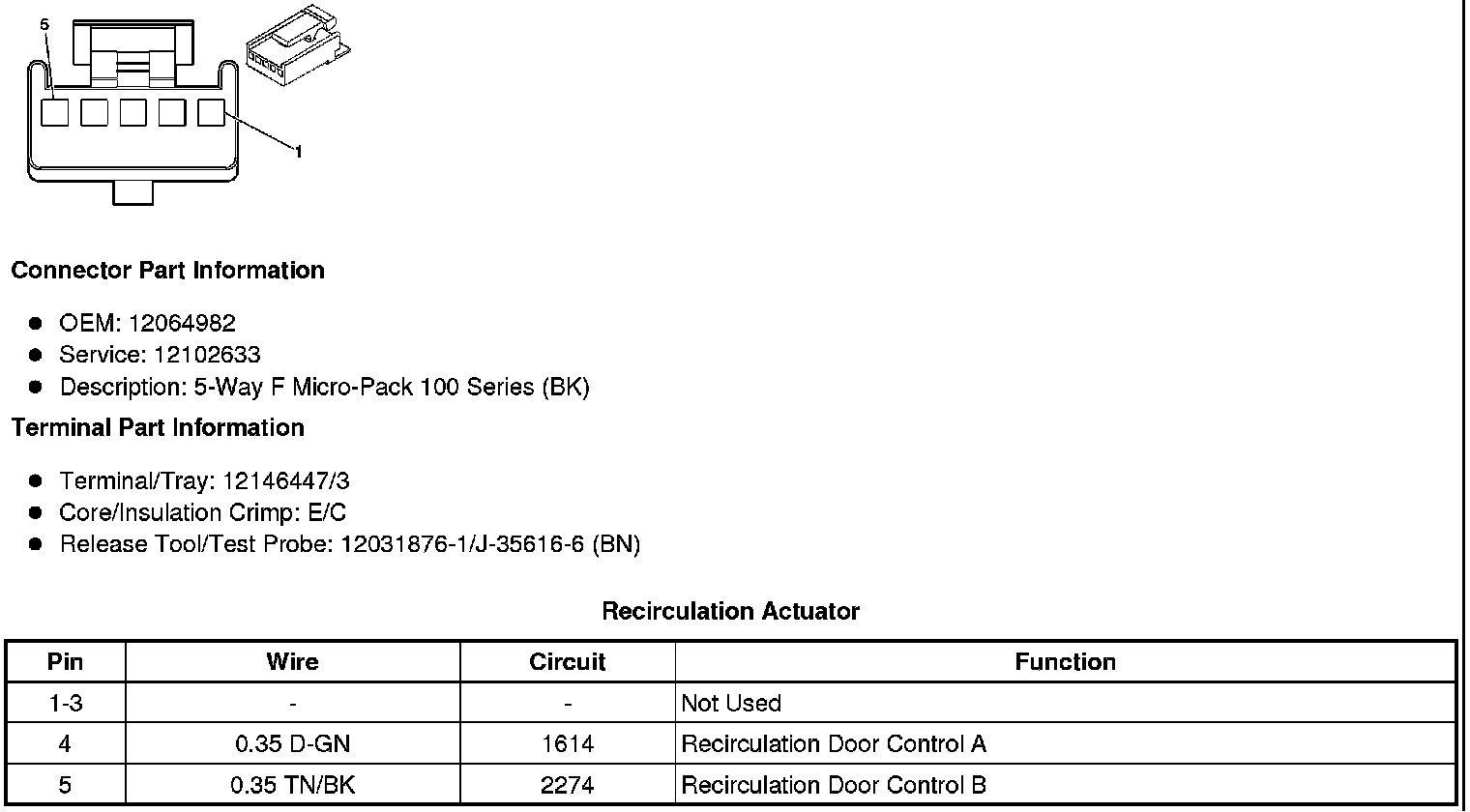

Recirculation Actuator
