Hummer
>>
2008
>>
H3 L5-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Battery
>>
Battery Control Module
Battery Control Module
Component Connector End Views

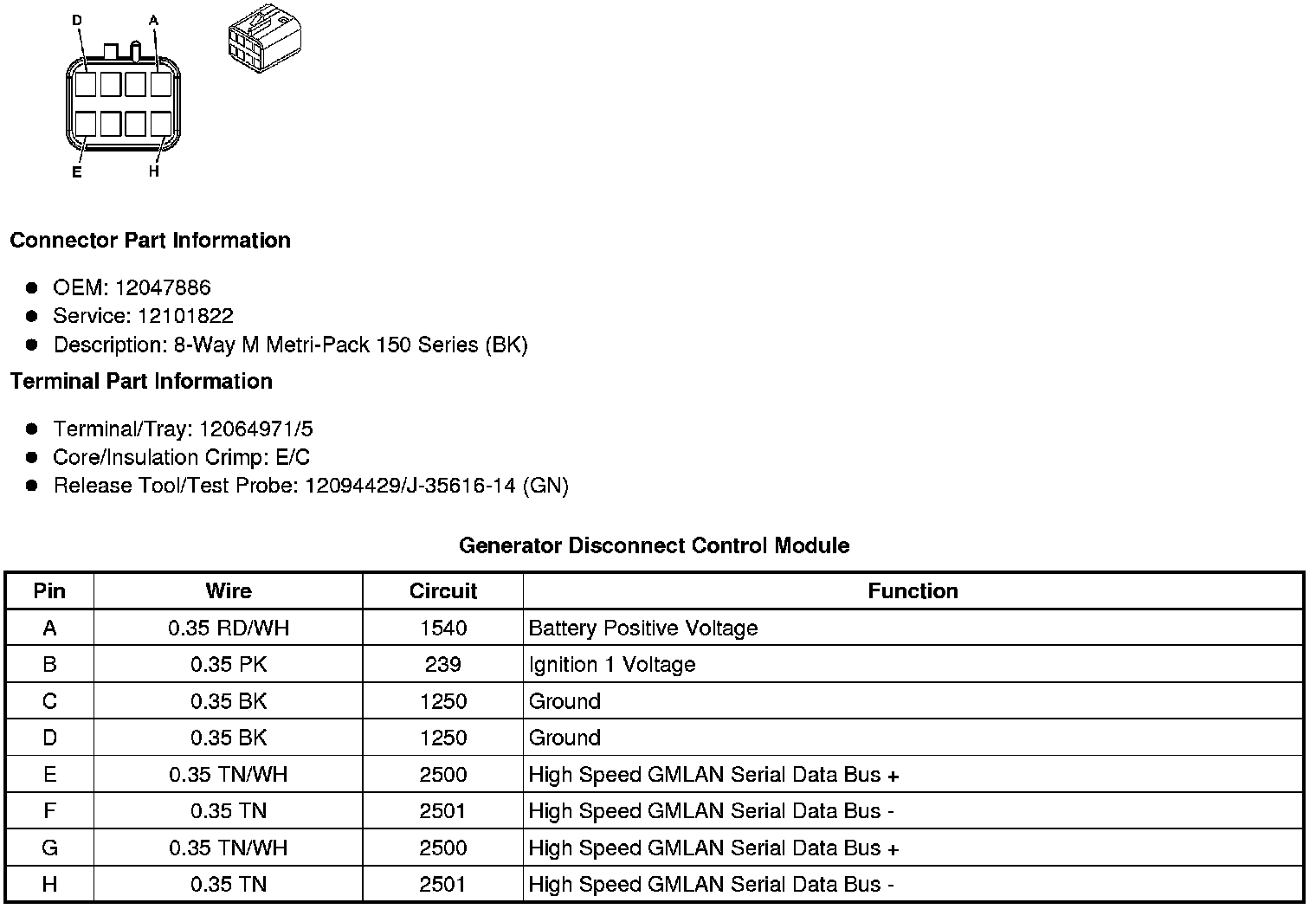

Generator Disconnect Control Module
