A - Z Index

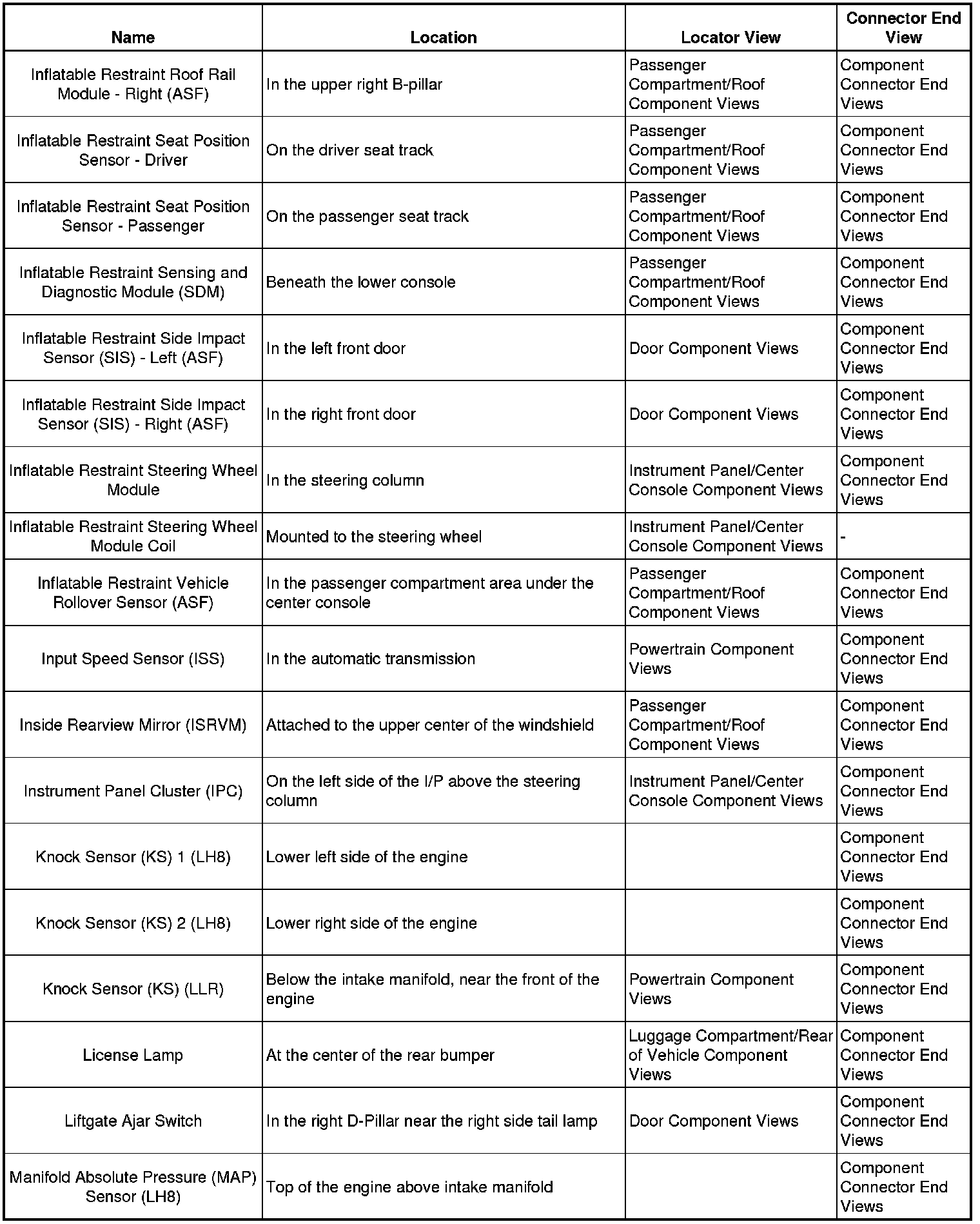

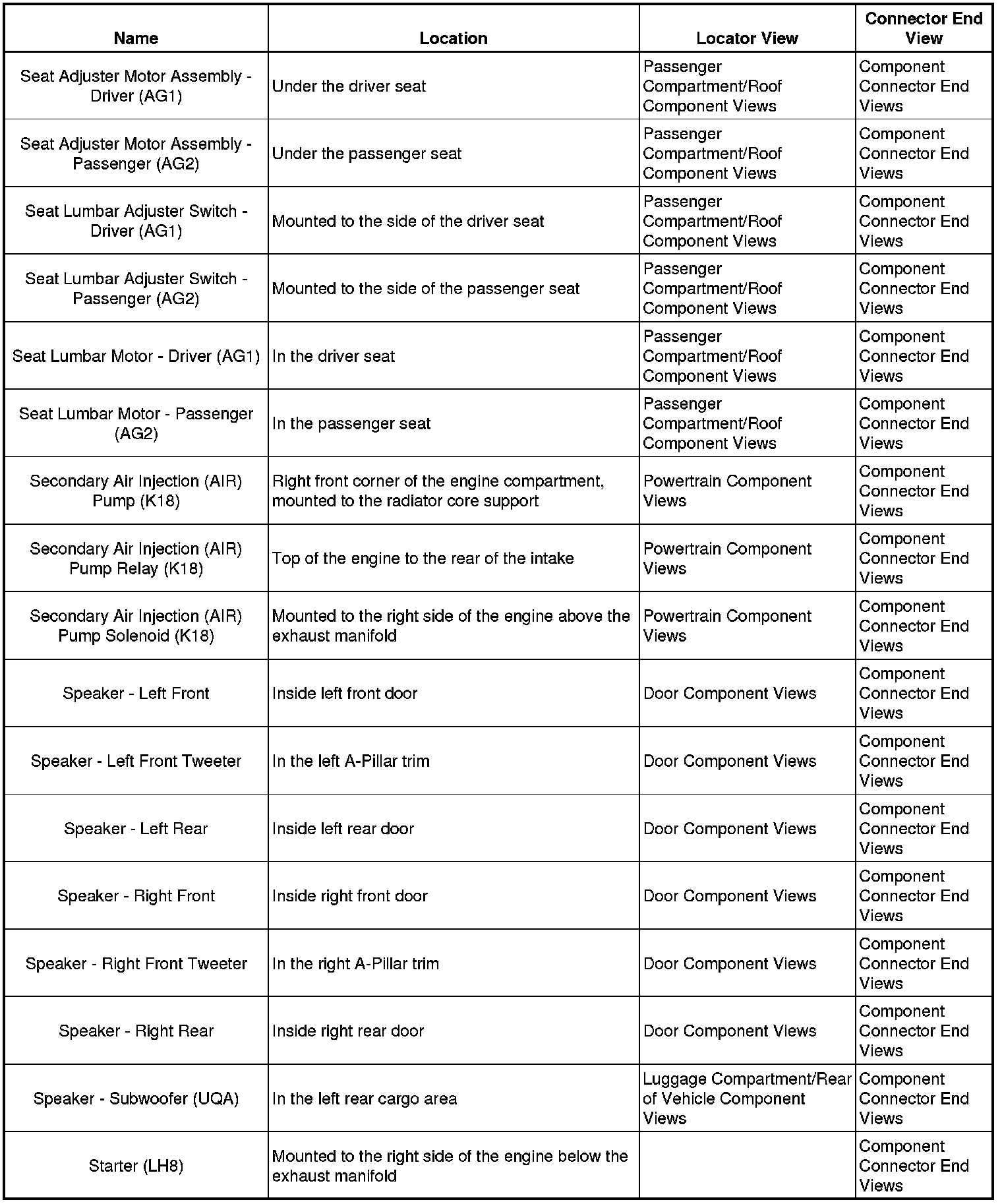

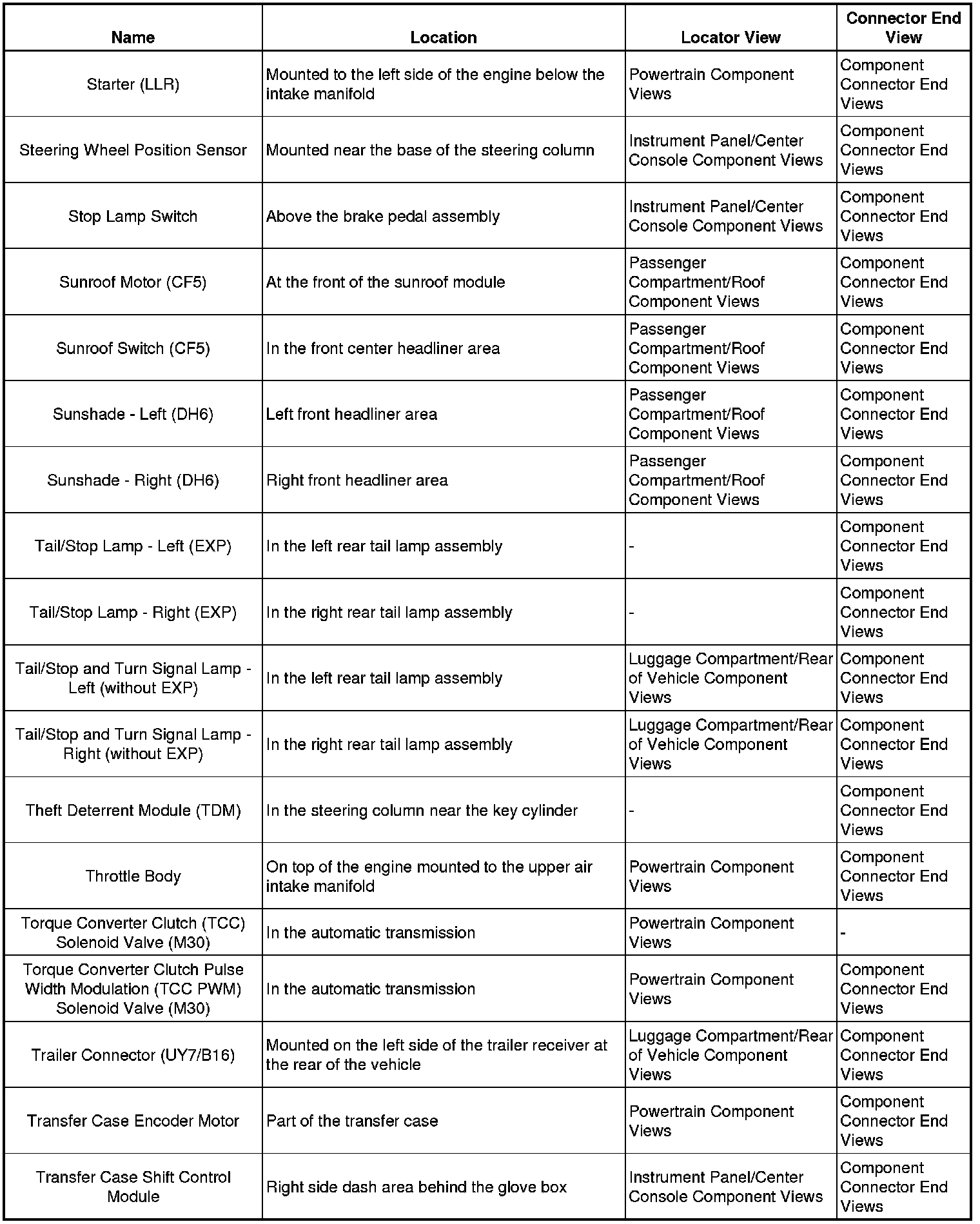

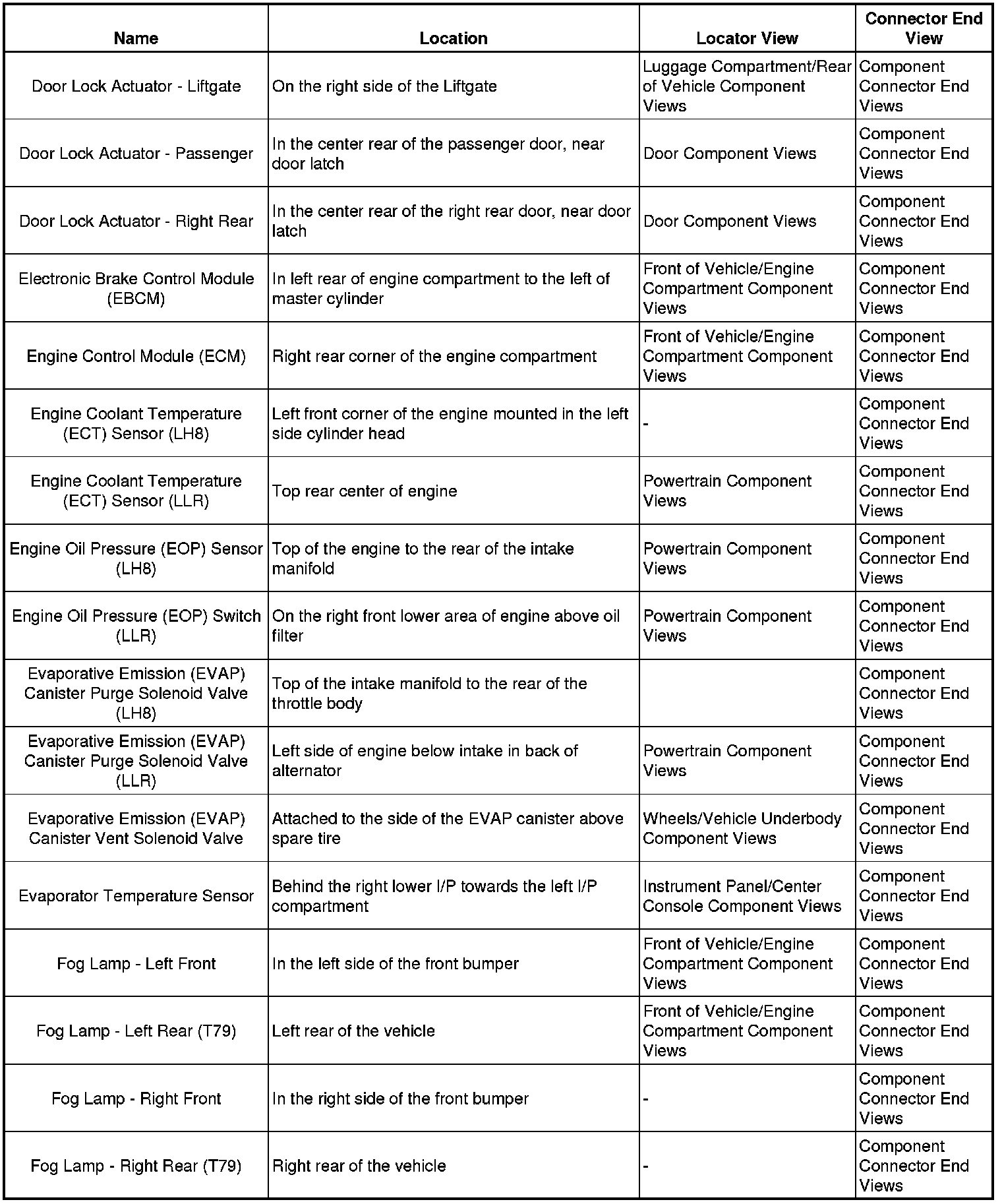

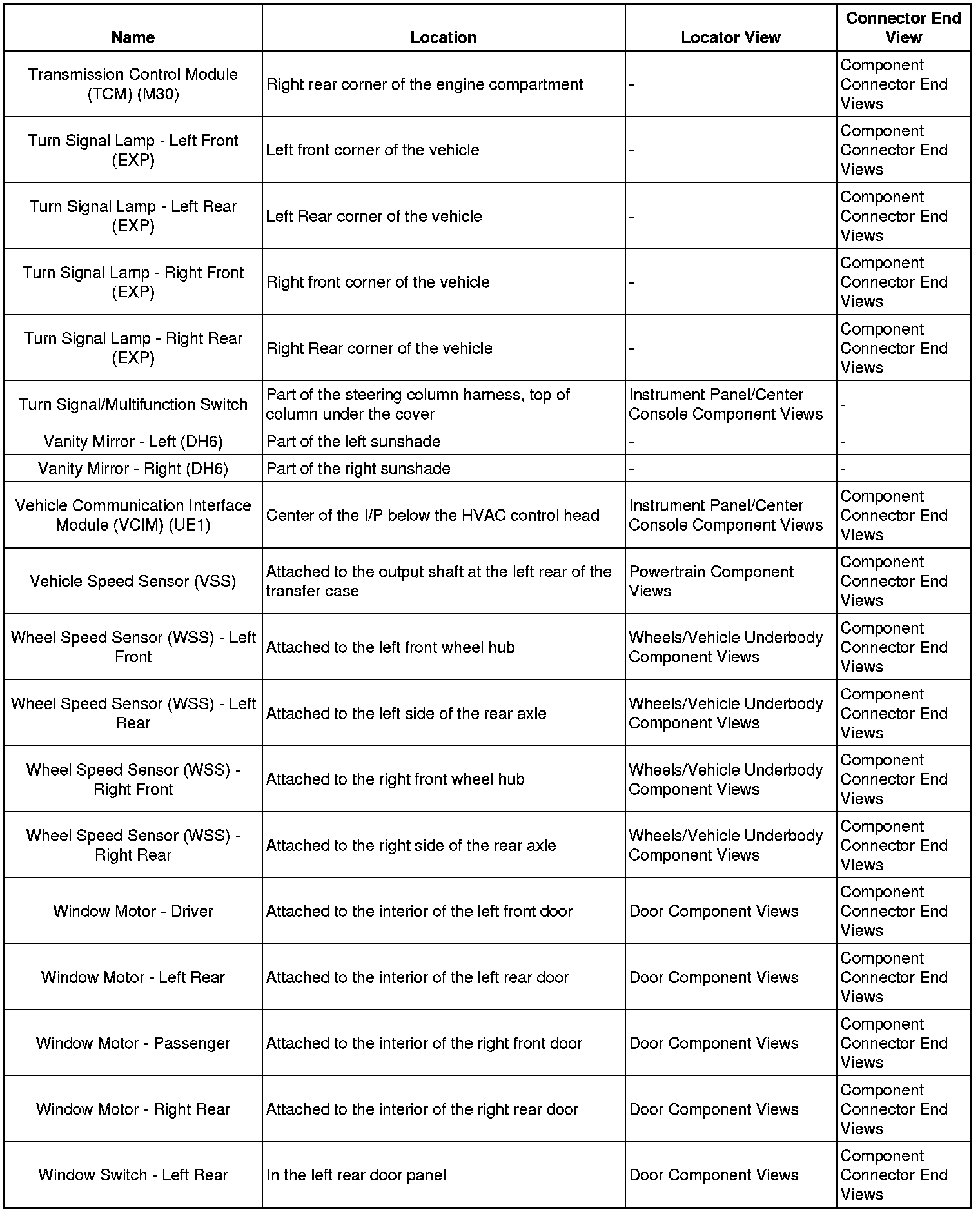

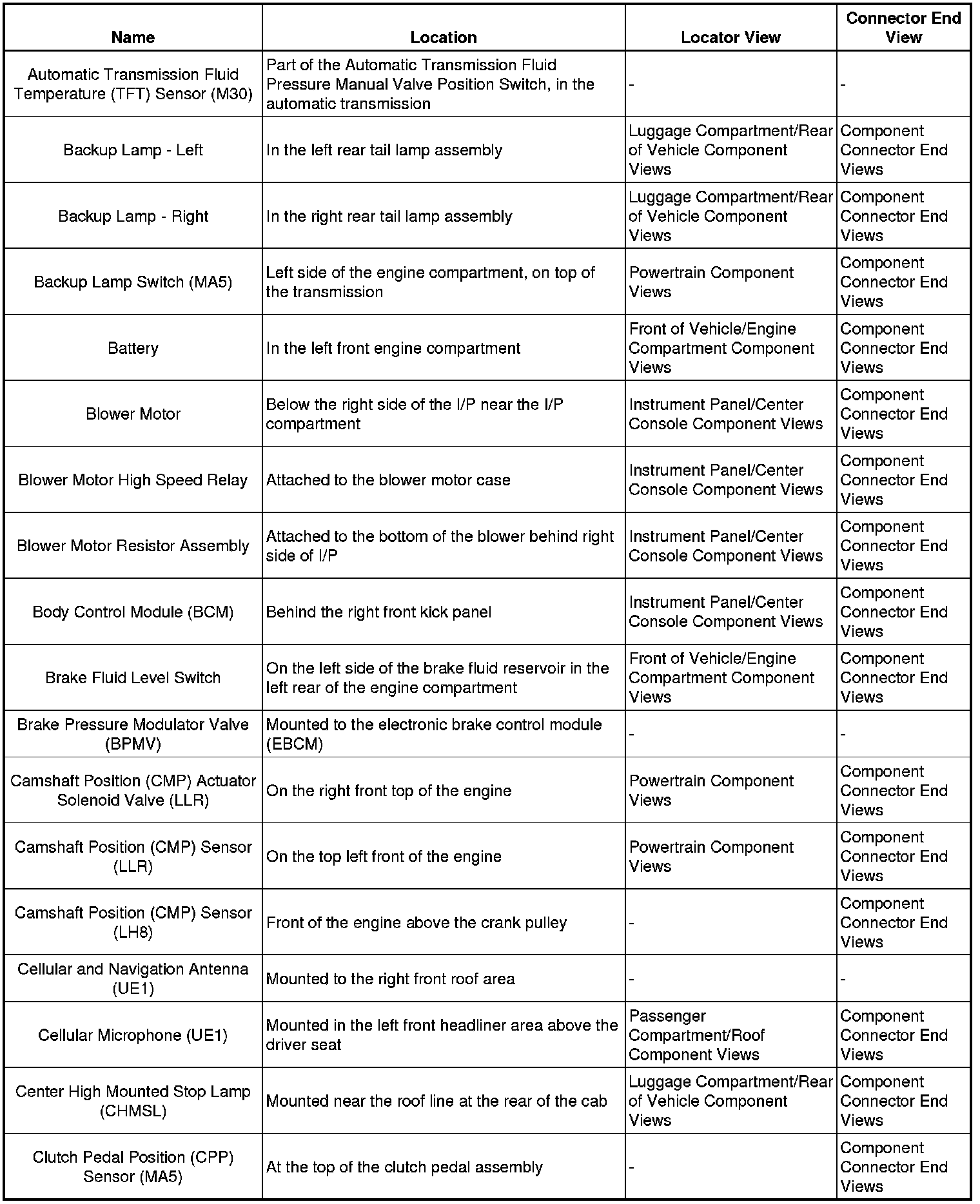

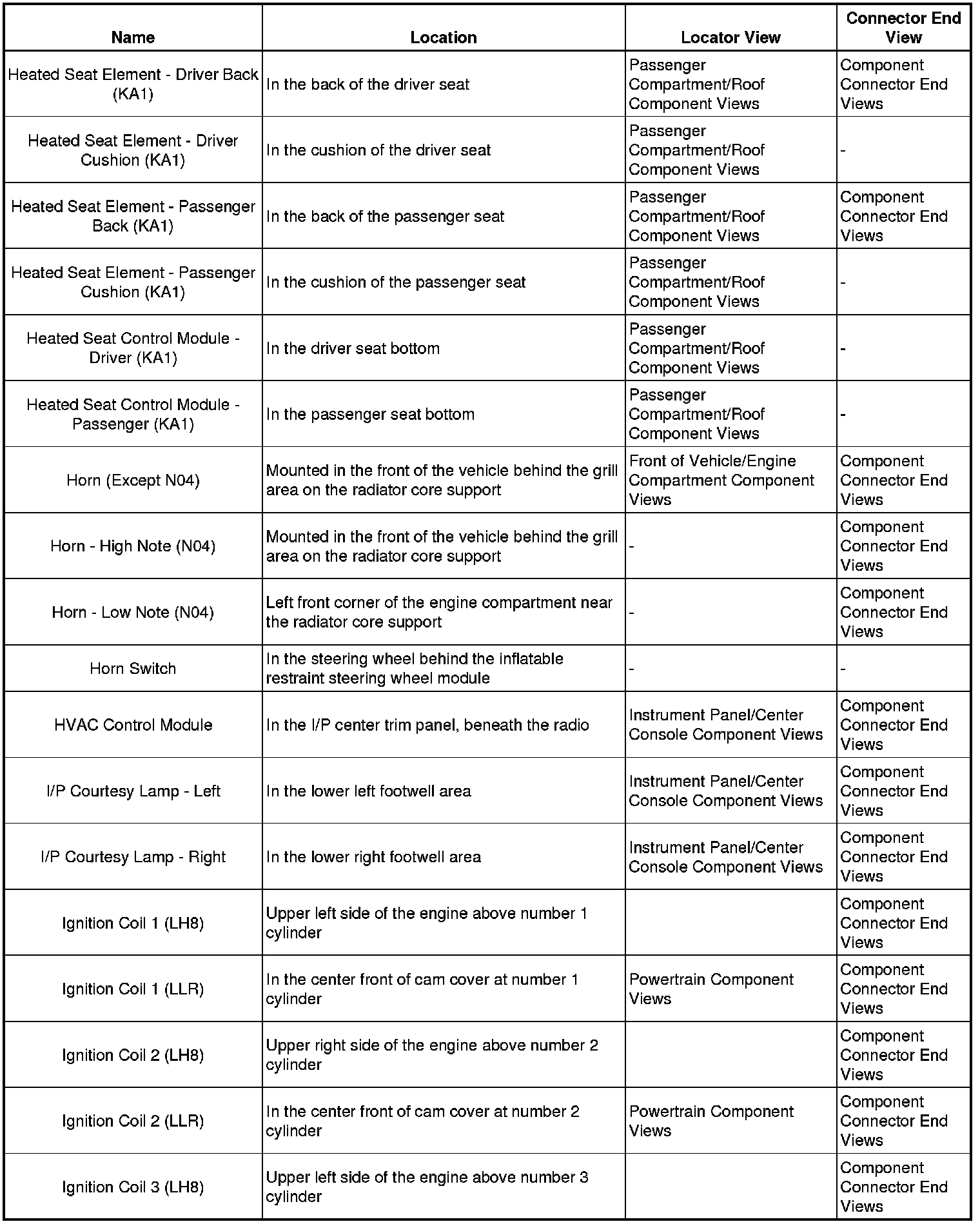

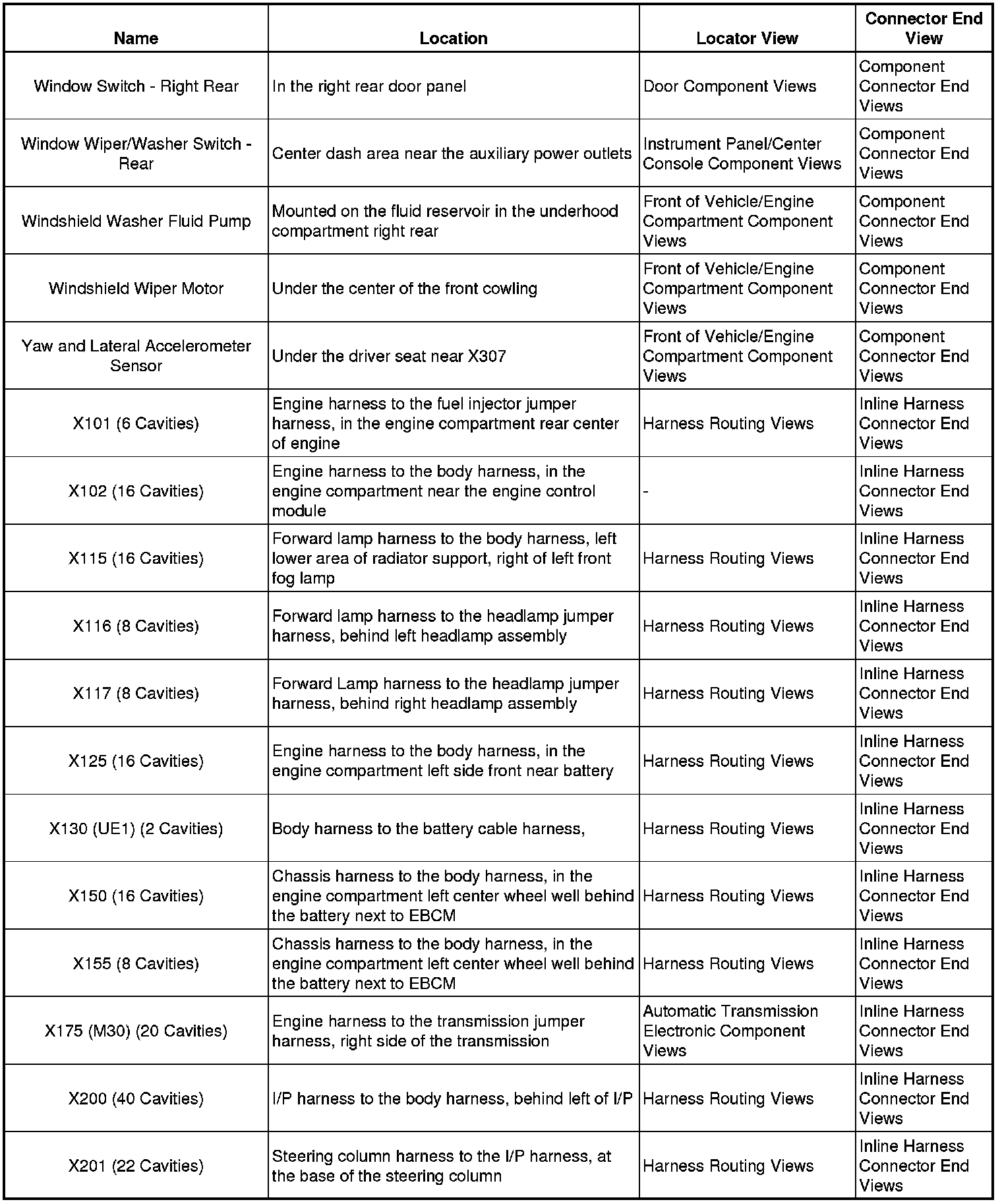

Master Electrical Component List

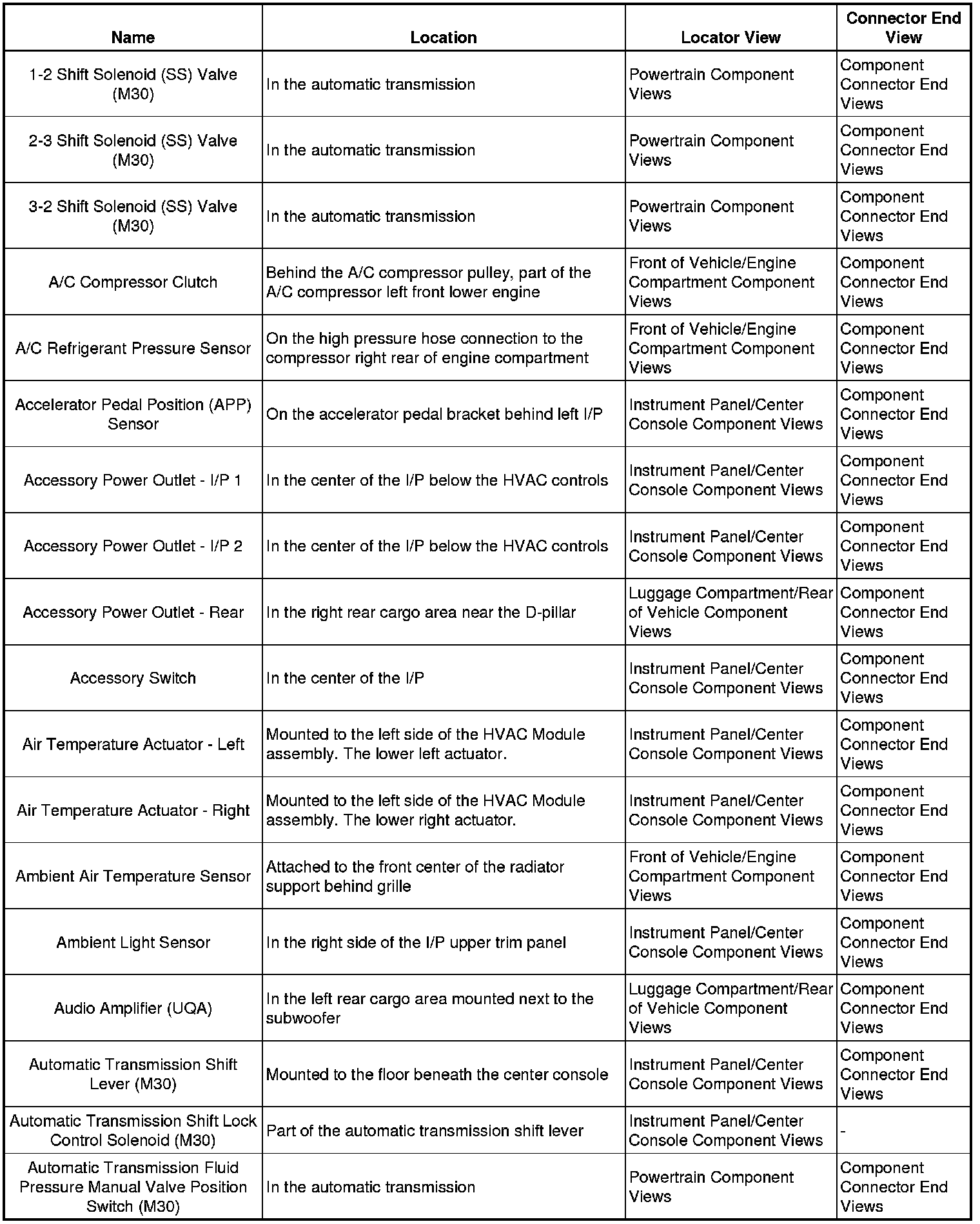

1 - 2 Shift Sol - Au:
Au - Cl:

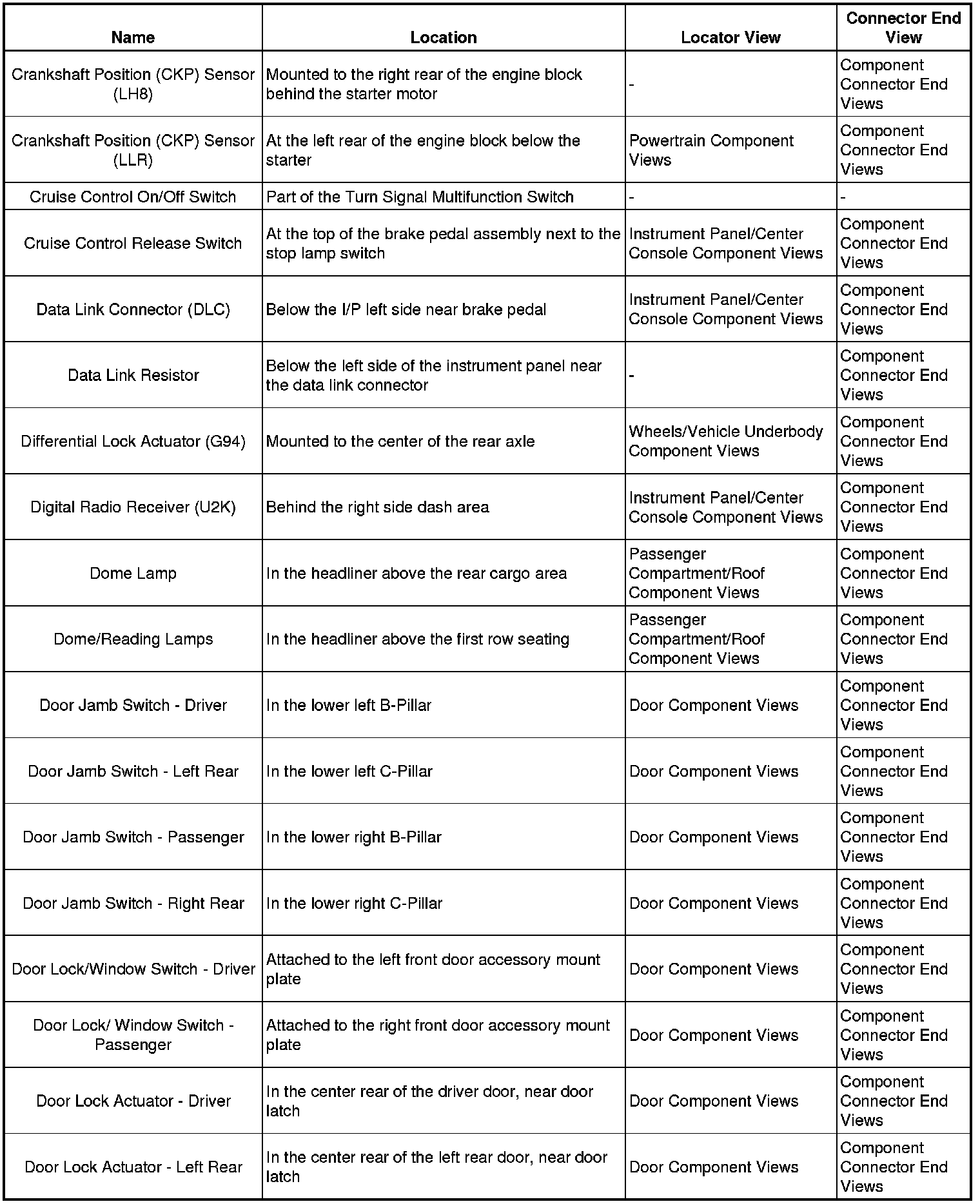

Cr - Do:
Do - Fo:

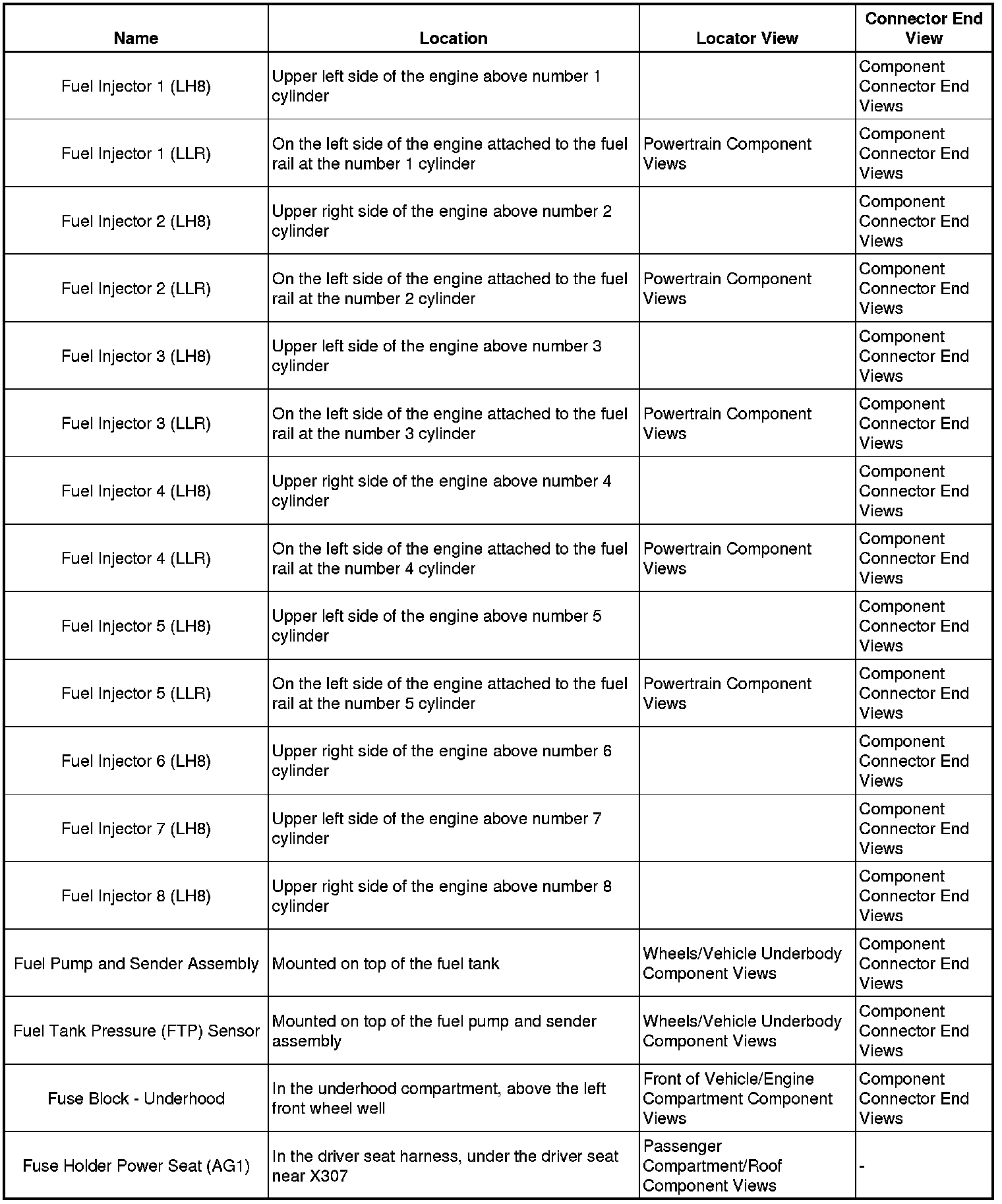

Fue - Fus:
Ga - He:
He - Ig:

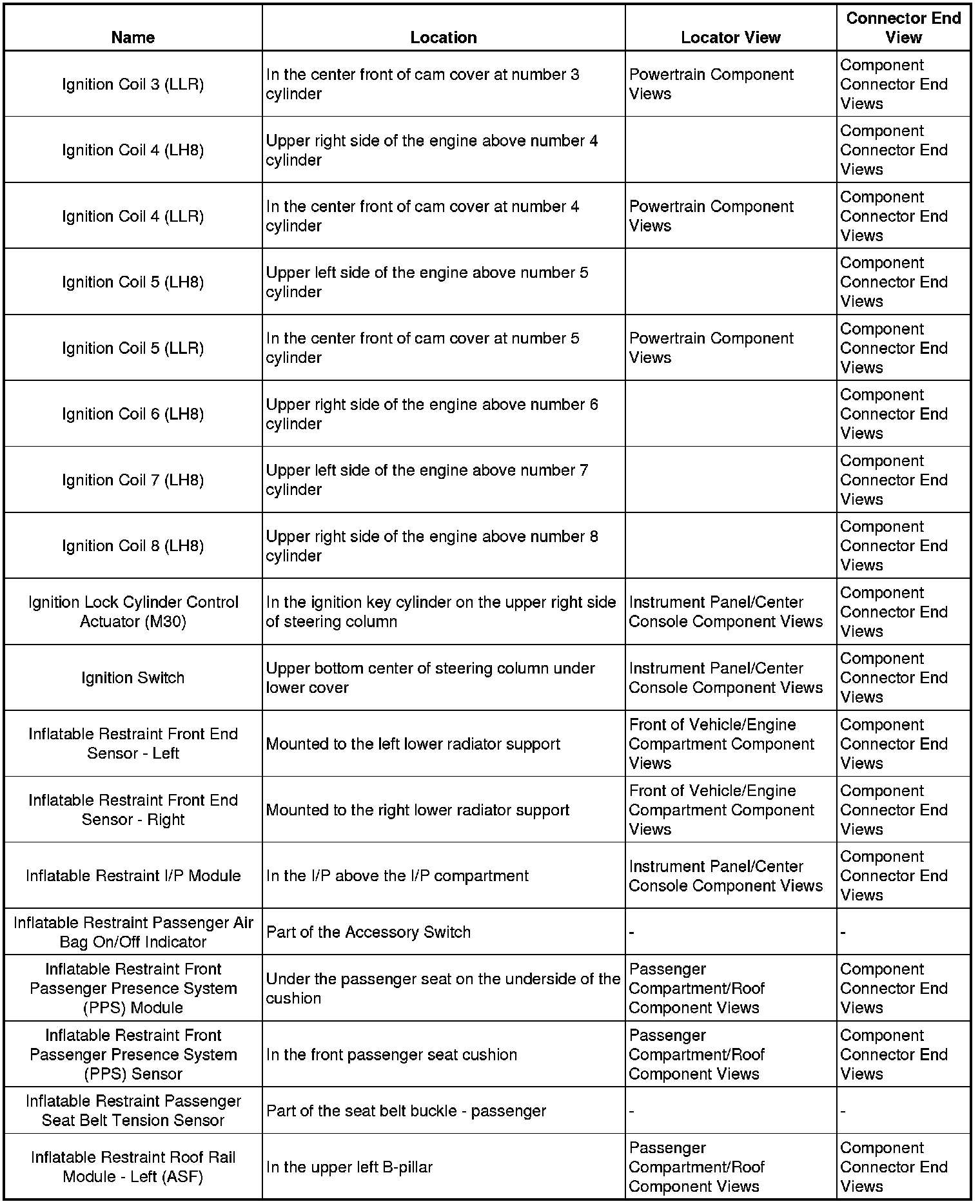

Ig - In:
In - Ma:
Ma - Re:

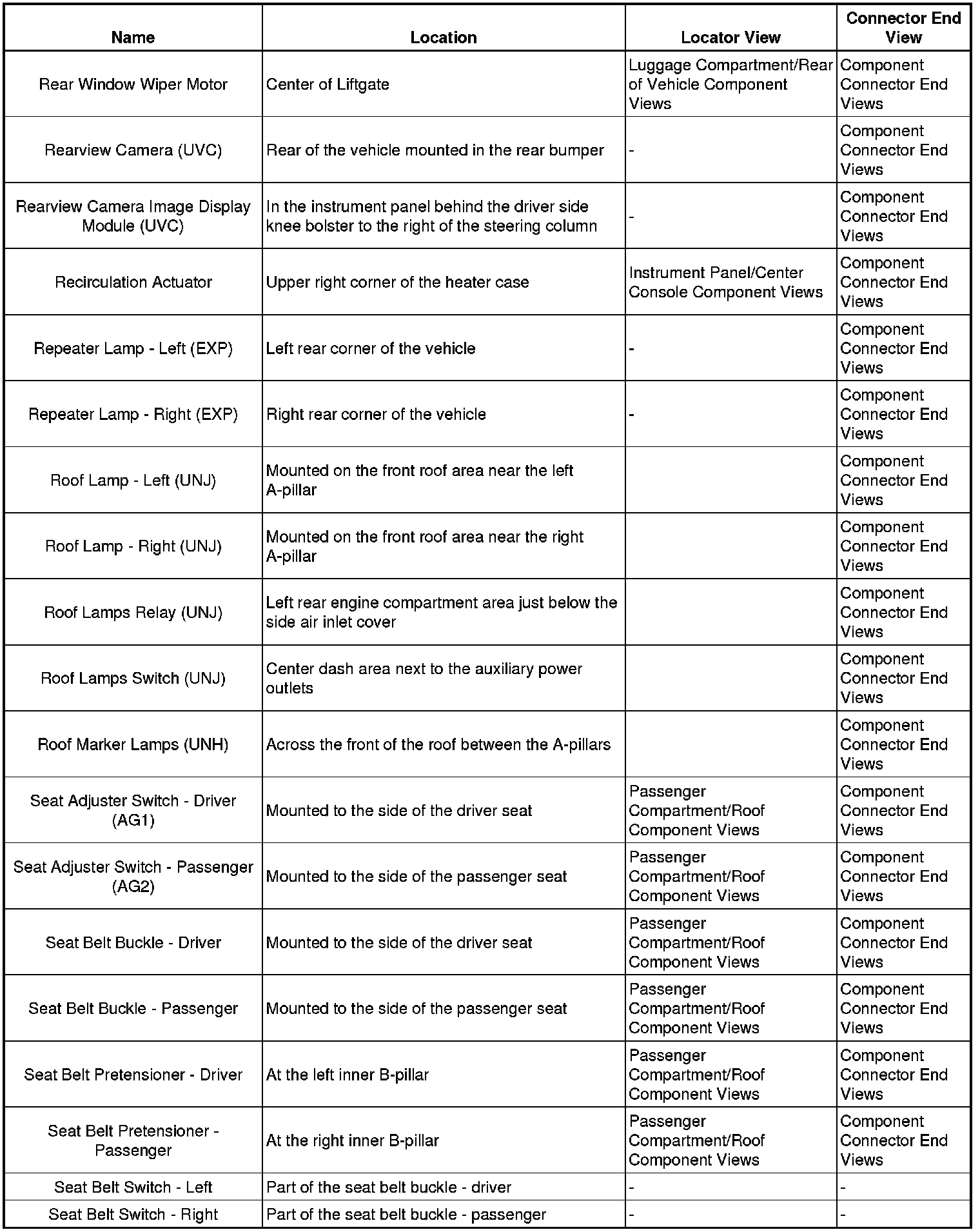

Re - Se:
Se - St:
St - Tr:
Tr - Wi:
Wi - Ya:
