Parking Brake Lever Replacement (RHD)

Parking Brake Lever Replacement (RHD)

Removal Procedure

1. Release the park brake lever.




2. Remove the driver knee bolster bracket. Refer to Driver Knee Bolster Bracket Replacement (Left Hand Drive) (Driver Knee Bolster Bracket Replacement (Left Hand Drive))Driver Knee Bolster Bracket Replacement (Right Hand Drive) (Driver Knee Bolster Bracket Replacement (Right Hand Drive)) .
3. Remove the park brake cable adjuster nut (1).




4. Remove the park brake cable retaining clip (1).
5. Remove the front park brake cable from the park brake lever and position aside.




6. Remove the instrument panel center trim panel. Refer to Instrument Panel Center Trim Panel Replacement (Left Hand Drive) (Instrument Panel Center Trim Panel Replacement (Left Hand Drive))Instrument Panel Center Trim Panel Replacement (Right Hand Drive) (Instrument Panel Center Trim Panel Replacement (Right Hand Drive)) .

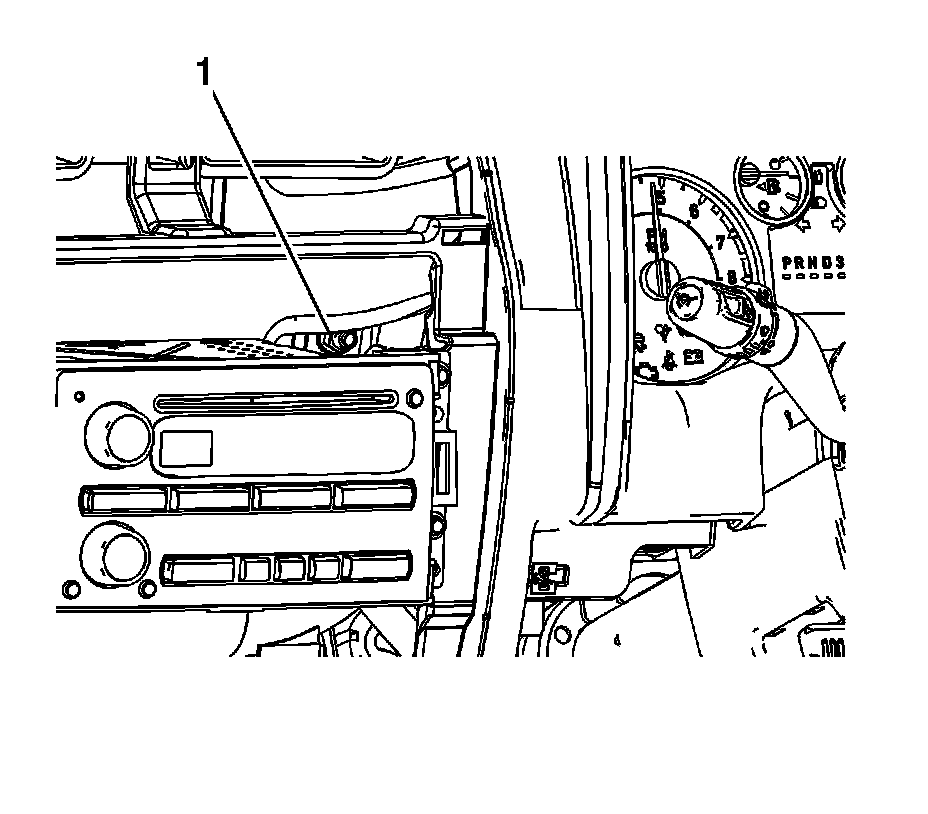

7. Using an appropriate socket and extension, remove the park brake lever upper nut (1) through the opening above the radio.

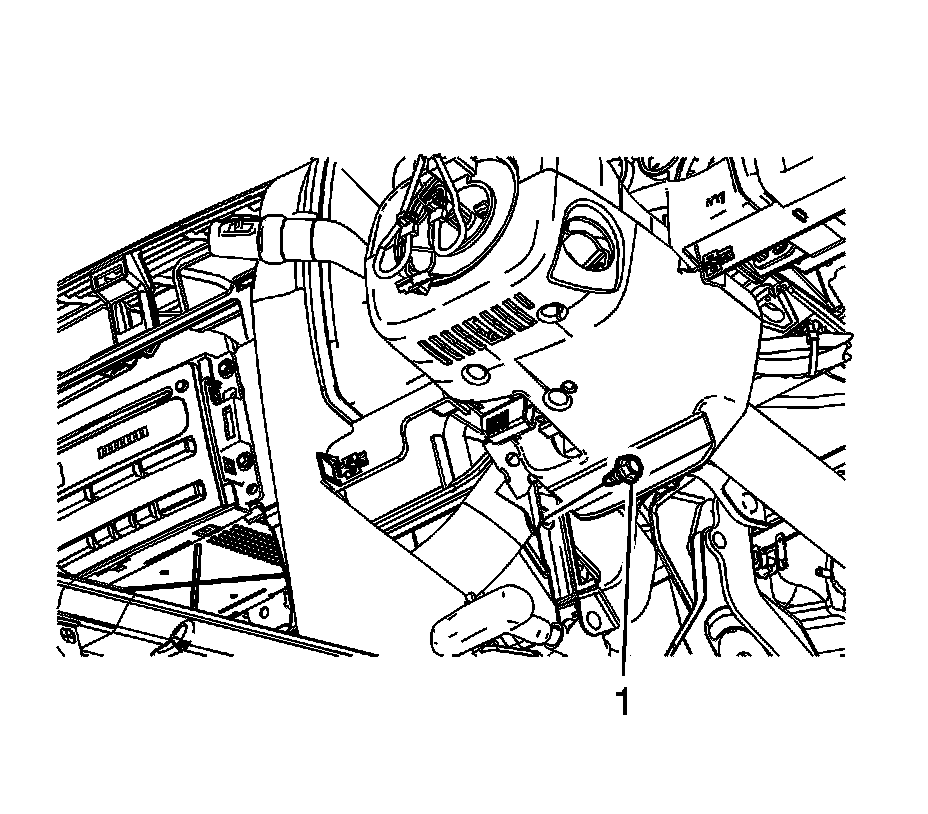

8. Remove the park brake lever side bracket bolt (1).

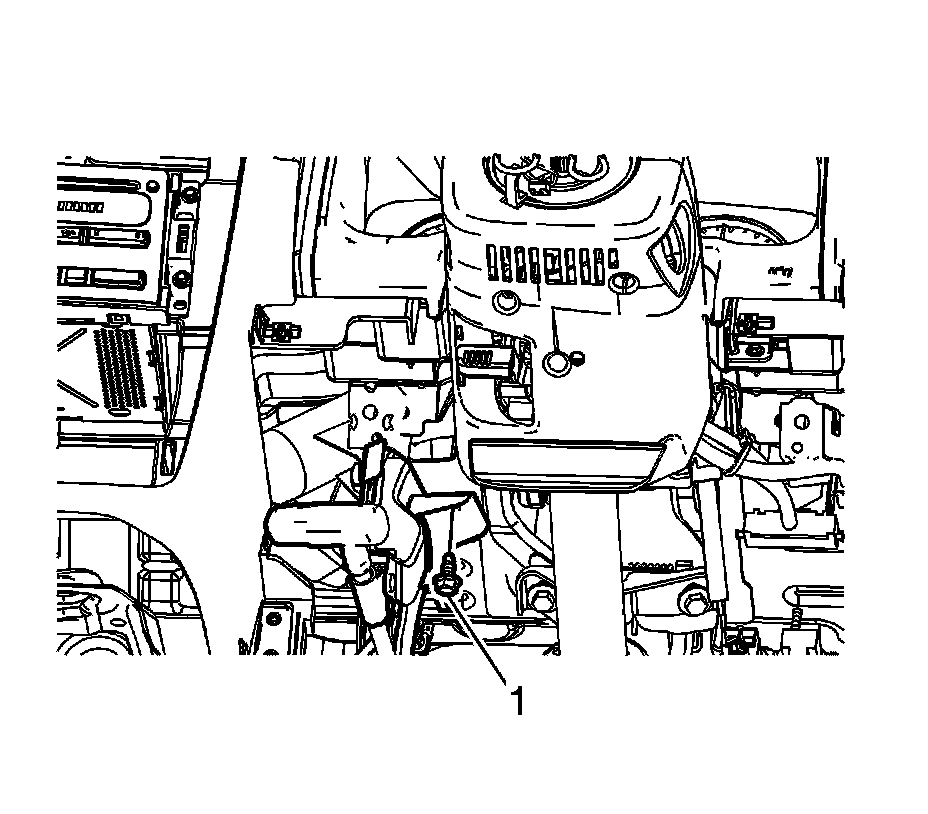

9. Remove the park brake lever upper bracket bolt (1).

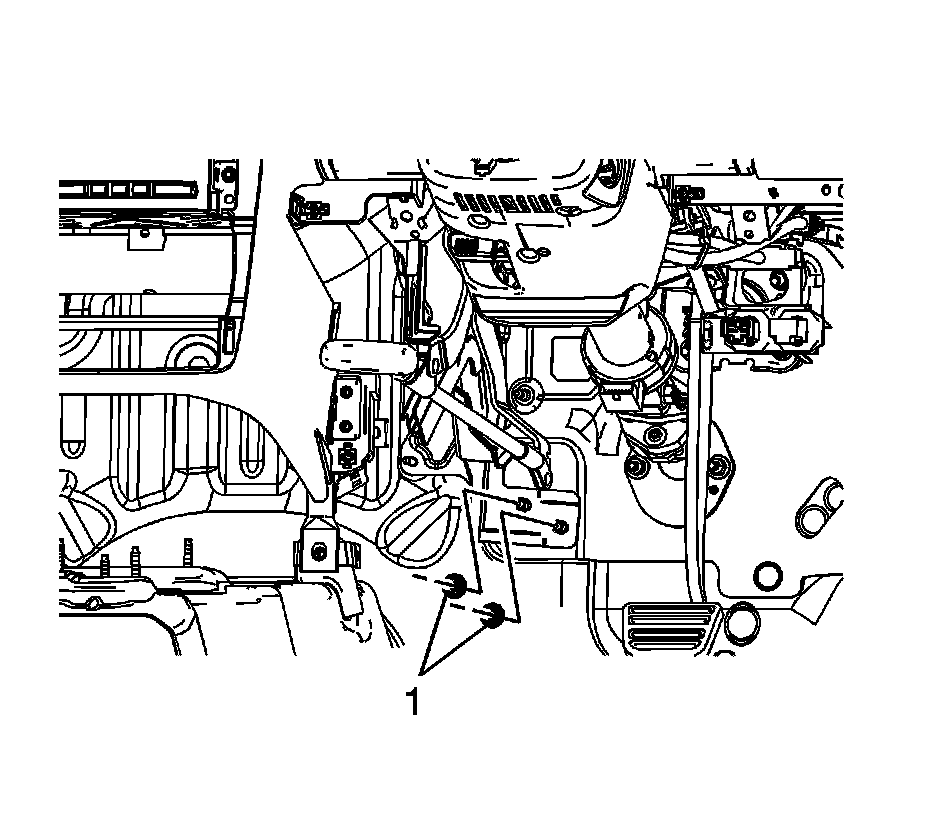

10. Remove the 2 park brake lever lower bracket nuts (1).
11. Lower the park brake lever assembly and disconnect the park brake warning lamp switch electrical connector.
12. Remove the park brake lever assembly.



Installation Procedure





1. Connect the park brake warning lamp switch electrical connector and position the park brake lever assembly to the vehicle.

Notice: Refer to Fastener Notice (Fastener Notice) .

2. Install the 2 park brake lever lower bracket nuts (1).

Tighten the nuts to 20 N.m (15 lb ft).





3. Install the park brake lever upper bracket bolt (1).

Tighten the bolt to 20 N.m (15 lb ft).





4. Install the park brake lever side bracket bolt (1).

Tighten the bolt to 20 N.m (15 lb ft).





5. Using an appropriate socket and extension, install the park brake lever upper nut (1) through the opening above the radio.

Tighten the nut to 20 N.m (15 lb ft).

6. Install the instrument panel center trim panel. Refer to Instrument Panel Center Trim Panel Replacement (Left Hand Drive) (Instrument Panel Center Trim Panel Replacement (Left Hand Drive))Instrument Panel Center Trim Panel Replacement (Right Hand Drive) (Instrument Panel Center Trim Panel Replacement (Right Hand Drive)) .




7. Install the front park brake cable to the park brake lever.
8. Install the park brake cable retaining clip (1).




9. Loosely install the park brake cable adjuster nut (1).
10. Adjust the park brake. Refer to Park Brake Adjustment (LHD) (Park Brake Adjustment (LHD))Park Brake Adjustment (RHD) (Park Brake Adjustment (RHD)) .
11. Install the driver knee bolster bracket. Refer to Driver Knee Bolster Bracket Replacement (Left Hand Drive) (Driver Knee Bolster Bracket Replacement (Left Hand Drive))Driver Knee Bolster Bracket Replacement (Right Hand Drive) (Driver Knee Bolster Bracket Replacement (Right Hand Drive)) .
