Parking Brake Lever Pedal Assembly Replacement

Parking Brake Lever Pedal Assembly Replacement

Removal Procedure

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair) .

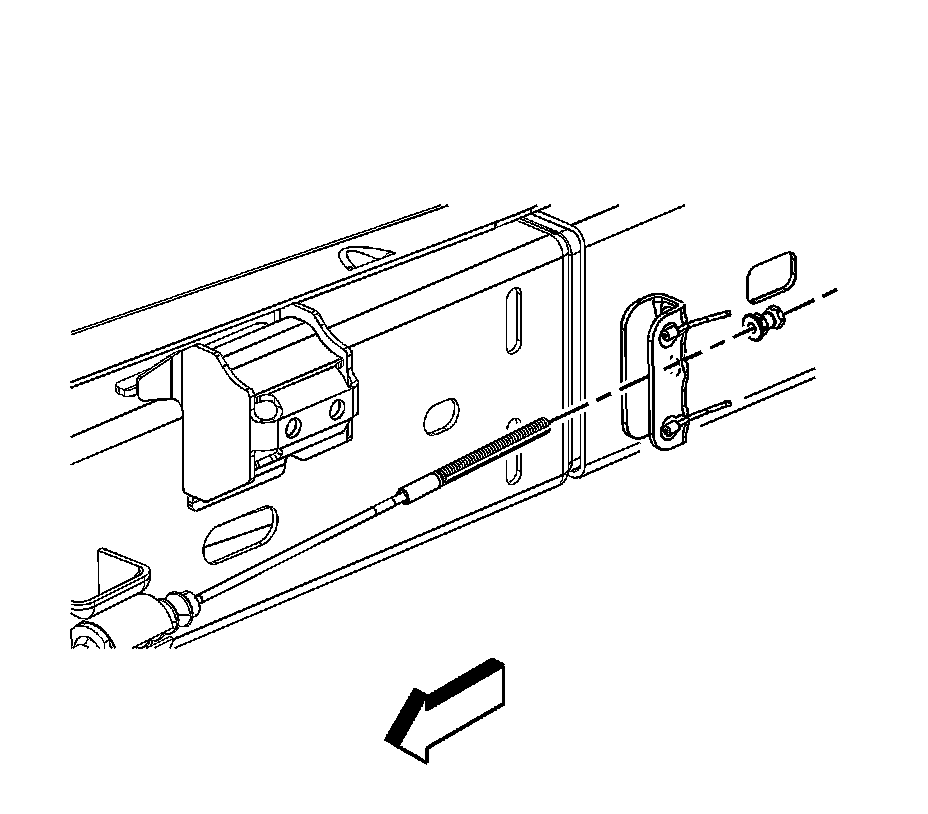

2. Remove the equalizer bar adjustment nut.




3. Remove the front brake cable from the frame bracket.

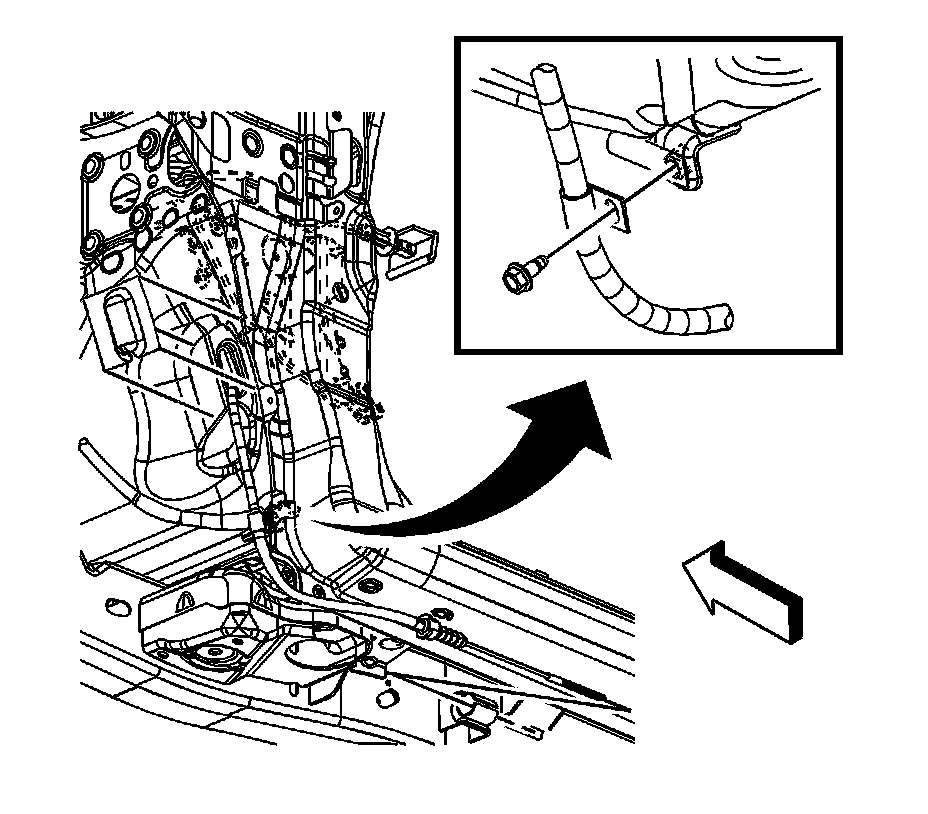

4. Remove the front brake cable bracket bolt.
5. Lower the vehicle.
6. Remove the clutch pedal assembly, if equipped. Refer to Clutch Pedal Replacement (Service and Repair) .
7. Remove the left side trim panel. Refer to Cowl Side Trim Panel Replacement (Cowl Side Trim Panel Replacement) .




8. Disconnect the park brake warning lamp connection.
9. Disconnect the park brake release cable from the park brake pedal.

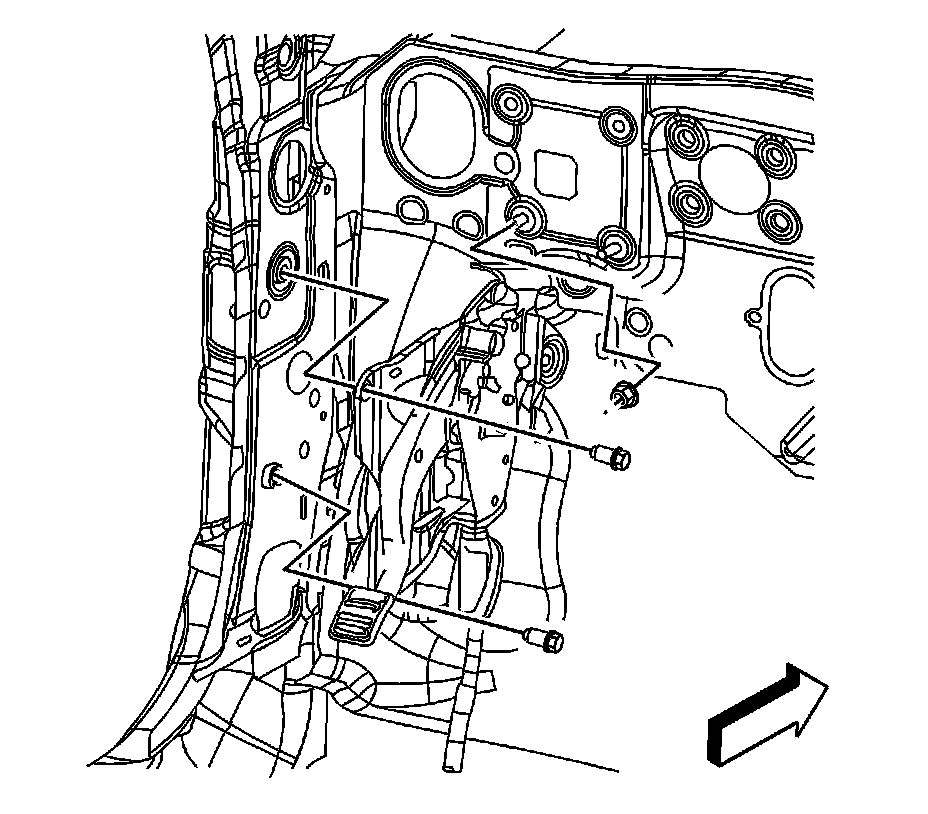

10. Remove the park brake pedal mounting nut.
11. Remove the park brake pedal mounting bolts.
12. Remove the pedal assembly from the vehicle.



Installation Procedure





1. Install the pedal assembly to the vehicle.

Notice: Refer to Fastener Notice (Fastener Notice) .

2. Install the park brake pedal mounting bolts.

Tighten the bolts to 20 N.m (15 lb ft).

3. Install the park brake pedal mounting nut.

Tighten the nut to 20 N.m (15 lb ft).





4. Connect the park brake release cable to the park brake lever.
5. Connect the park brake warning lamp connector.
6. Install the left side trim panel. Refer to Cowl Side Trim Panel Replacement (Cowl Side Trim Panel Replacement) .
7. Install the clutch pedal assembly, if equipped. Refer to Clutch Pedal Replacement (Service and Repair) .
8. Raise the vehicle.




9. Install the front brake cable bracket bolt.

Tighten the bolts to 20 N.m (15 lb ft).

10. Install the front brake cable to the frame bracket.




11. Install the equalizer bar adjustment nut.
12. Adjust the park brake. Refer to Park Brake Adjustment (LHD) (Park Brake Adjustment (LHD))Park Brake Adjustment (RHD) (Park Brake Adjustment (RHD)) .
