Parking Brake Rear Cable Replacement - Right Side

Parking Brake Rear Cable Replacement - Right Side

Removal Procedure

1. Release the park brake.
2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair) .

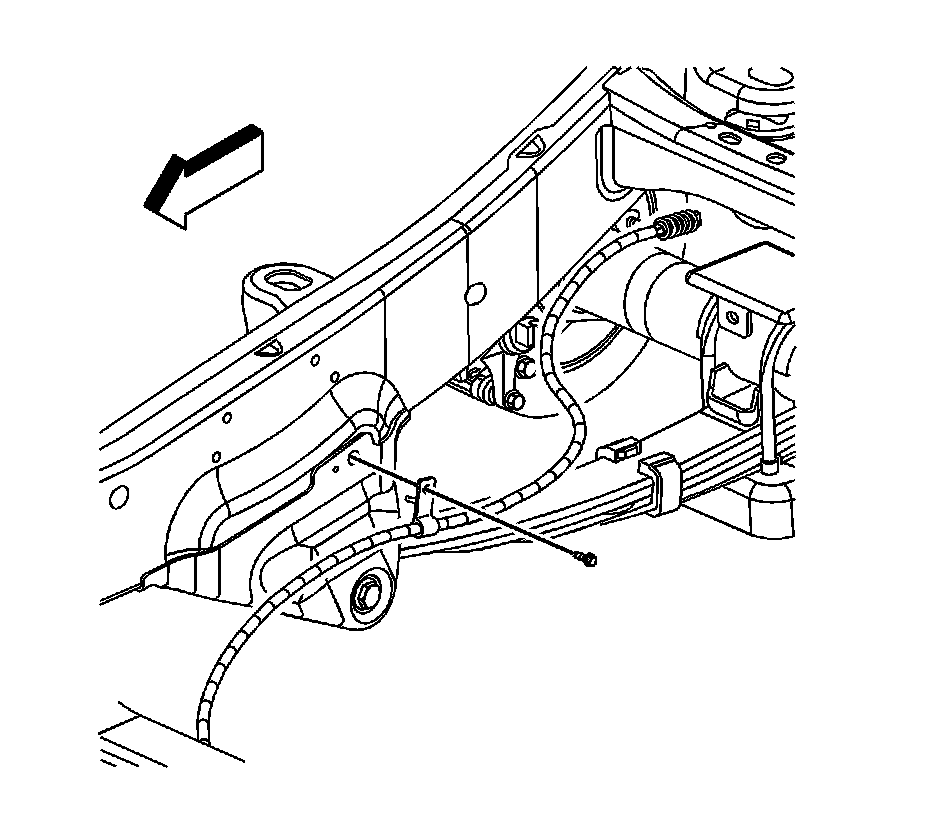

3. Relieve the tension from the park brake cable by pulling down on the park brake cable in front of the equalizer and removing the right rear park brake cable from the equalizer bar.

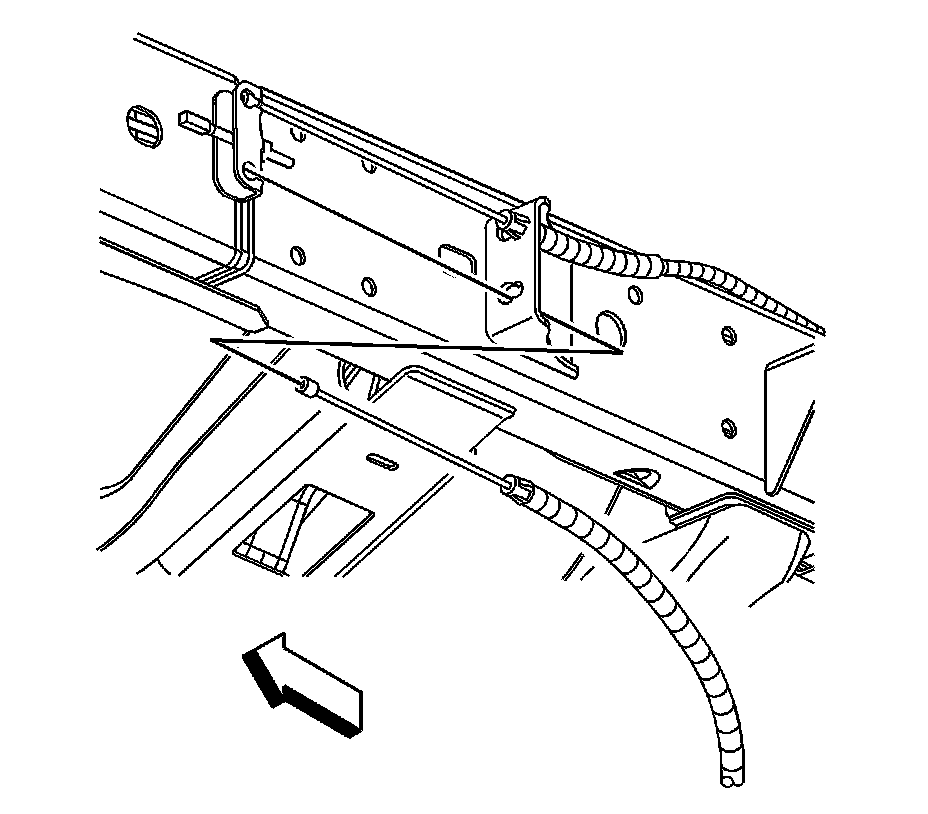

4. Remove the park brake cable from the frame bracket.

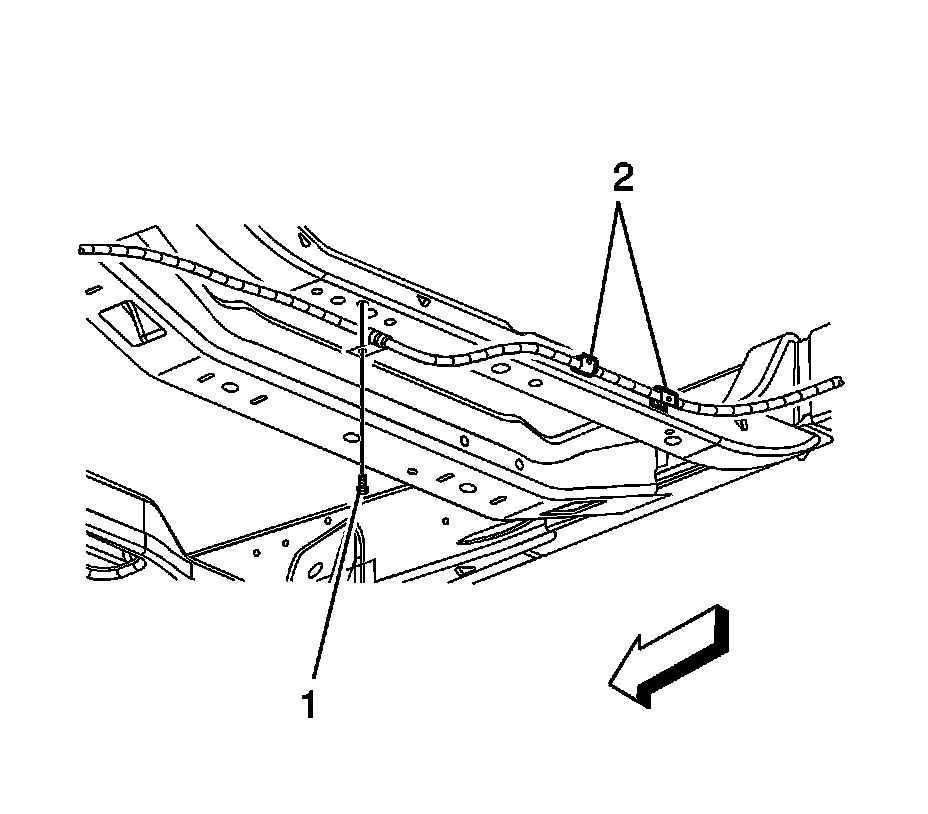

5. Remove the bolt (1) from the park brake cable clip.
6. Remove the park brake cable from the frame brackets (2).




7. Remove the bolt from the park brake cable clip.




8. Remove the park brake cable from the cable bracket and the park brake lever assembly.



Installation Procedure





1. Install the park brake cable to the cable bracket and the park brake lever assembly.





Notice: Refer to Fastener Notice (Fastener Notice) .

2. Install the bolt to the park brake cable clip.

Tighten the bolt to 25 N.m (18 lb ft).





3. Install the park brake cable to the frame brackets (2).
4. Install the bolt (1) to the park brake cable clip.

Tighten the bolt to 25 N.m (18 lb ft).





5. Install the park brake cable to the frame bracket.
6. Connect the right rear park brake cable by pulling down on the park brake cable in front of the equalizer and installing the right rear park brake cable to the equalizer bar.
7. Adjust the park brake brake. Refer to Park Brake Adjustment (LHD) (Park Brake Adjustment (LHD))Park Brake Adjustment (RHD) (Park Brake Adjustment (RHD)) .
