Parking Brake Front Cable Replacement (RHD)

Parking Brake Front Cable Replacement (RHD)

Removal Procedure

1. Release the park brake lever.




2. Remove the driver knee bolster bracket. Refer to Driver Knee Bolster Bracket Replacement (Left Hand Drive) (Driver Knee Bolster Bracket Replacement (Left Hand Drive))Driver Knee Bolster Bracket Replacement (Right Hand Drive) (Driver Knee Bolster Bracket Replacement (Right Hand Drive)) .

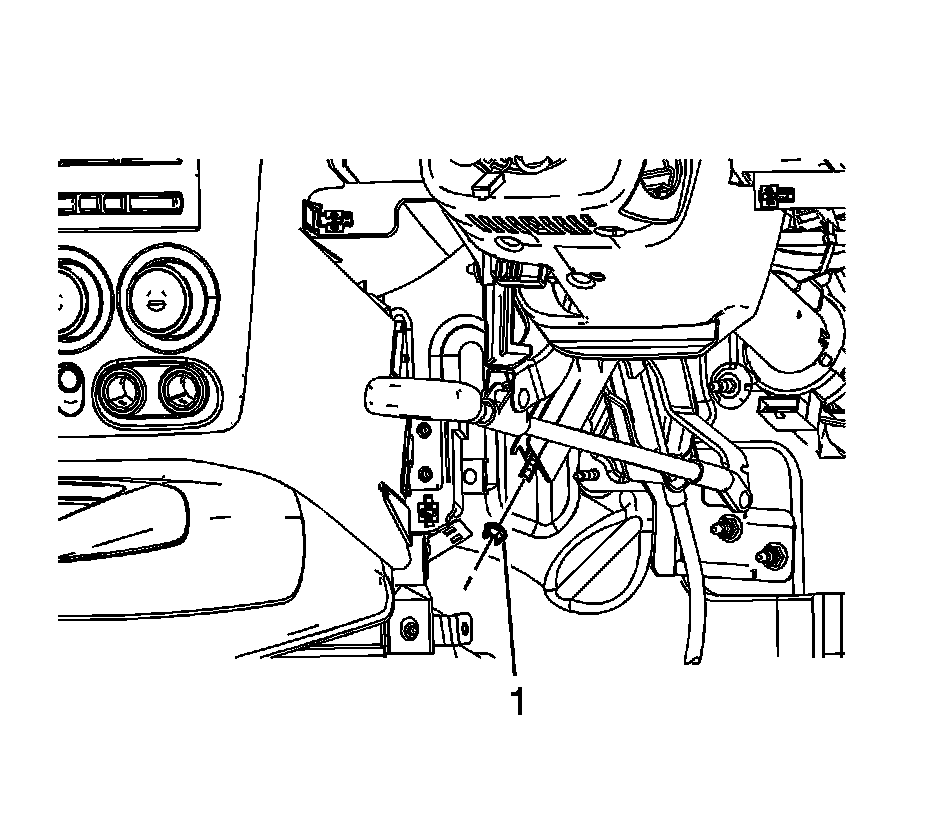

3. Remove the park brake cable adjuster nut (1).

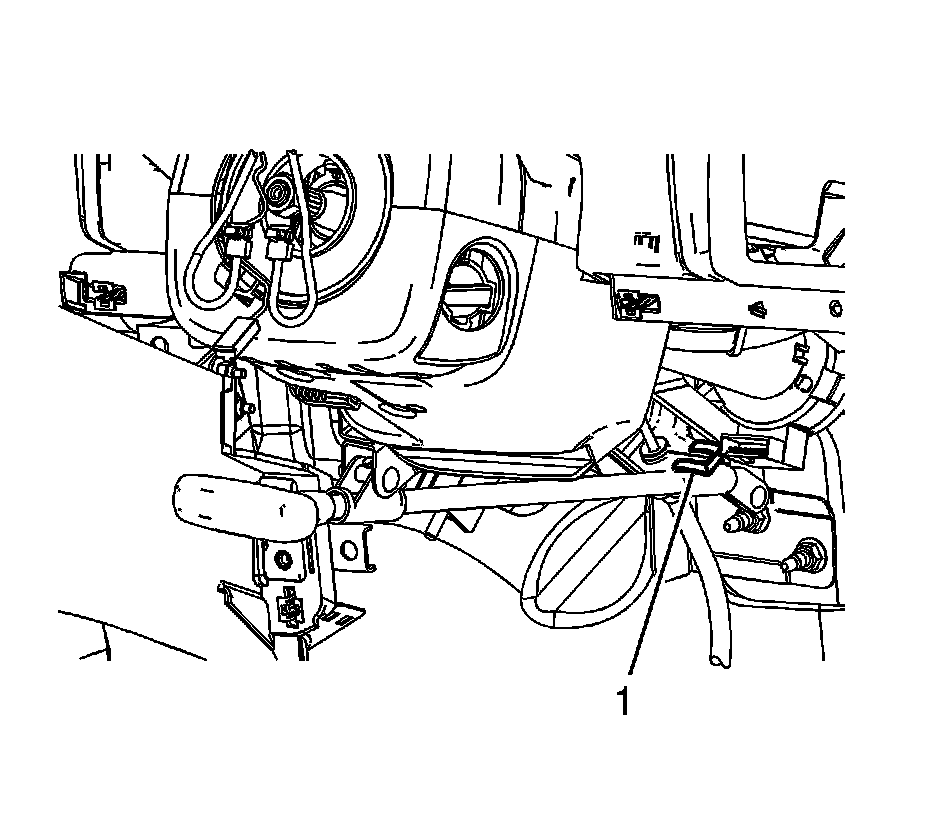

4. Remove the park brake cable retaining clip (1).
5. Remove the front park brake cable from the park brake lever.
6. Remove the driver and passenger side cowl side trim panels. Refer to Cowl Side Trim Panel Replacement (Cowl Side Trim Panel Replacement) .




7. Carefully position the driver side floor carpet rearward to expose the front park brake cable.

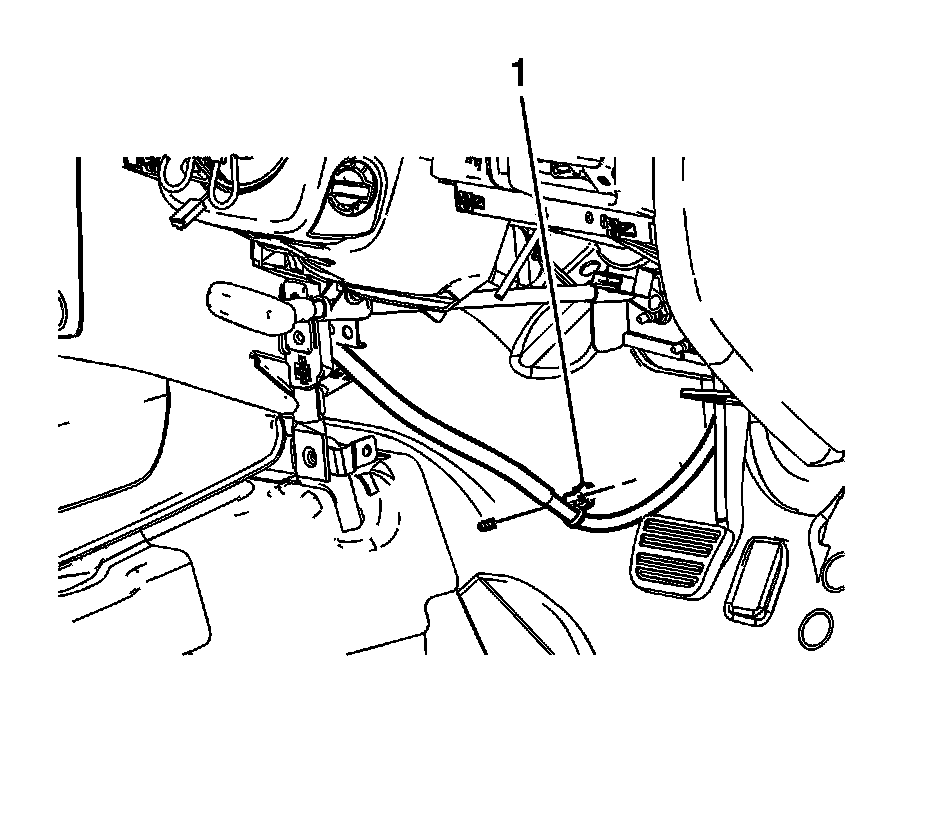

8. Release the front park brake cable retainer (1) from the stud on the driveline tunnel.




9. Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement (Left Hand Drive) (Instrument Panel Compartment Replacement (Left Hand Drive))Instrument Panel Compartment Replacement (Right Hand Drive) (Instrument Panel Compartment Replacement (Right Hand Drive)) .

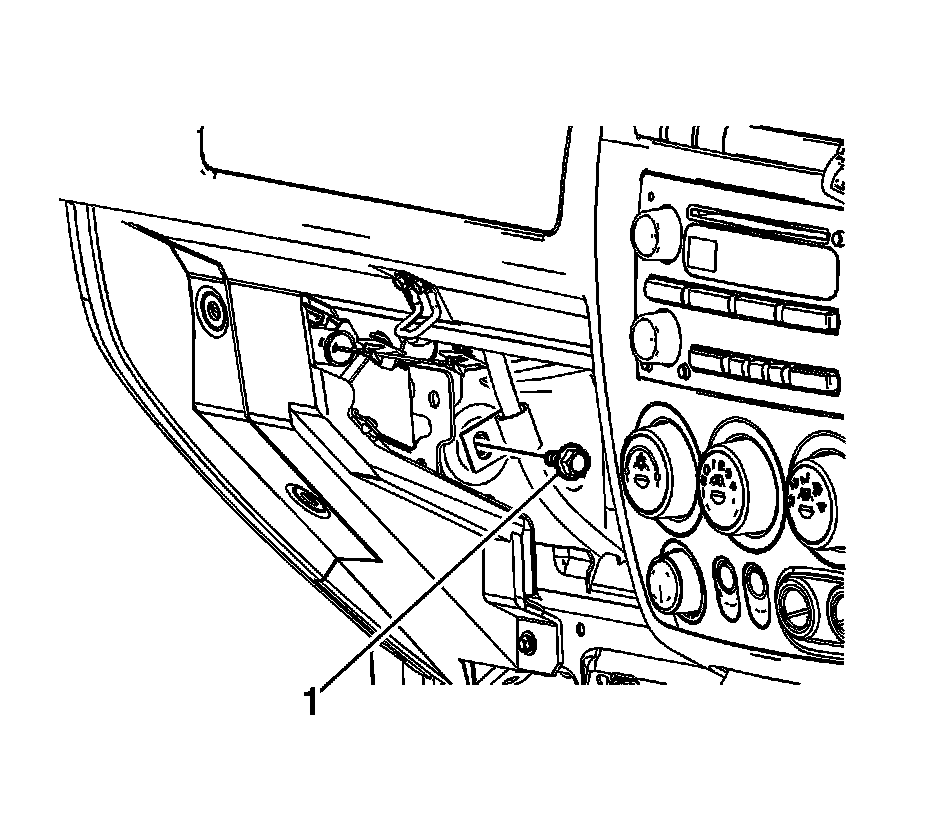

10. Remove the front park brake cable cowl bolt.
11. Reach through the instrument panel compartment opening and release the front park brake cable from the retainers on the HVAC module.




12. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair) .

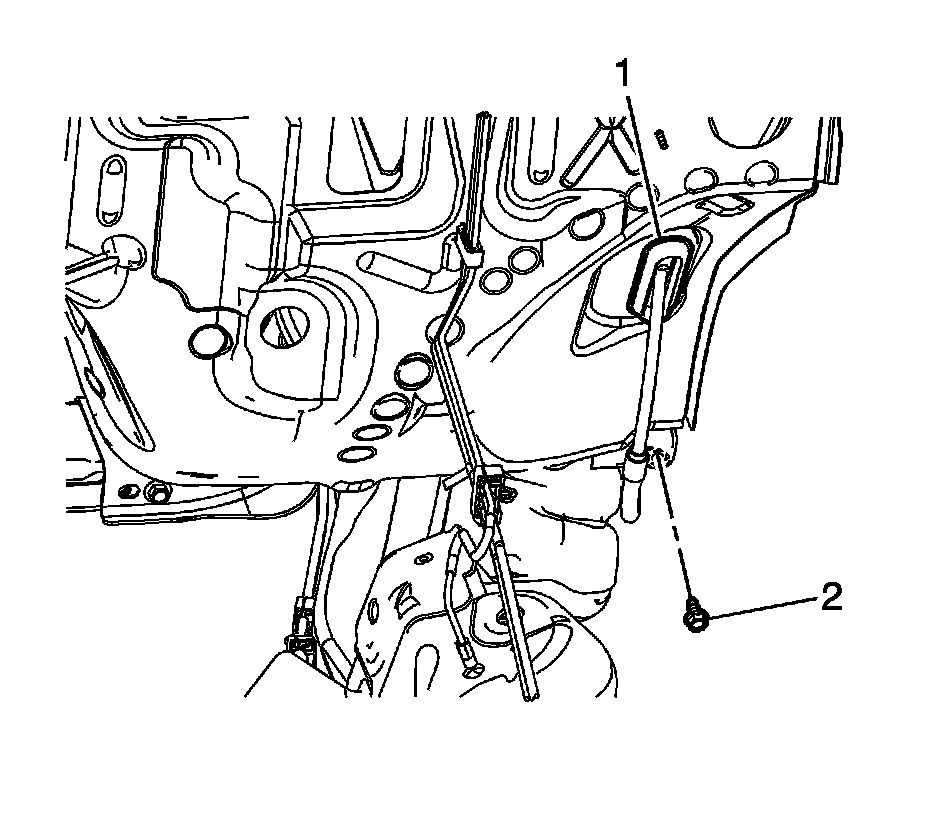

13. Remove the front park brake cable lower bolt (2).
14. Release the front park brake cable pass-through grommet (1).




15. Disconnect the rear park brake cables (3) from the equalizer.
16. Remove the front park brake cable conduit (1) from the cable mounting bracket.
17. Remove the front park brake cable assembly (2) from the vehicle.



Installation Procedure





1. Install the front park brake cable assembly (2) to the vehicle.
2. Install the front park brake cable conduit (1) to the cable mounting bracket.
3. Connect the rear park brake cables (3) to the equalizer.

Notice: Refer to Fastener Notice (Fastener Notice) .





4. Install the front park brake cable lower bolt (2).

Tighten the bolt to 20 N.m (15 lb ft).

5. Install the front park brake cable pass-through grommet (1).
6. Lower the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair) .




7. Install the front park brake cable cowl bolt.

Tighten the bolt to 20 N.m (15 lb ft).

8. Reach through the instrument panel compartment opening and install the front park brake cable to the retainers on the HVAC module.
9. Install the instrument panel compartment. Refer to Instrument Panel Compartment Replacement (Left Hand Drive) (Instrument Panel Compartment Replacement (Left Hand Drive))Instrument Panel Compartment Replacement (Right Hand Drive) (Instrument Panel Compartment Replacement (Right Hand Drive)) .




10. Install the front park brake cable retainer (1) to the stud on the driveline tunnel.
11. Carefully position the driver side floor carpet to the front floor.




12. Install the front park brake cable to the park brake lever.
13. Install the front park brake cable retaining clip (1).
14. Install the driver and passenger side cowl side trim panels. Refer to Cowl Side Trim Panel Replacement (Cowl Side Trim Panel Replacement) .




15. Loosely install the front park brake cable adjuster nut (1).
16. Adjust the park brake. Refer to Park Brake Adjustment (LHD) (Park Brake Adjustment (LHD))Park Brake Adjustment (RHD) (Park Brake Adjustment (RHD)) .
17. Install the driver knee bolster bracket. Refer to Driver Knee Bolster Bracket Replacement (Left Hand Drive) (Driver Knee Bolster Bracket Replacement (Left Hand Drive))Driver Knee Bolster Bracket Replacement (Right Hand Drive) (Driver Knee Bolster Bracket Replacement (Right Hand Drive)) .
