Outside Rearview Mirror Schematics
Outside Rearview Mirror Schematics
Outside Rearview Mirror Schematics

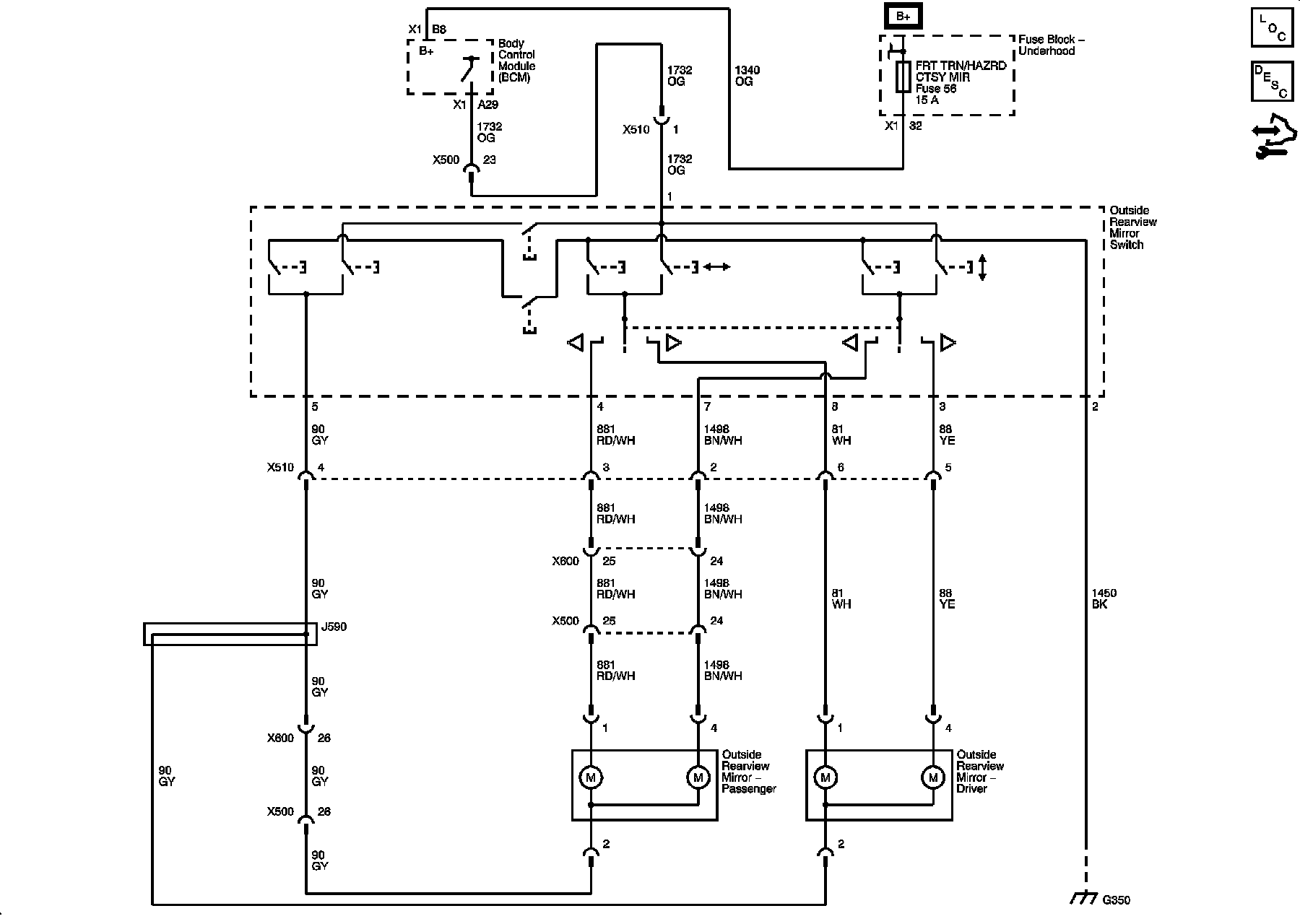

LHD

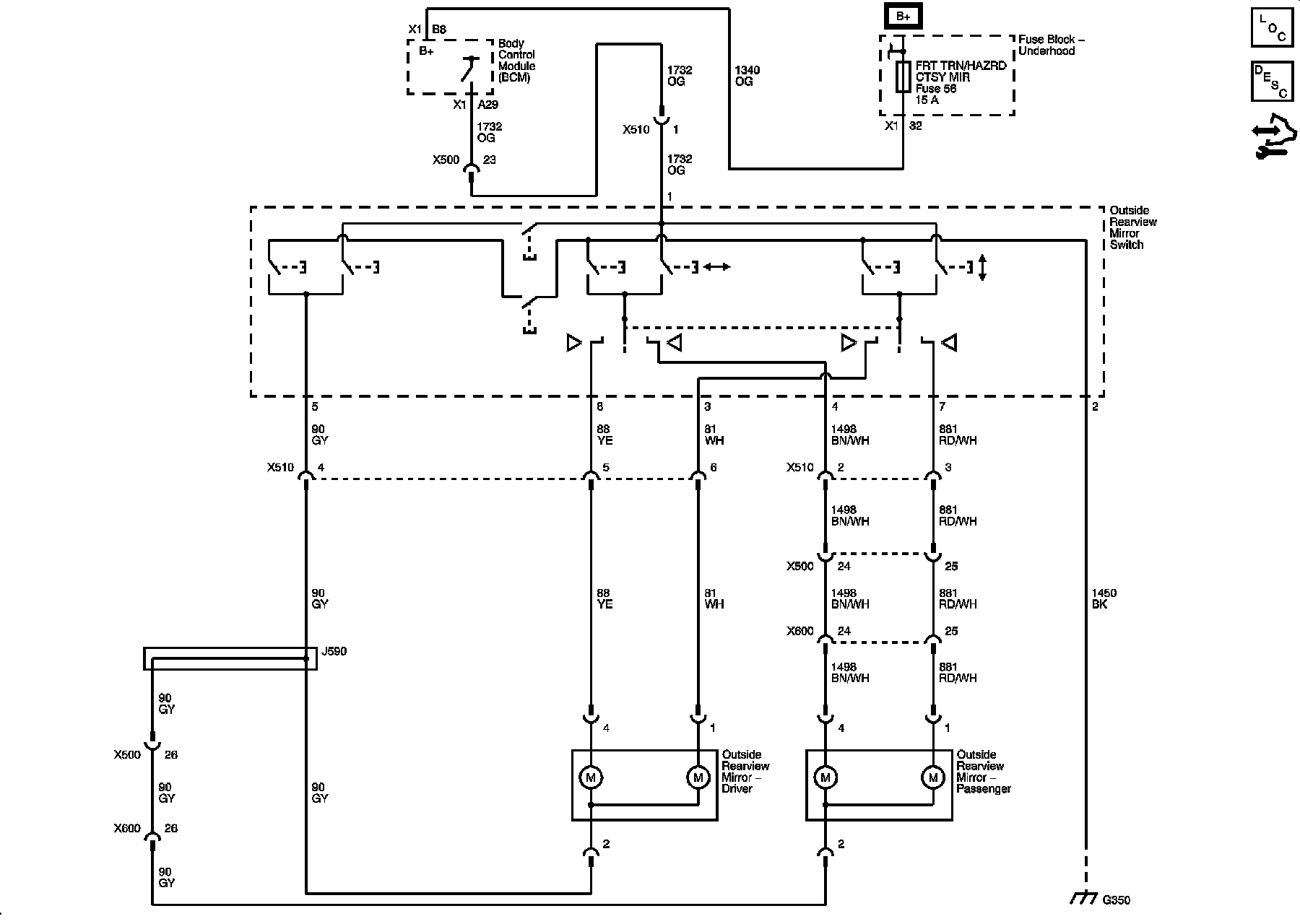

RHD
