Home >> Hummer >> 2008 >> H3 L5-3.7L >> Repair and Diagnosis >> Body and Frame >> Interior Moulding / Trim >> Console >> Service and Repair >> Console Replacement (Right Hand Drive)

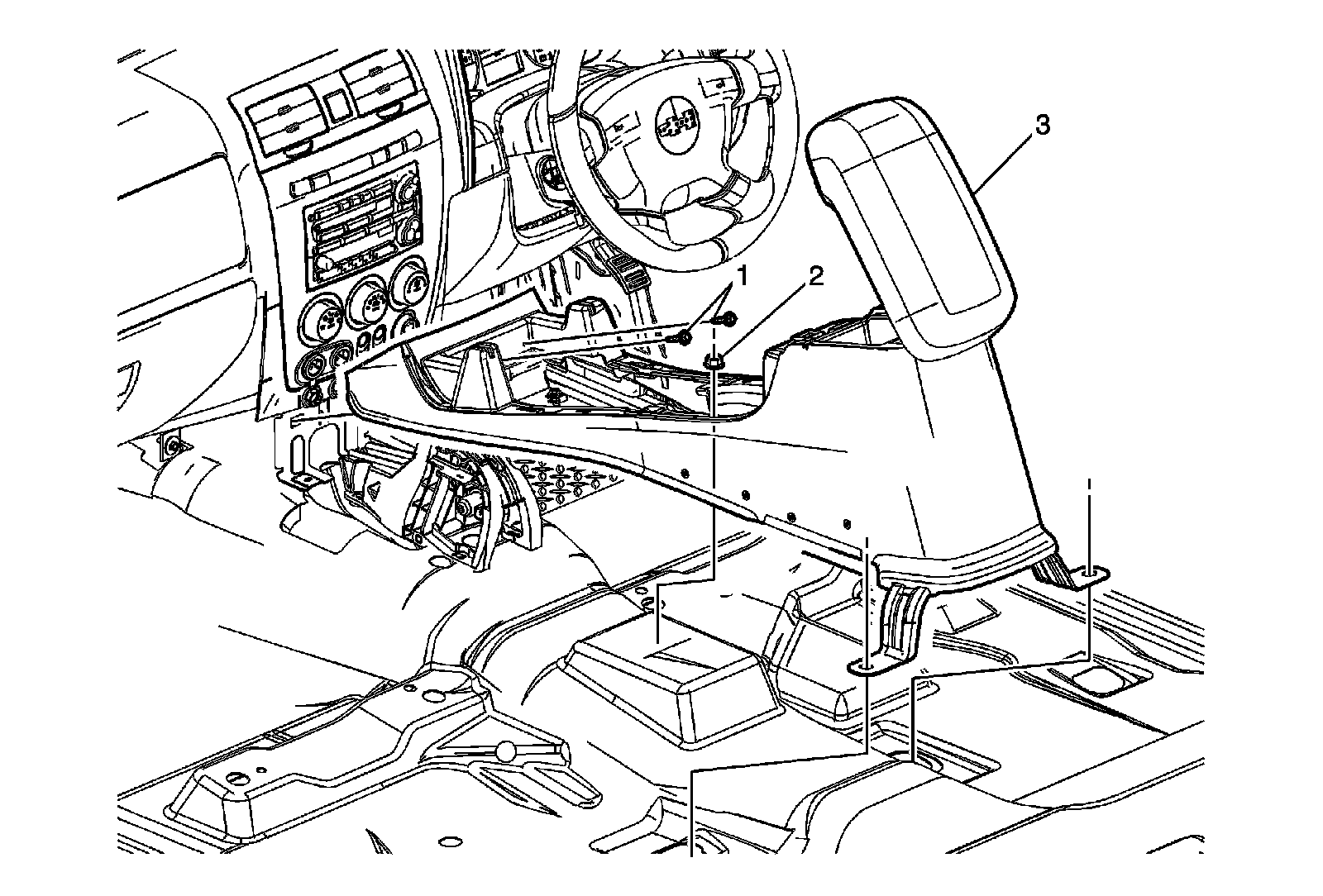

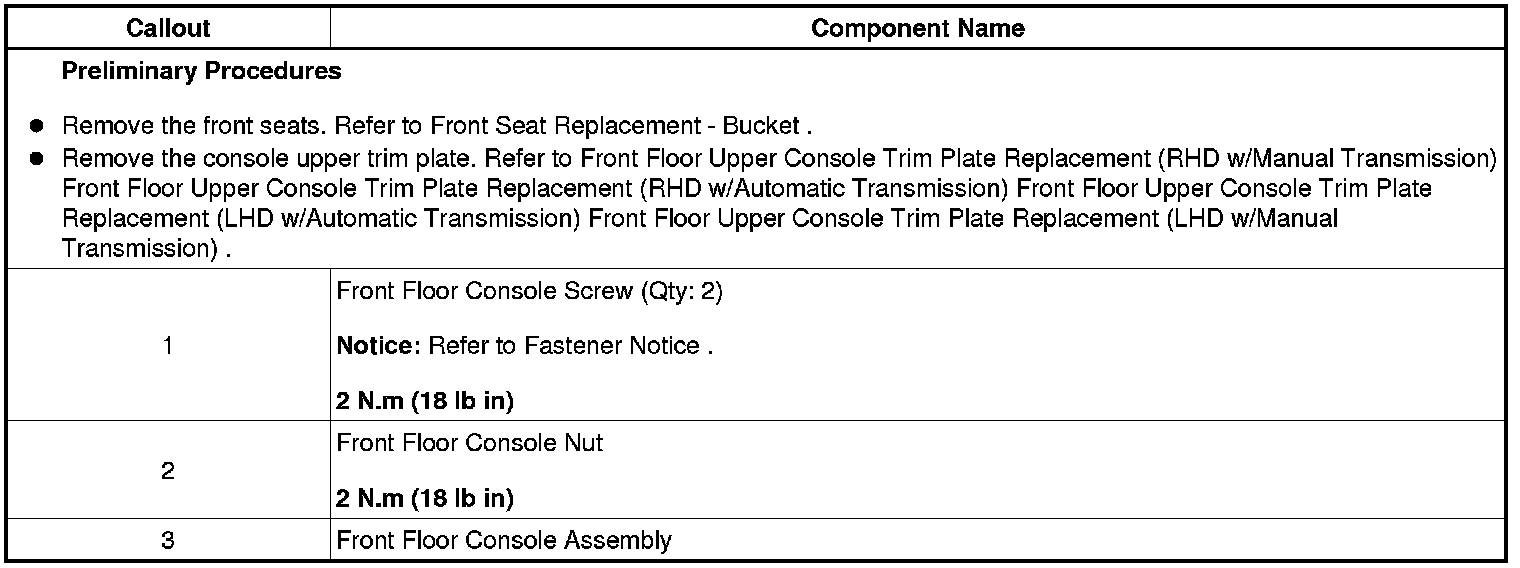

Console Replacement (Right Hand Drive)



Console Replacement (Right Hand Drive)
