Connector Views

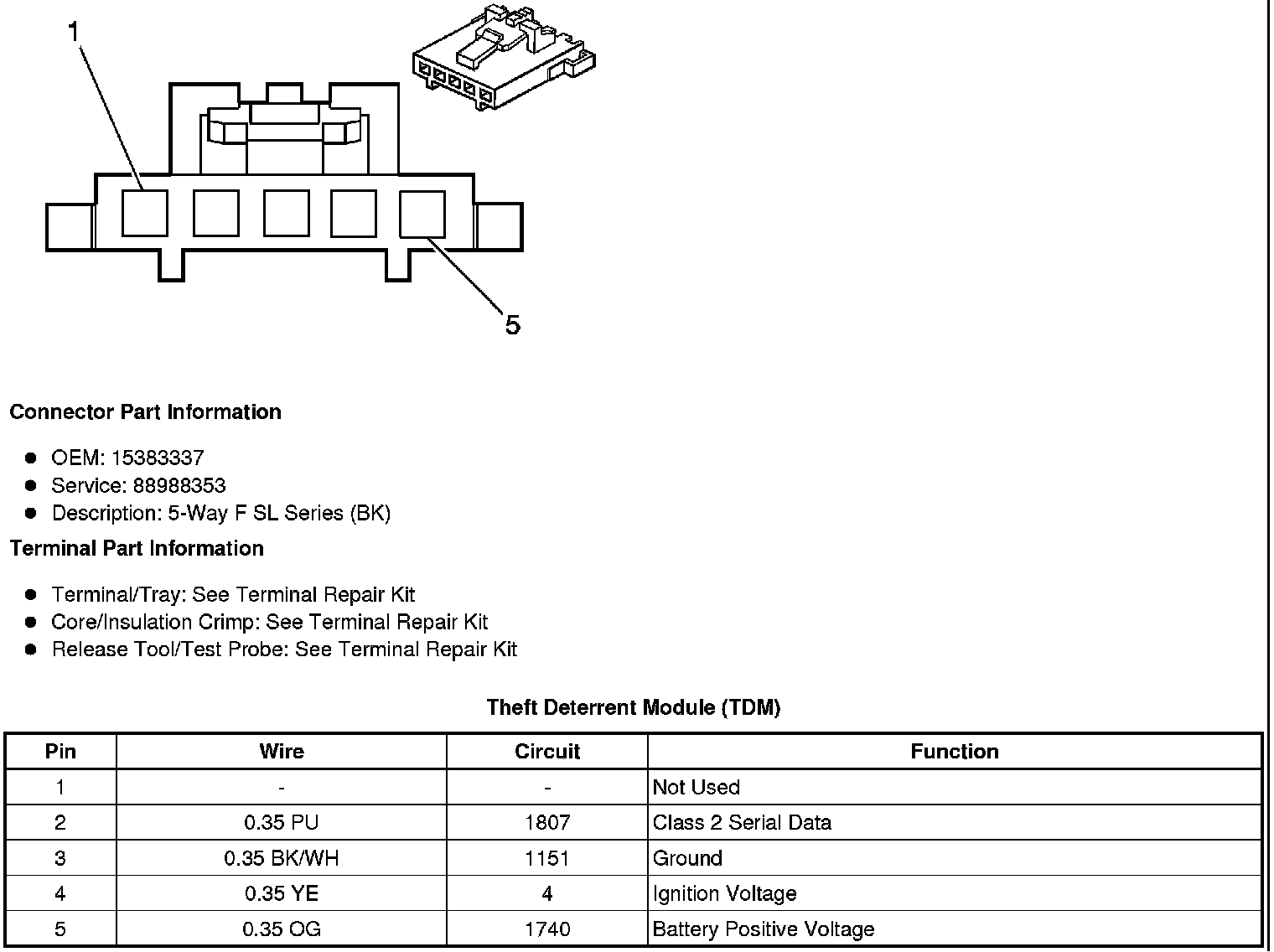

Theft Deterrent Module (TDM)

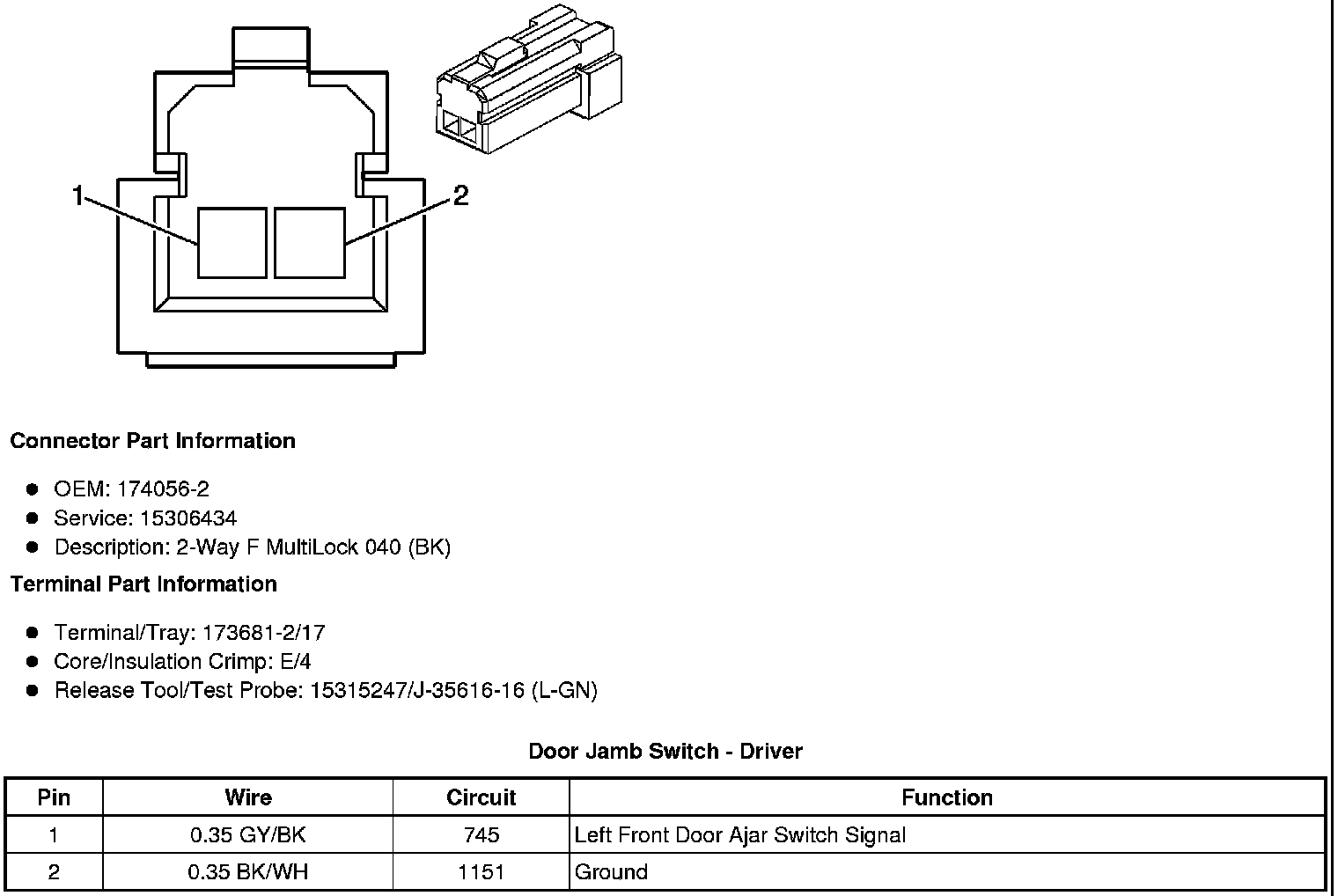

Door Jamb Switch - Driver






Door Jamb Switch - Left Rear

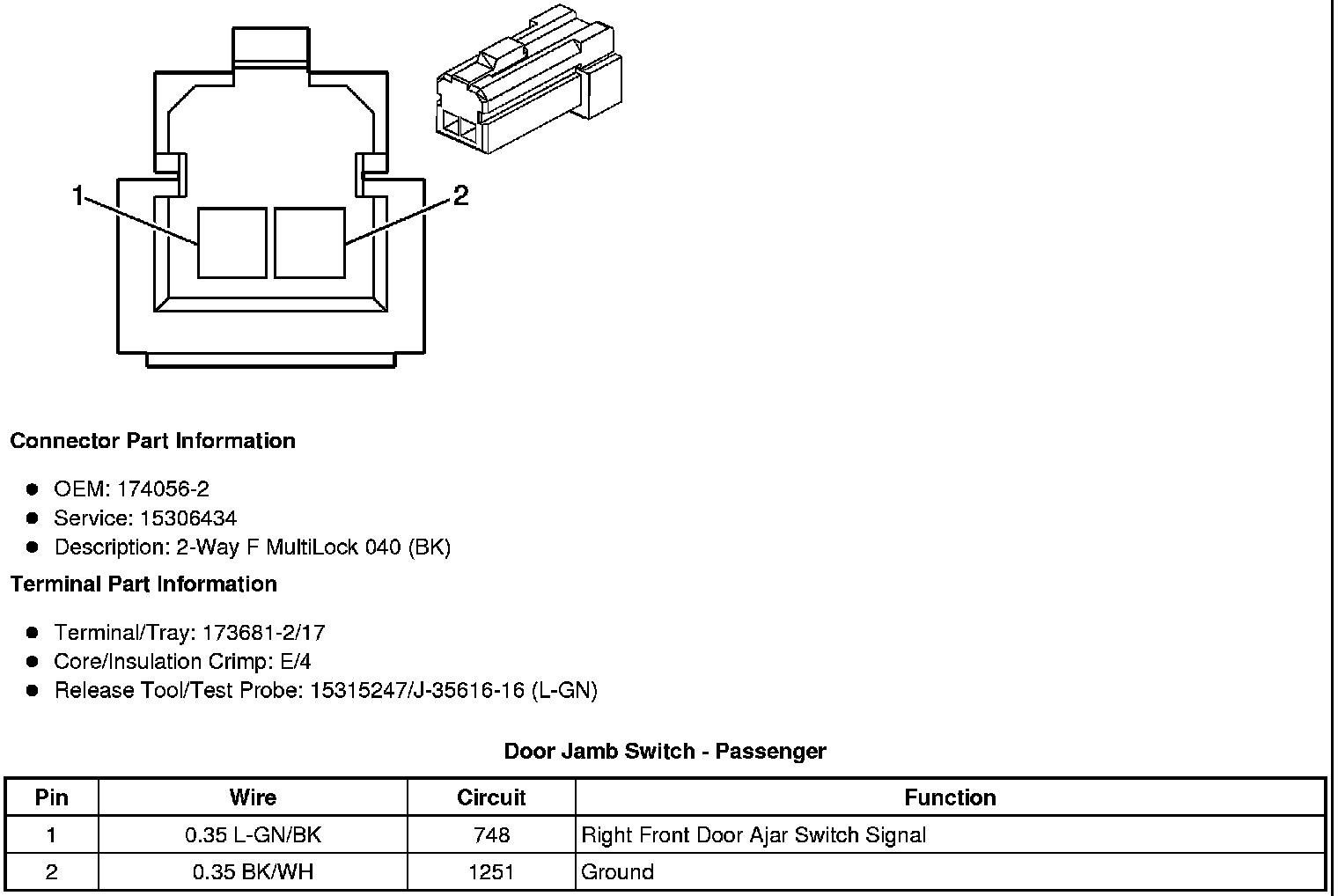

Door Jamb Switch - Passenger






Door Jamb Switch - Right Rear
