P1574
DTC P1574
Diagnostic Instructions
* Perform the Diagnostic System Check - Vehicle (Diagnostic System Check - Vehicle) prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis (Strategy Based Diagnosis) for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions (Diagnostic Procedure Instructions) provides an overview of each diagnostic category.
DTC Descriptor
DTC P1574
- Stoplamp Switch Circuit

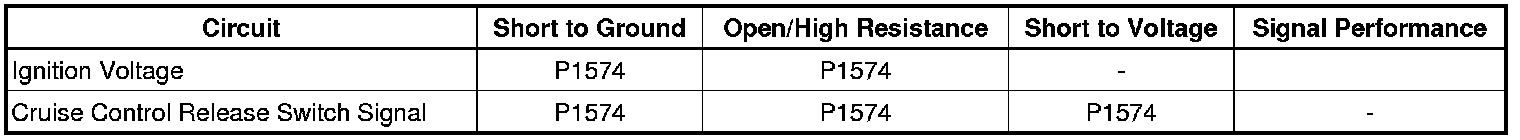

Diagnostic Fault Information
Circuit/System Description
This diagnostic test functions on the assumption that a sudden decrease in vehicle speed is caused by a brake pedal application. When the engine control module (ECM) detects that there is a 4.2 km/h (2.6 mph) or greater decrease in vehicle speed within 0.25 second and a transition of the torque converter clutch (TCC) brake switch without a transition of the stop lamp switch, the ECM sets DTC P1574.
Conditions for Running the DTC
* DTCs P0502, P0503, P0719, and P0724 are not set.
* The engine speed is greater than 700 RPM.
* The traction control system or the antilock brake system are not active and have not failed.
* The vehicle speed is greater than 48 km/h (30 mph) in order to enable the diagnostic.
* The diagnostic will disable when the wheel speed is less than 16 km/h (10 mph).
Conditions for Setting the DTC
* The vehicle speed decreases by at least 4.2 km/h (2.6 mph) within 0.25 second.
* The ECM detects a TCC brake transition.
* The ECM does not detect a stop lamp switch transition.
Actions Taken When the DTC Sets
* The malfunction indicator lamp (MIL) will not illuminate.
* The cruise control system is disabled.
Conditions for Clearing the DTC
* The condition responsible for setting the DTC no longer exists.
* A history DTC will clear after 40 malfunction-free ignition cycles have occurred.
Diagnostic Aids
Observe the stop lamps operate properly. Refer to Exterior Lighting Systems Description and Operation (Exterior Lighting Systems Description and Operation) in order to avoid misdiagnosis.
Reference Information
Schematic Reference
Cruise Control Schematics ([1][2]Cruise Control)
Connector End View Reference
Component Connector End Views (Component Connector End Views)
Description and Operation
Cruise Control Description and Operation (Description and Operation)
Electrical Information Reference
* Circuit Testing (Component Tests and General Diagnostics)
* Connector Repairs (Component Tests and General Diagnostics)
* Testing for Intermittent Conditions and Poor Connections (Component Tests and General Diagnostics)
* Wiring Repairs (Component Tests and General Diagnostics)
Scan Tool Reference
Control Module References (Programming and Relearning) for scan tool information
Circuit/System Verification
Ignition ON, observe the TCC/Cruise Brake Pedal Switch parameter while applying and releasing the brake pedal. The reading should change between Applied and Released.
Circuit/System Testing
1. Ignition OFF, disconnect the harness connector at the cruise control release switch.
2. Ignition ON, test for B+ between the B+ circuit terminal 1 and ground.
• If less than the specified value, test the B+ circuit for a short to ground or an open/high resistance.
3. Verify the scan tool TCC/Cruise Brake Pedal Switch parameter displays Released.
• If not the specified value, test the signal circuit terminal 2 for a short to voltage. If the circuit tests normal, replace the ECM.
4. Install a 3A fused jumper wire between the signal circuit terminal 2 and the B+ circuit terminal 1. Verify the scan tool TCC/Cruise Brake Pedal Switch parameter displays Applied.
• If not the specified value, test the signal circuit for a short to ground or an open/high resistance. If the circuit tests normal, replace the ECM.
5. If all circuits test normal, test or replace the cruise control release switch.
Component Testing
1. Ignition OFF, disconnect the harness connector at the cruise control release switch.
2. Test for less than 1 ohm between terminals 1 and 2 at the switch.
• If not the specified value, replace the cruise control release switch.
3. Depress the brake pedal. Test for infinite resistance between terminals 1 and 2 at the switch.
• If not the specified value, replace the cruise control release switch.
Repair Instructions
Perform the Diagnostic Repair Verification (Verification Tests) after completing the diagnostic procedure.
* Cruise Control Release Switch Replacement (Service and Repair)
* Control Module References (Programming and Relearning) for ECM module replacement, setup, and programming
