DTC P0562

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle (Diagnostic System Check - Vehicle) prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis (Strategy Based Diagnosis) for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions (Diagnostic Procedure Instructions) provides an overview of each diagnostic category.



DTC Descriptor
DTC P0562
- System Voltage Low - ECM

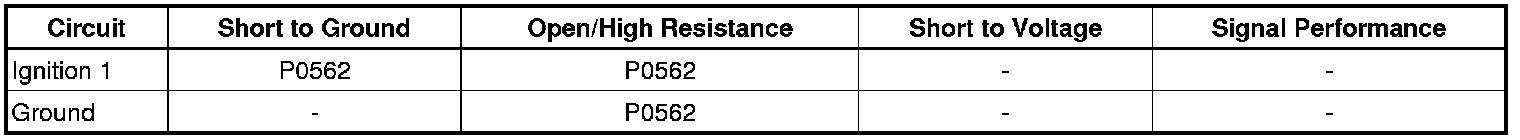

Diagnostic Fault Information






Circuit/System Description

The engine control module (ECM) monitors the system voltage to ensure that the voltage stays within the proper range. Damage to components, and incorrect data may occur when the voltage is out of range.


Conditions for Running the DTC

* The vehicle speed is above 8 km/h (5 mph).
* The system voltage is between 9.5-18 volts.



Conditions for Setting the DTC

The ECM detects a system voltage less than 10 volts for 5 seconds.


Action Taken When the DTC Sets

DTC P0562 is a C type DTC.


Conditions for Clearing the DTC

DTC P0562 is a C type DTC.


Diagnostic Aids

A low voltage DTC in multiple modules indicates a concern with the charging system.


Reference Information
Schematic Reference

Starting and Charging Schematics ([1][2]Electrical Diagrams)
Connector End View Reference

Component Connector End Views (Component Connector End Views)
Description and Operation

Charging System Description and Operation (Description and Operation)
Electrical Information Reference

* Circuit Testing (Component Tests and General Diagnostics)
* Connector Repairs (Component Tests and General Diagnostics)
* Testing for Intermittent Conditions and Poor Connections (Component Tests and General Diagnostics)
* Wiring Repairs (Component Tests and General Diagnostics)

Scan Tool Reference

Control Module References (Programming and Relearning) for scan tool information


Circuit/System Verification

1. Engine running, accessories OFF, measure and record the battery voltage at the battery terminals. The voltage should be between 12.6 and 15.0 volts.

• If not within the specified range, refer to Charging System Test (Component Tests and General Diagnostics) .

2. Observe the scan tool ECM Ignition 1 Signal parameter. The reading should be between 12.6 and 15.0 volts.



Circuit/System Testing

1. Ignition OFF, disconnect the harness connectors at the ECM.
2. Ignition OFF, test for less than 5 ohms between the ground circuit terminal 73 X2 and ground:

• If greater than the specified range, test the ground circuit for an open/high resistance.

3. Verify that a test lamp illuminates between the B+ circuit terminal 20 X1 and ground:

• If the test lamp does not illuminate, test the B+ circuit for a short to ground or an open/high resistance.

4. Verify that a test lamp illuminates between the ignition circuit terminals listed below and ground:

* Terminal 19 X1
* Terminal 13 X2


• If the test lamp does not illuminate, test the ignition circuit for a short to ground or an open/high resistance.

5. If all circuits test normal, replace the EBCM.



Repair Instructions

Perform the Diagnostic Repair Verification (Verification Tests) after completing the diagnostic procedure.


Control Module References (Programming and Relearning) for ECM replacement, setup, and programming
