C0110

DTC C0110

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle (Diagnostic System Check - Vehicle) prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis (Strategy Based Diagnosis) for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions (Diagnostic Procedure Instructions) provides an overview of each diagnostic category.



DTC Descriptor
DTC C0110
- Pump Motor Circuit

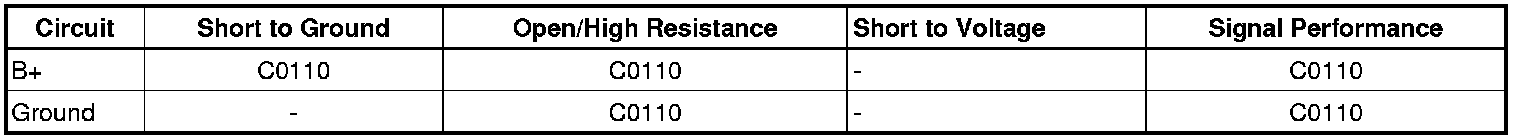

Diagnostic Fault Information






Circuit/System Description

The ABS pump motor recharges the brake fluid accumulator during antilock braking and normal power brake assist. The ABS pump motor is part of the hydraulic brake booster assembly.


Conditions for Running the DTC

Ignition voltage is greater than 9.5 volts.


Conditions for Setting the DTC

* The ABS pump runs continuously.
* The EBCM detects an open in the pump motor circuit.



Action Taken When the DTC Sets

* EBCM disables the ABS/traction control system (TCS)/vehicle stability enhancement system (VSES) for the duration of the ignition cycle.
* A DIC message and/or a warning indicator may be displayed.



Conditions for Clearing the DTC

* The condition for setting the DTC is no longer present.
* The EBCM clears the history DTC when a current DTC is not detected in 100 consecutive drive cycles.
* Operate the vehicle at speeds greater than 15 km/h (10 mph) to complete the self test, and the EBCM will turn off the ABS indicator.



Reference Information
Schematic Reference

Antilock Brake System Schematics (Electrical Diagrams)
Connector End View Reference

Component Connector End Views (Component Connector End Views)
Description and Operation

ABS Description and Operation (Description and Operation)
Electrical Information Reference

* Circuit Testing (Component Tests and General Diagnostics)
* Connector Repairs (Component Tests and General Diagnostics)
* Testing for Intermittent Conditions and Poor Connections (Component Tests and General Diagnostics)
* Wiring Repairs (Component Tests and General Diagnostics)

Scan Tool Reference

Control Module References (Programming and Relearning) for scan tool information


Circuit/System Testing

Important: It is recommend that the defective components be replaced, and not the complete brake master cylinder assembly.



1. Ignition OFF, disconnect the X1, X2 harness connectors at the EBCM.
2. Test for less than 1 ohm between the ground circuit terminal listed below and ground.

* Terminal 4 X1
* Terminal 1 X2
* Terminal 32 X2


• If greater than the specified range, test the ground circuit for an open/high resistance.

3. Ignition ON, verify that a test lamp illuminates between the B+ circuit terminal listed below and ground.

* Terminal 2 X1
* Terminal 2 X2


• If the test lamp does not illuminate, test the B+ circuit for a short to ground or an open/high resistance. If the circuit tests normal and the B+ circuit fuse is open, replace the EBCM/BPMV.

4. If all circuits test normal, replace the EBCM/BPMV assembly.



Repair Instructions

Perform the Diagnostic Repair Verification (Verification Tests) after completing the diagnostic procedure.

* Power Brake Booster Replacement (Power Brake Booster Replacement)
* Control Module References (Programming and Relearning) for EBCM replacement, setup, and programming
