Windshield Washer Control Module: Locations

Wiper/Washer Component Views

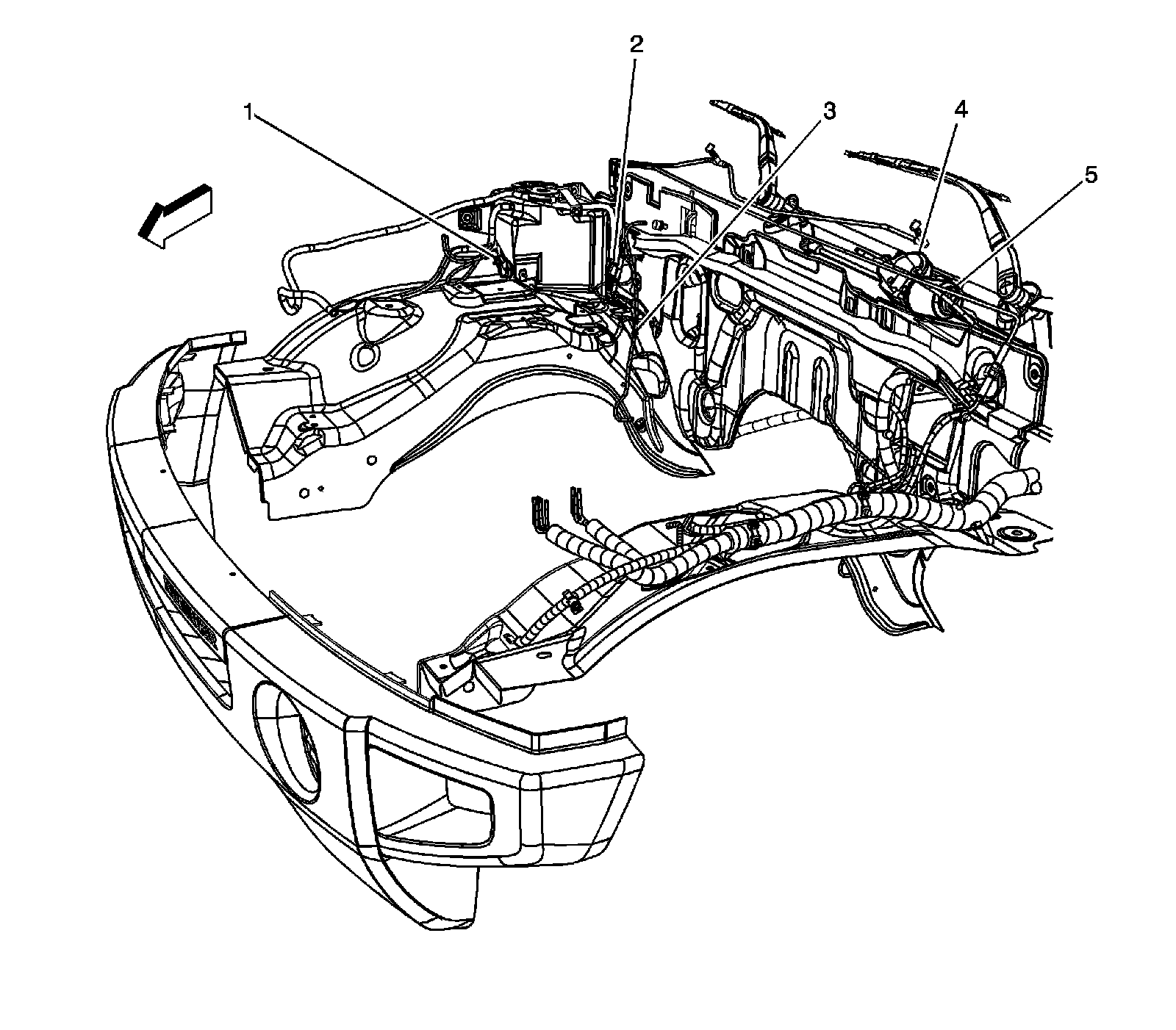

Engine Compartment




1 - Rear Window Washer Fluid Pump
2 - Windshield Washer Fluid Pump
3 - Body Harness
4 - Windshield Wiper/Washer Module
5 - Windshield Wiper Motor

Endgate Components




1 - Door Lock Actuator - Endgate
2 - Rear Window Wiper Motor
3 - Rear Window Defogger Connector
4 - Rear Window Defogger Connector
5 - Rear Window Defogger
6 - Rear Window Wiper/Washer Module
7 - C901 CHMSL Jumper Harness to Endgate Harness
8 - C450 Body Harness to Endgate Harness
