Home >> Hummer >> 2007 >> H3 L5-3.7L >> Repair and Diagnosis >> Windows and Glass >> Windows >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Power Window Inoperative - Passenger Door

Power Window Inoperative - Passenger Door



Power Window Inoperative - Passenger Door

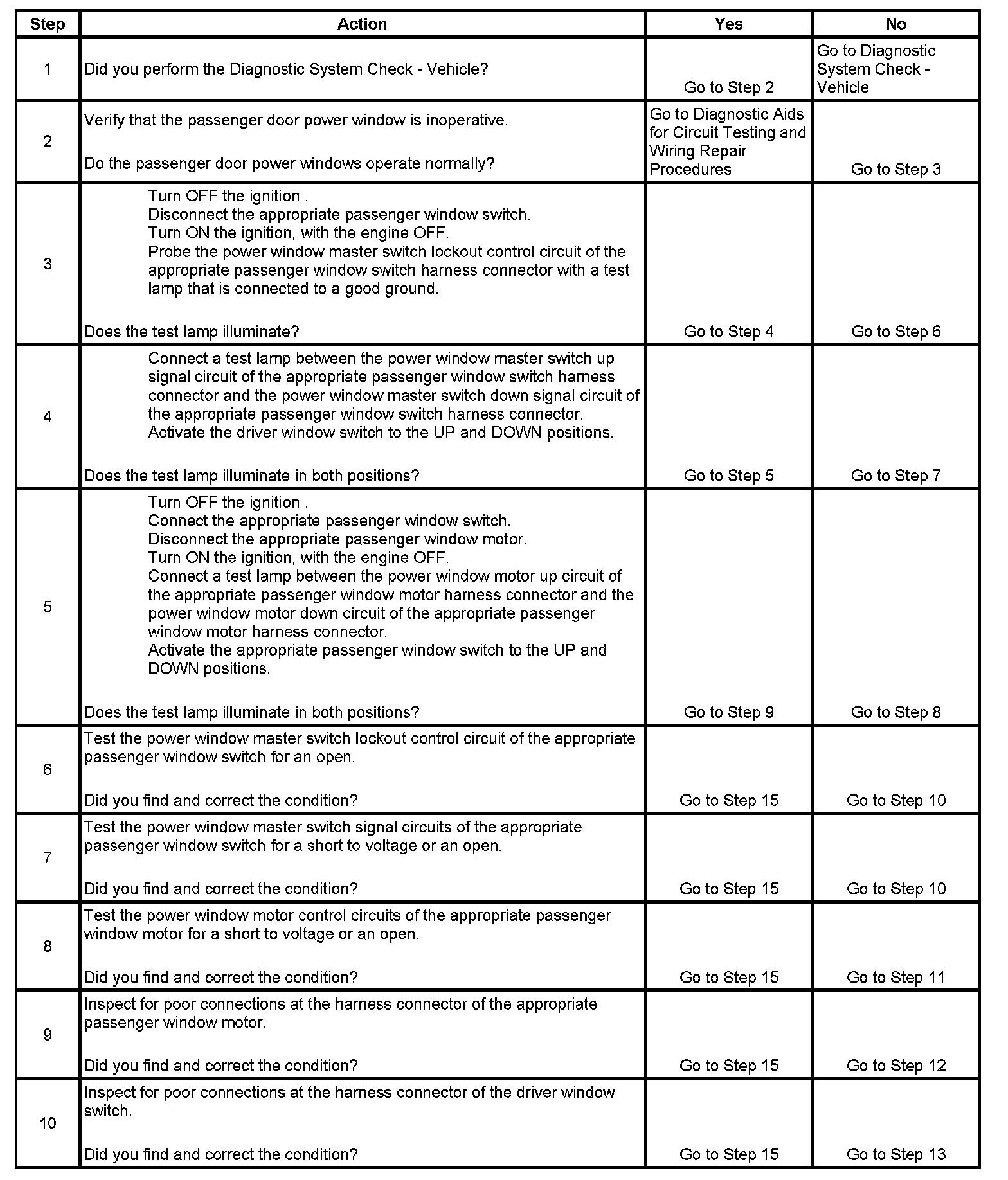

Step 1 - Step 10:

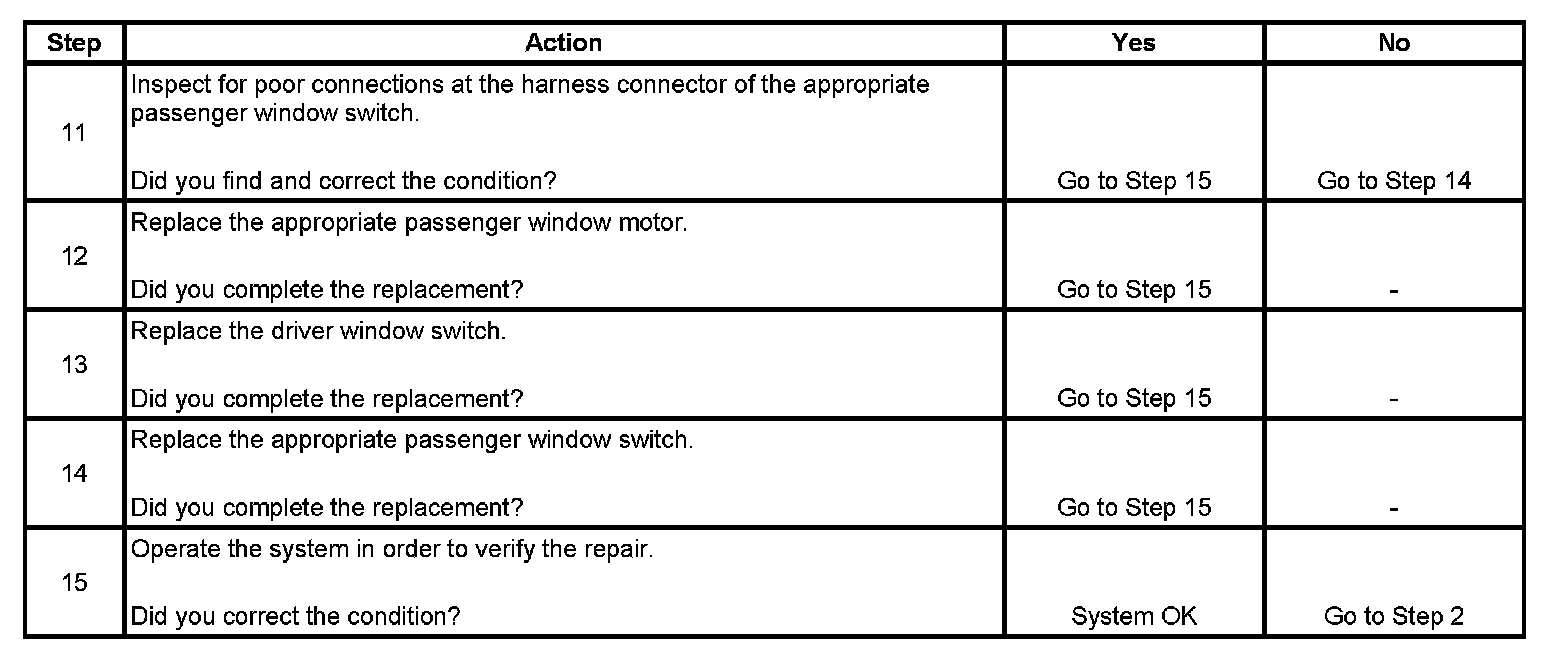

Step 11 - Step 15:
