Power Window Motor: Locations

Window Systems Component Views

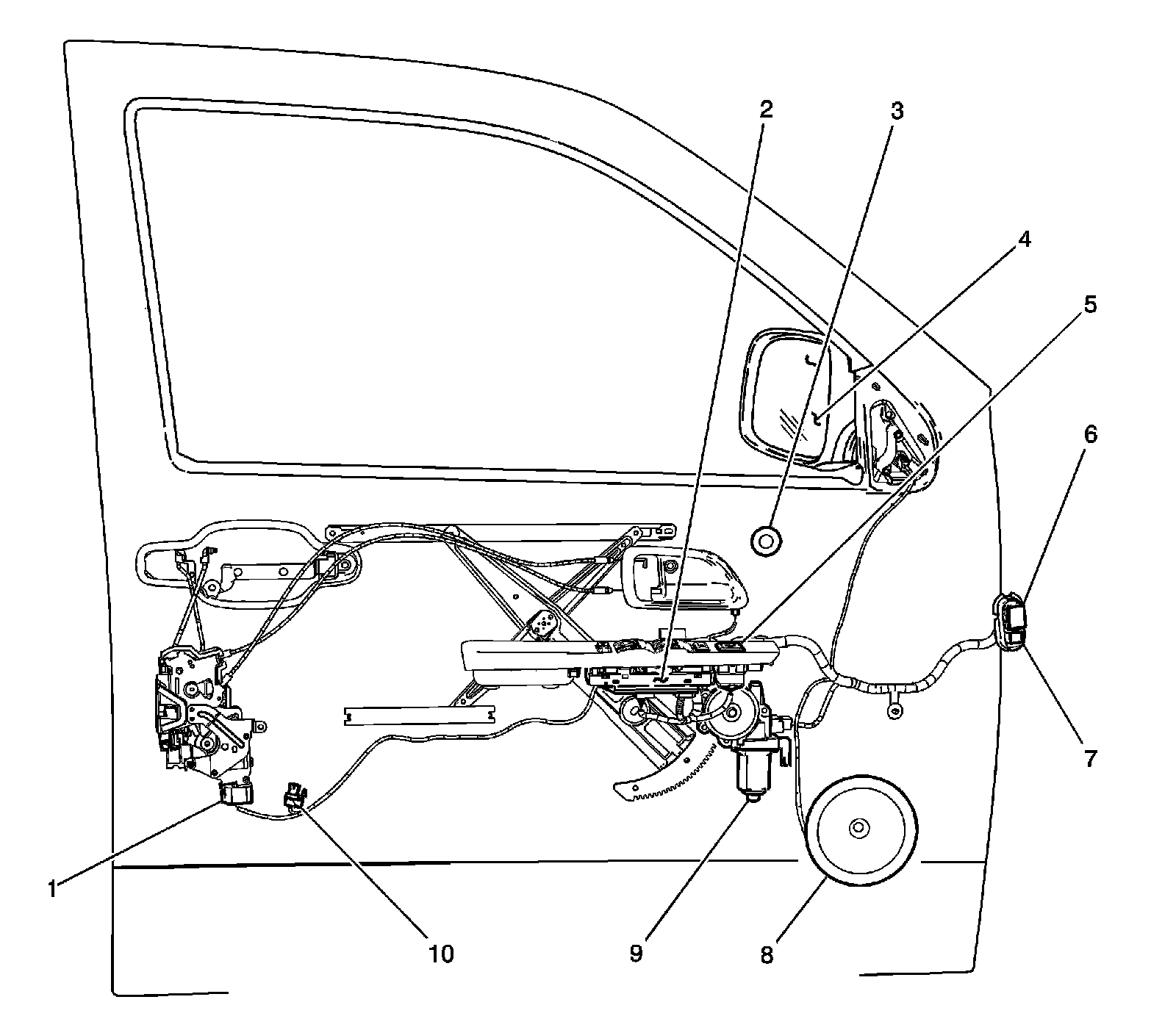

Driver Door




1 - Door Lock Actuator - Driver
2 - Door Lock and Window Switch - Driver
3 - Speaker - LF Door Tweeter (UQ2)
4 - Outside Rearview Mirror - Driver
5 - Outside Rearview Mirror Switch
6 - C202
7 - C209
8 - Speaker - LF Door
9 - Window Motor - Driver
10 - Inflatable Restraint Side Impact Sensor (SIS) - Left Connector (ASF)

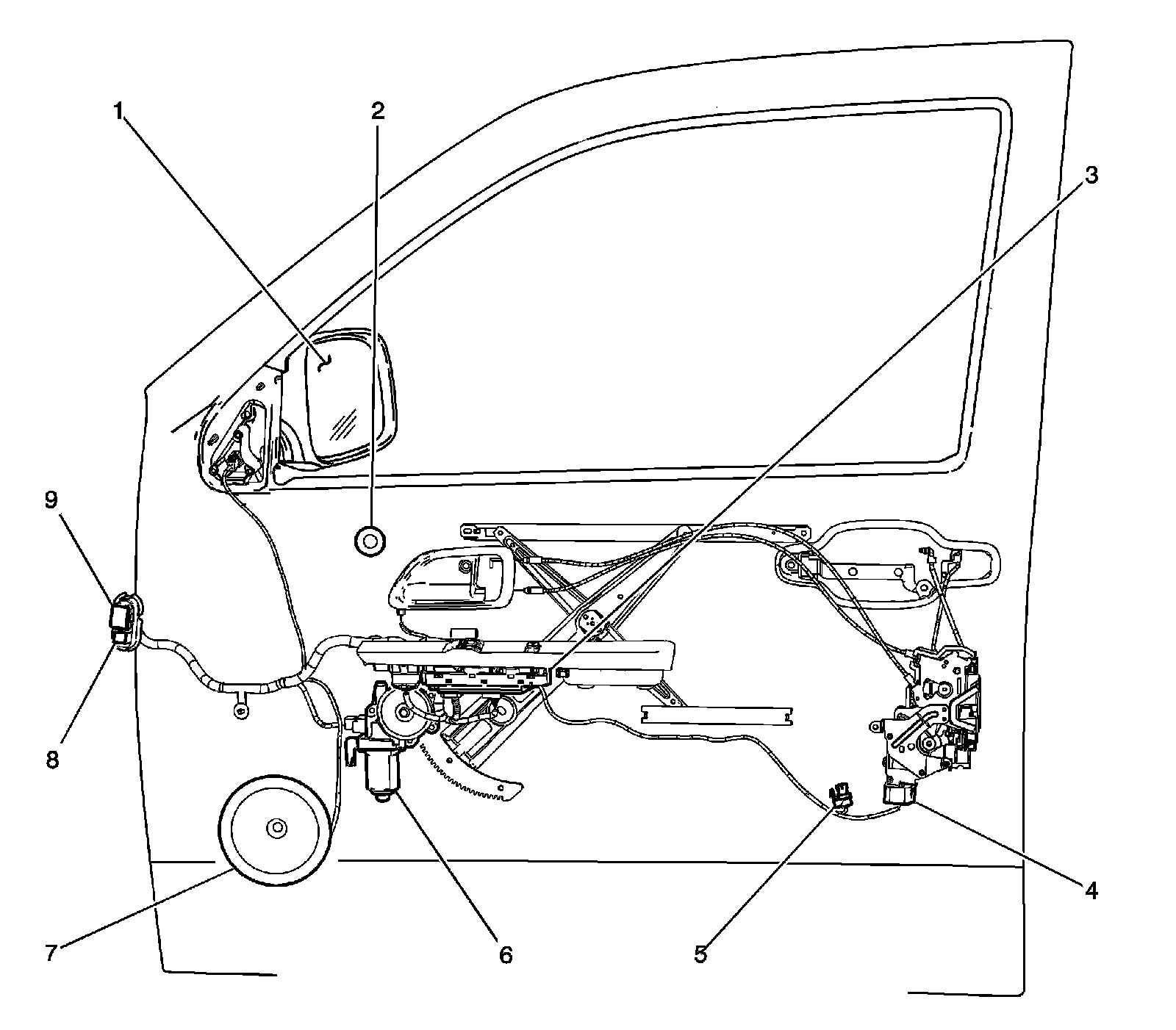

Front Passenger Door

Front Passenger Door Harness Routing:

1 - Outside Rearview Mirror - Front Passenger
2 - Speaker - RF Door Tweeter (UQ2)
3 - Door Lock and Window Switch - Front Passenger
4 - Door Lock Actuator - Front Passenger
5 - Inflatable Restraint Side Impact Sensor (SIS) - Right Connector (ASF)
6 - Window Motor - Front Passenger
7 - Speaker - RF Door
8 - C211
9 - C210

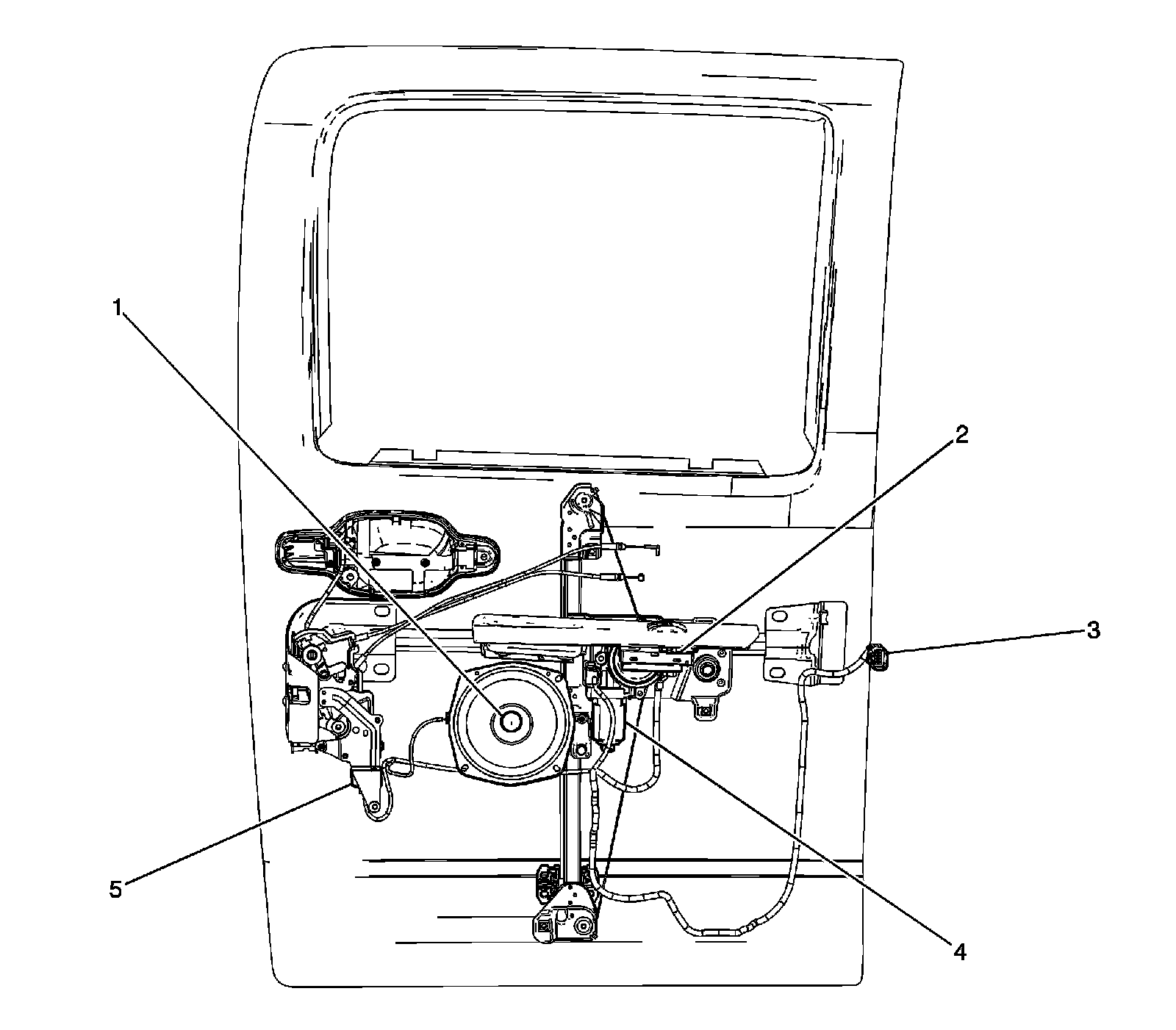

Left Rear Door (Crew Cab)

Left Rear Door Harness Routing (Crew Cab):

1 - Speaker - LR Door
2 - Door Lock and Window Switch - LR
3 - C316
4 - Window Motor - LR
5 - Door Lock Actuator - LR

Right Rear Door (Crew Cab)

Right Rear Door Harness Routing (Crew Cab):

1 - Door Lock and Window Switch - RR
2 - Speaker - RR Door
3 - Door Lock Actuator - RR
4 - Window Motor - RR
5 - C317
