Transfer Case Leak Diagnosis
Transfer Case
Leak Diagnosis

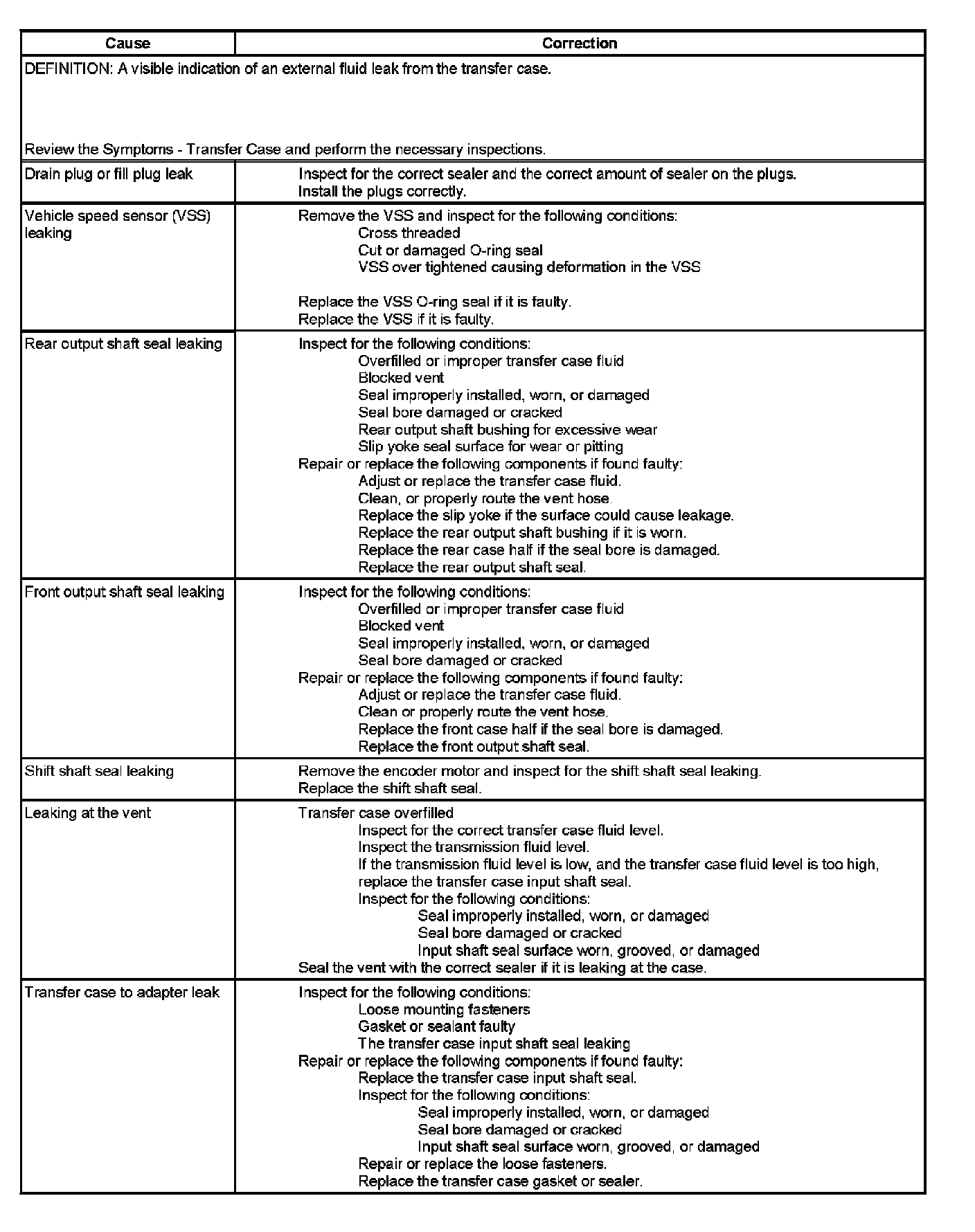

Transfer Case Leak Diagnosis (part 1):

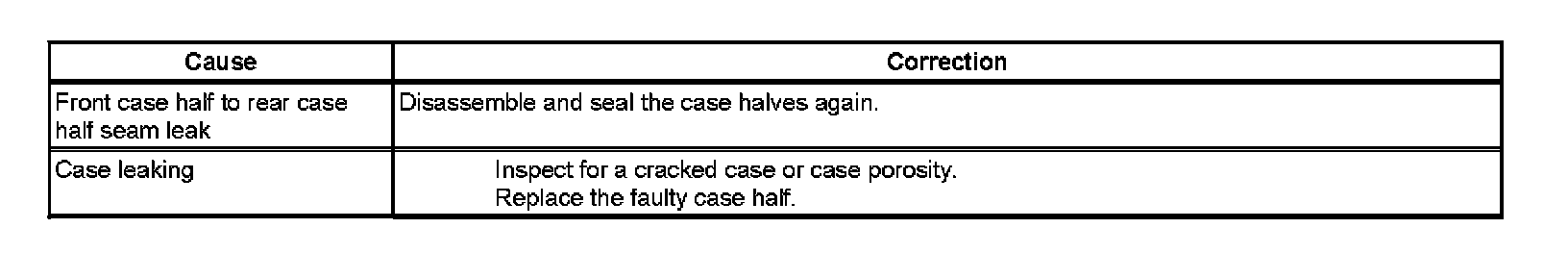

Transfer Case Leak Diagnosis (part 2):
