Home >> Hummer >> 2007 >> H3 L5-3.7L >> Repair and Diagnosis >> Transmission and Drivetrain >> Transfer Case >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Transfer Case Clunk in 4LO Lock

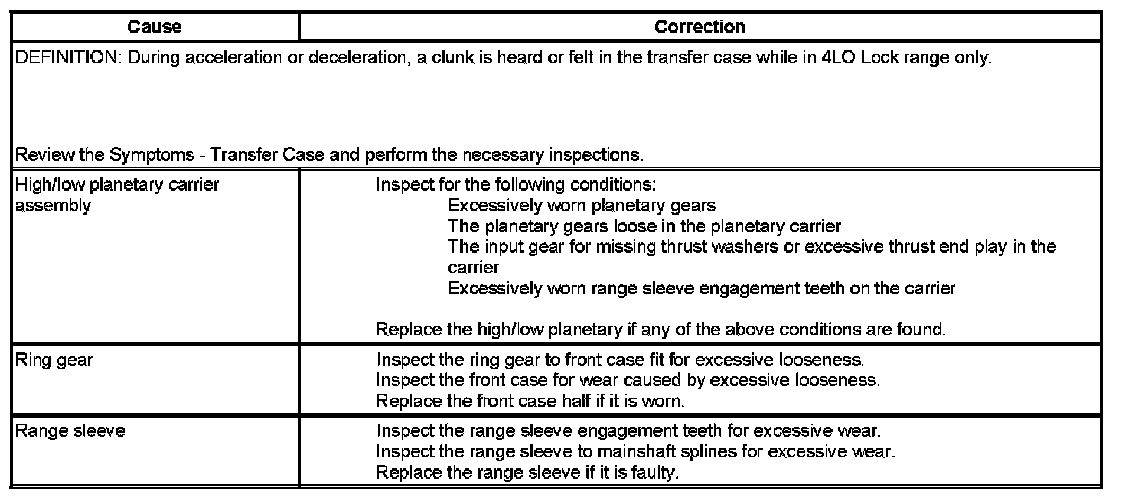

Transfer Case Clunk in 4LO Lock



Transfer Case Clunk in 4LO Lock

Transfer Case Clunk in 4LO Lock:
