Home >> Hummer >> 2007 >> H3 L5-3.7L >> Repair and Diagnosis >> Transmission and Drivetrain >> Transfer Case >> Service and Repair >> Removal and Replacement >> Transfer Case Shield Replacement

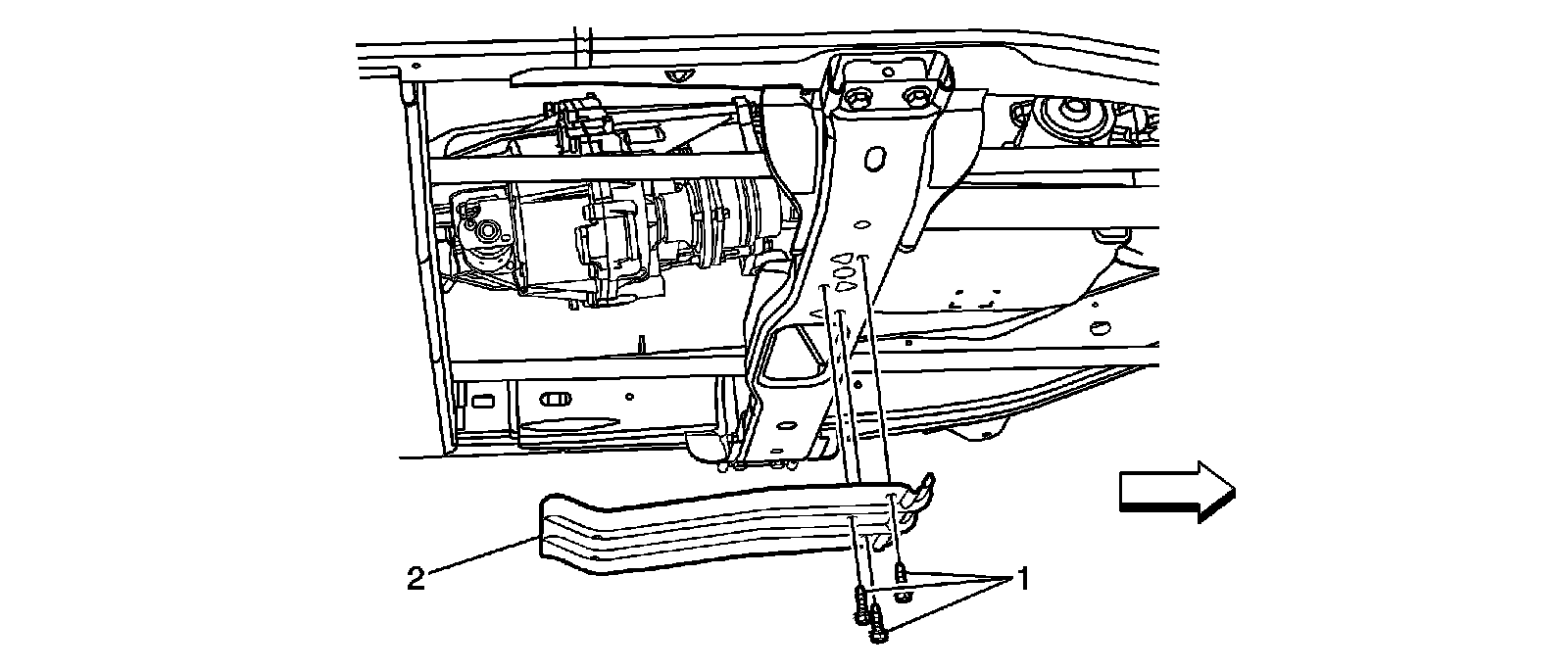

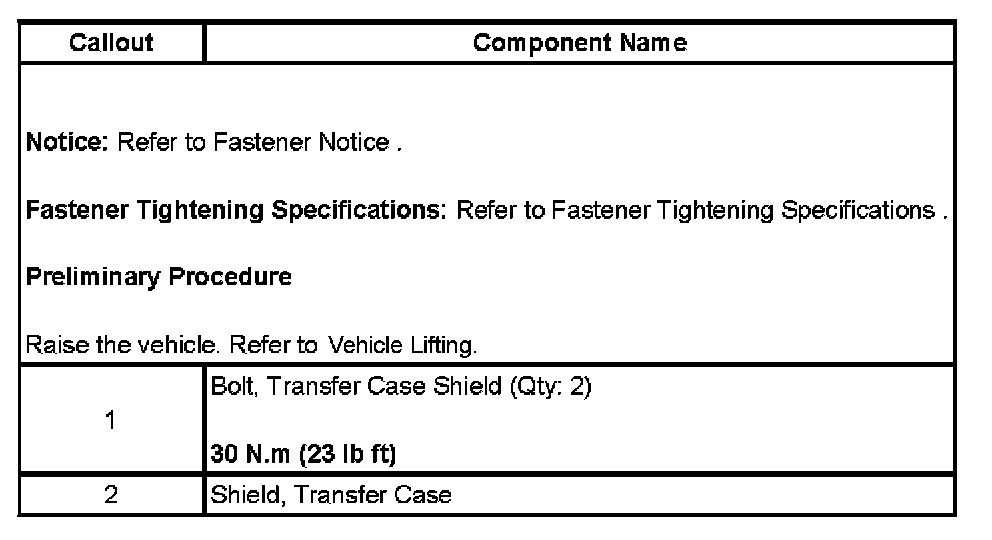

Transfer Case Shield Replacement



Transfer Case Shield Replacement
