Home >> Hummer >> 2007 >> H3 L5-3.7L >> Repair and Diagnosis >> Transmission and Drivetrain >> Transfer Case >> Seals and Gaskets >> Service and Repair >> Transfer Case Output Shaft Seal Replacement - Rear

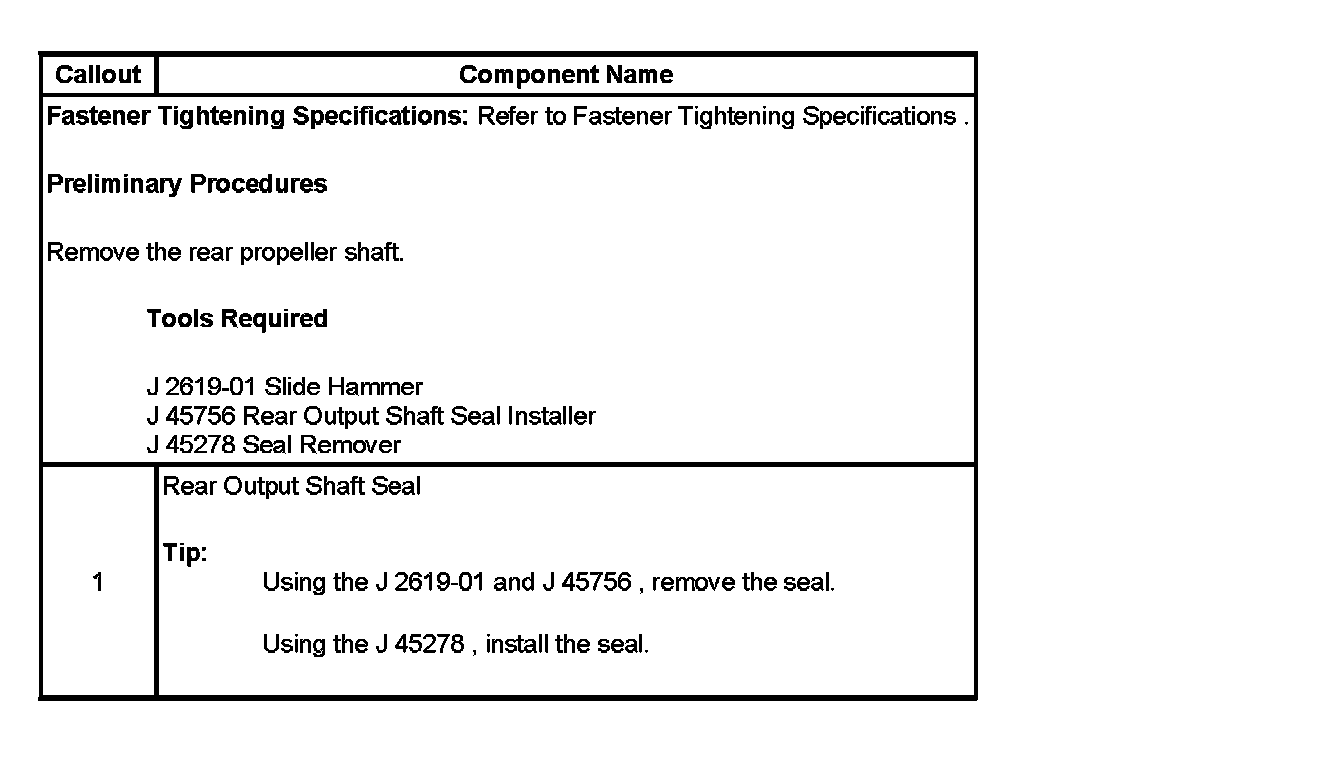

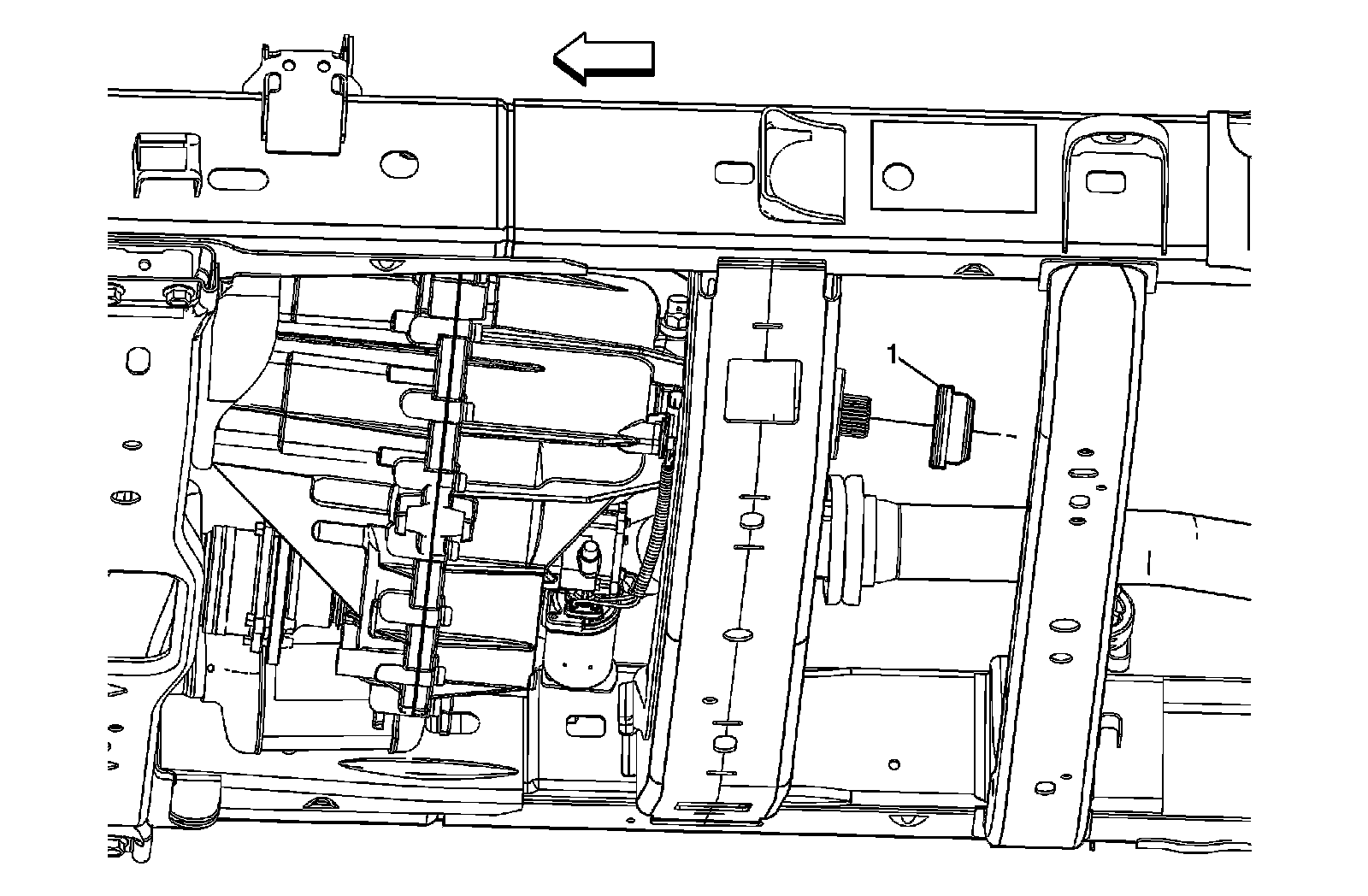

Transfer Case Output Shaft Seal Replacement - Rear



Transfer Case Output Shaft Seal Replacement - Rear
