Transmission Clearance Specifications



Transmission Clearance Specifications

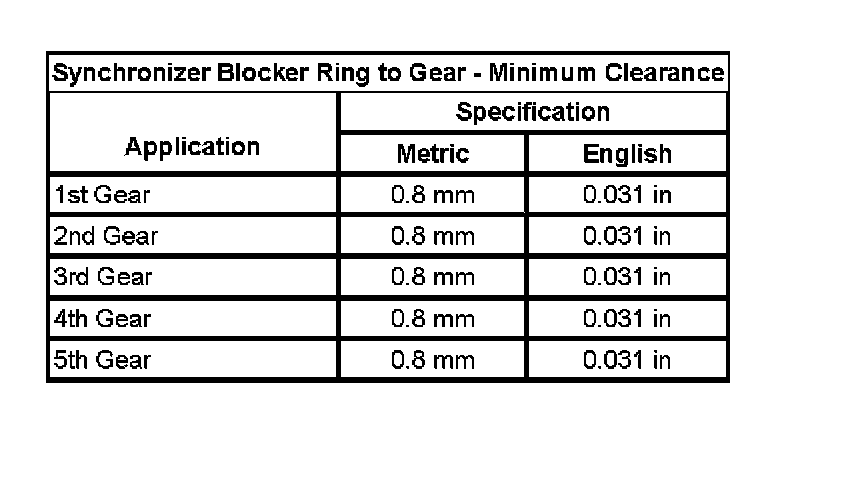

Transmission Clearance Specifications (part 1):

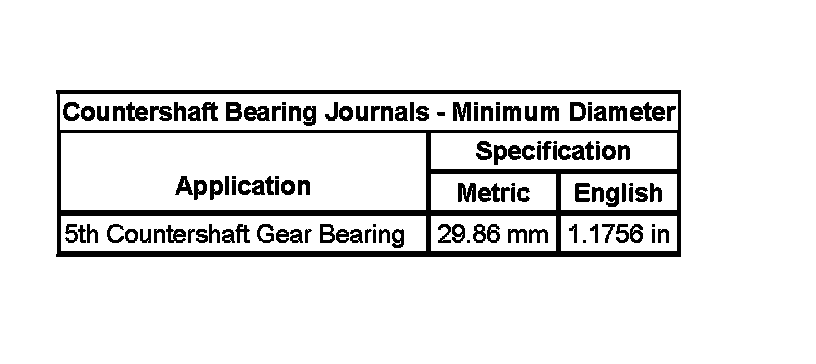

Transmission Clearance Specifications (part 2):

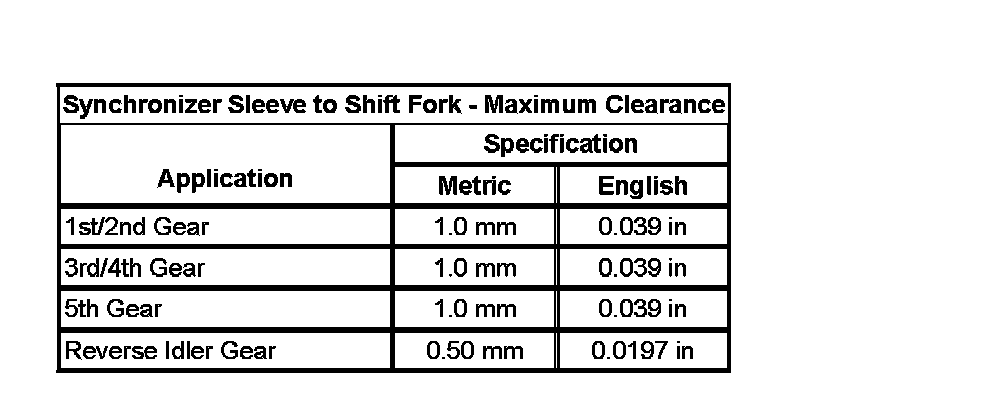

Transmission Clearance Specifications (part 3):

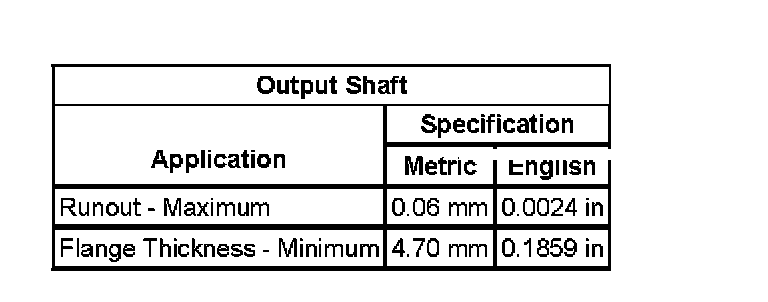

Transmission Clearance Specifications (part 4):

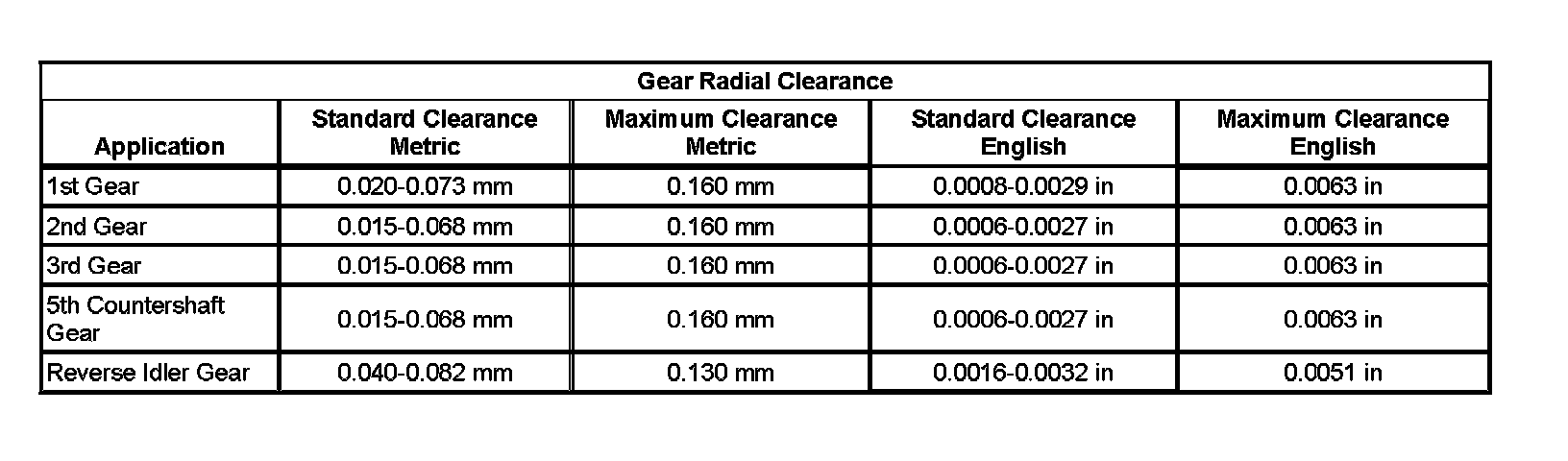

Transmission Clearance Specifications (part 5):

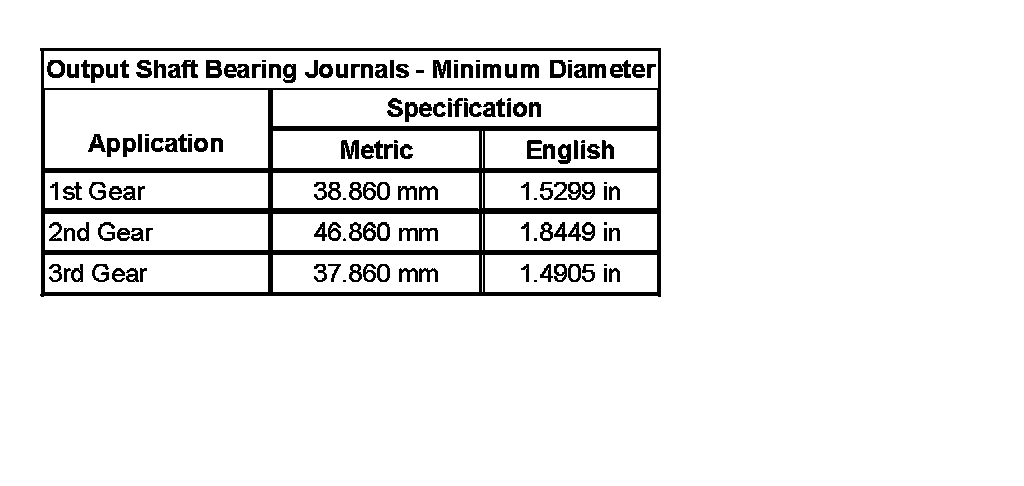

Transmission Clearance Specifications (part 6):

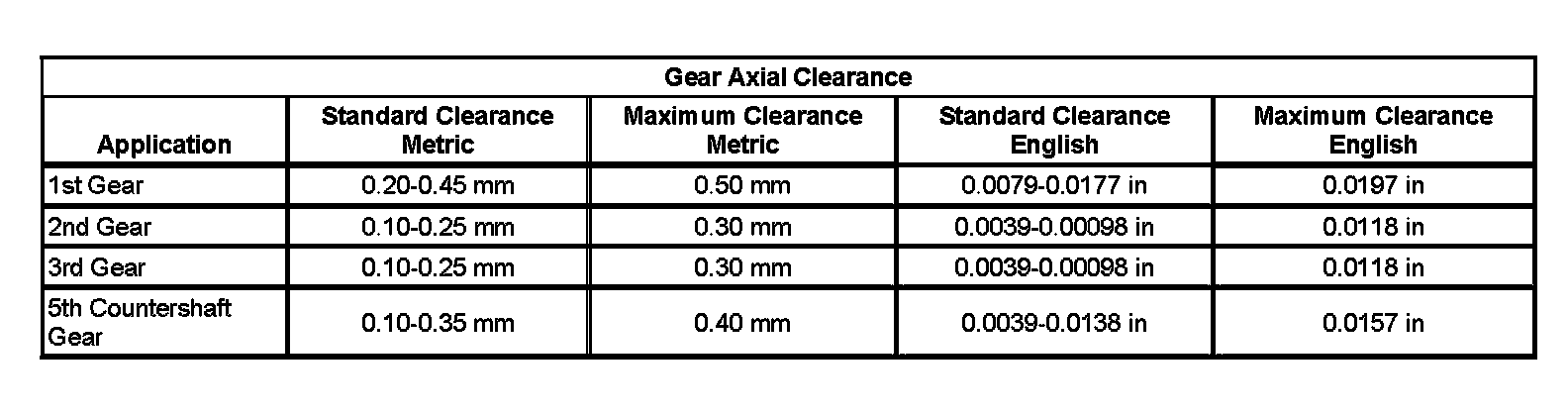

Transmission Clearance Specifications (part 7):
