Transmission Housing Oil Seal Replacement - Rear

Transmission Housing Oil Seal Replacement - Rear

Tools Required
* J 6125-1B Slide Hammer
* J 23129 Universal Seal Remover
* J 45867 4WD Output Shaft Seal Installer

Removal Procedure

1. Remove the transfer case assembly.

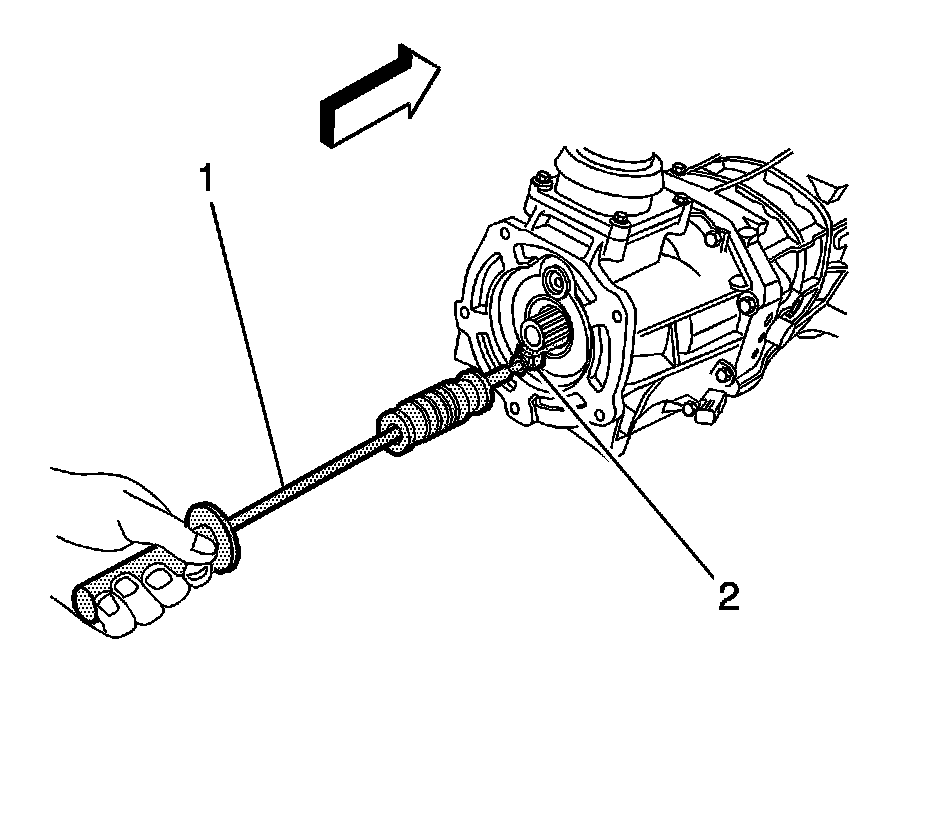

2. Using the J 6125-1B (1) and J 23129 (2) remove the rear transmission housing oil seal from the housing.

Installation Procedure




1. Using the J 45867 and a hammer, install the NEW rear transmission housing oil seal.
2. Check the transmission fluid level. Add if necessary. Refer to Transmission Fluid Replacement.
3. Install the transfer case assembly.
