Manual Transmission Component Views

Manual Transmission Component Views

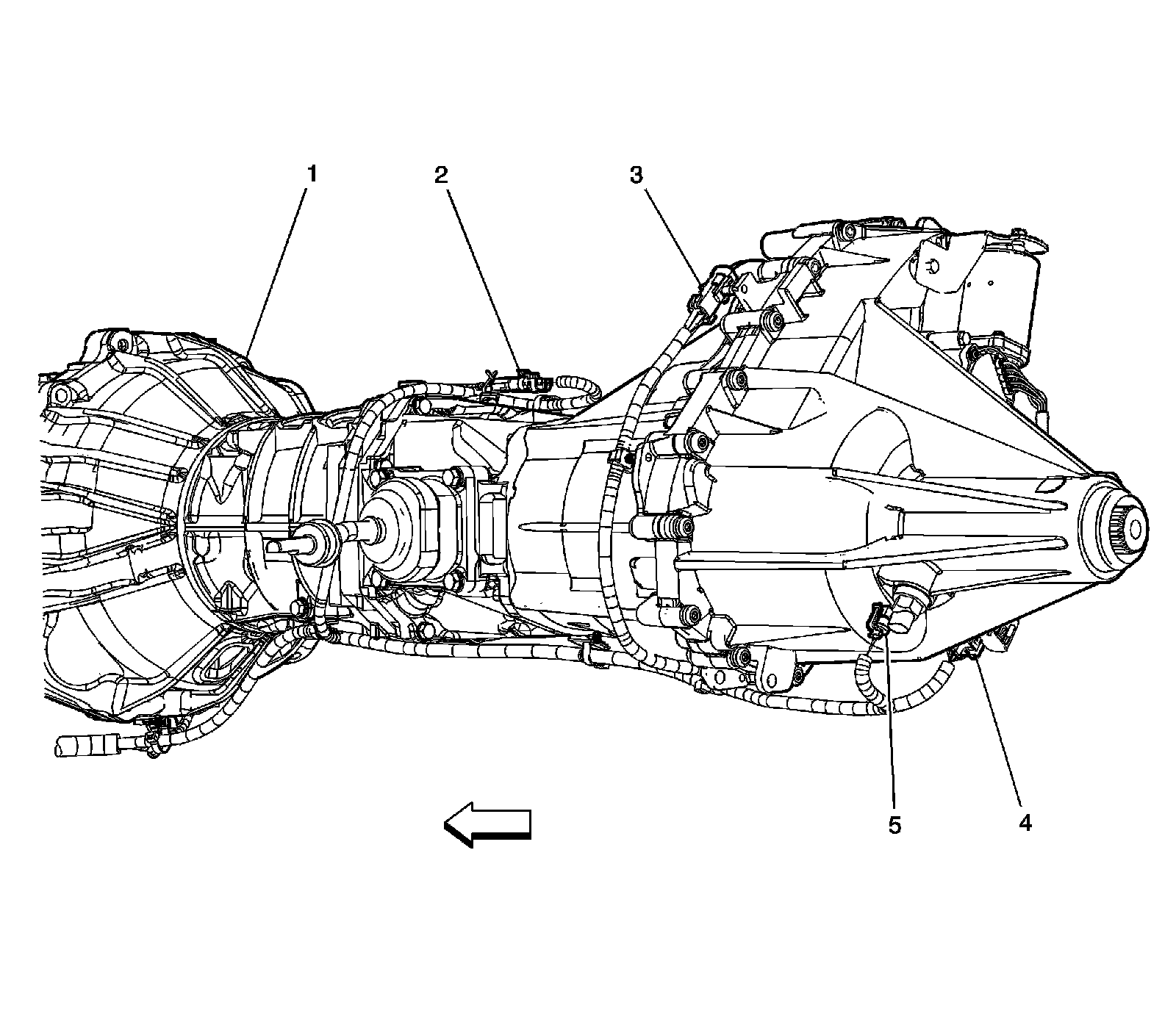

Engine Harness - Rear (MA5)

Engine Harness - Rear (MA5):

1 - Transmission Case
2 - Backup Lamp Switch
3 - Heated Oxygen Sensor (HO2S) 2
4 - Transfer Case Encoder Motor Connector
5 - Vehicle Speed Sensor (VSS) Connector
