Home >> Hummer >> 2007 >> H3 L5-3.7L >> Repair and Diagnosis >> Transmission and Drivetrain >> Drive/Propeller Shafts, Bearings and Joints >> Drive/Propeller Shaft >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Leak at Front Slip Yoke

Leak at Front Slip Yoke

Leak at Front Slip Yoke

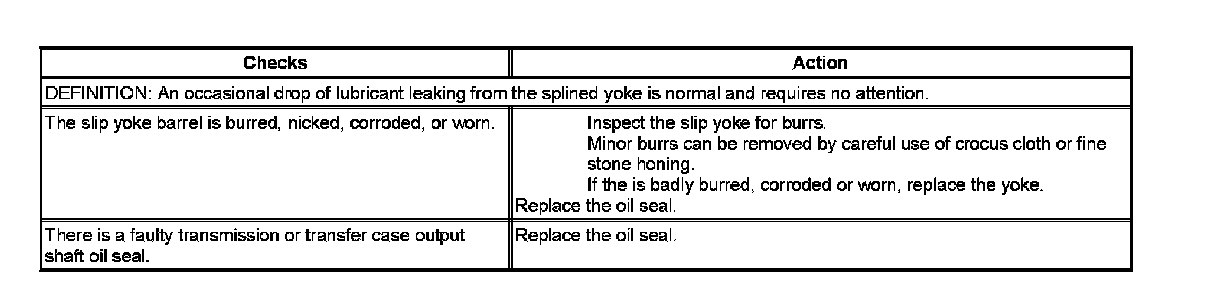

Leak At Front Slip Yoke:
