Rear Drive Axle
>>

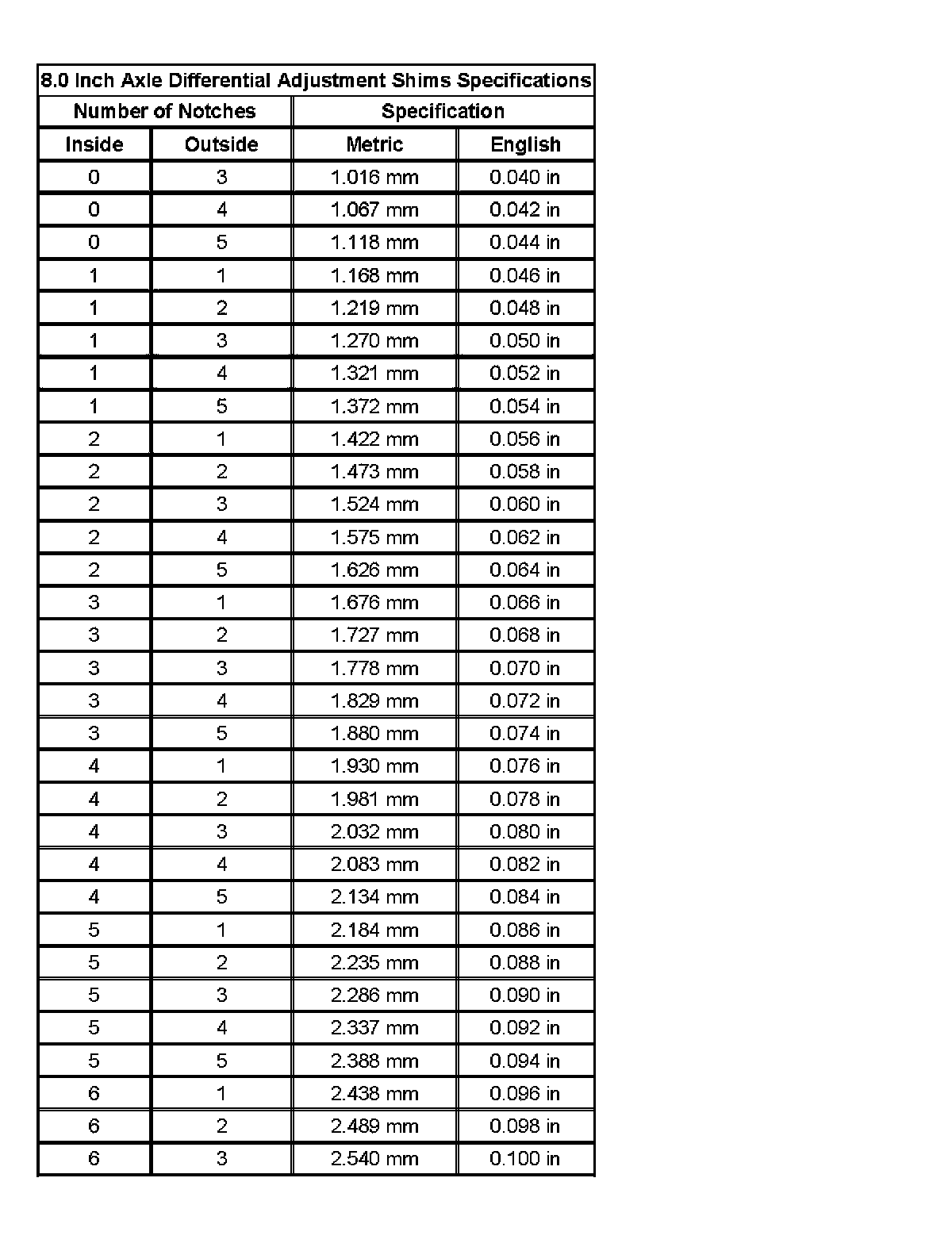

Differential Adjustment Shim Specifications
Differential Adjustment Shim Specifications
Differential Adjustment Shim Specifications
Differential Adjustment Shim Specifications:
