Rear Axle Lubricant Replacement

Rear Axle Lubricant Replacement

Removal Procedure

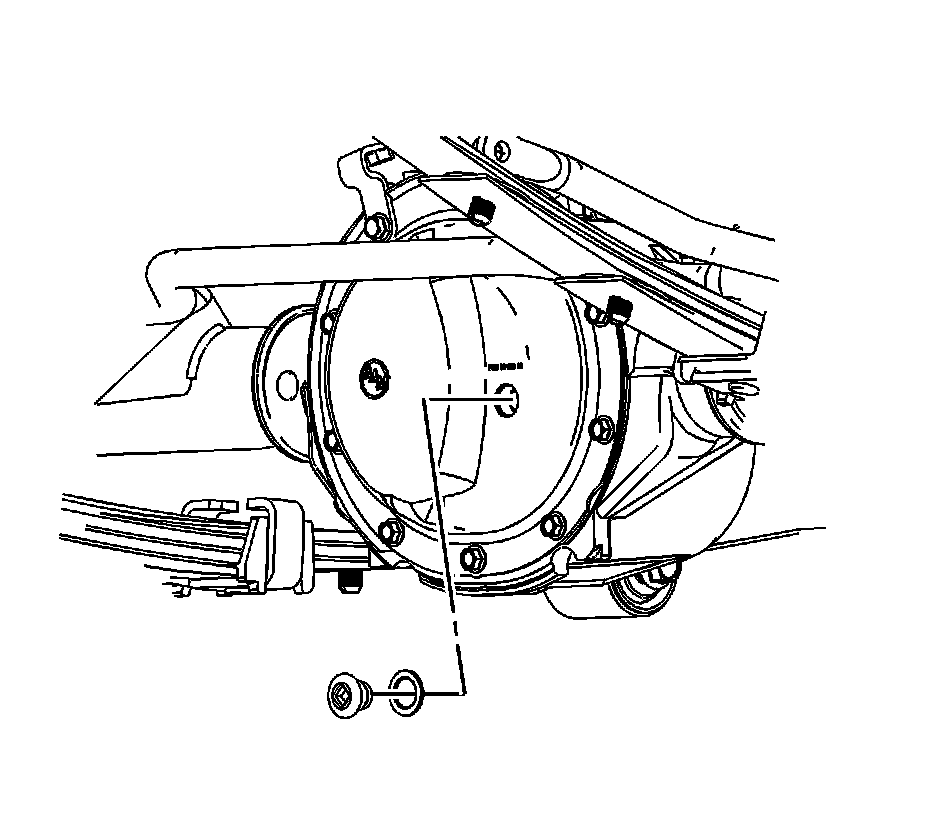

1. Clean the area around the rear axle fill plug.

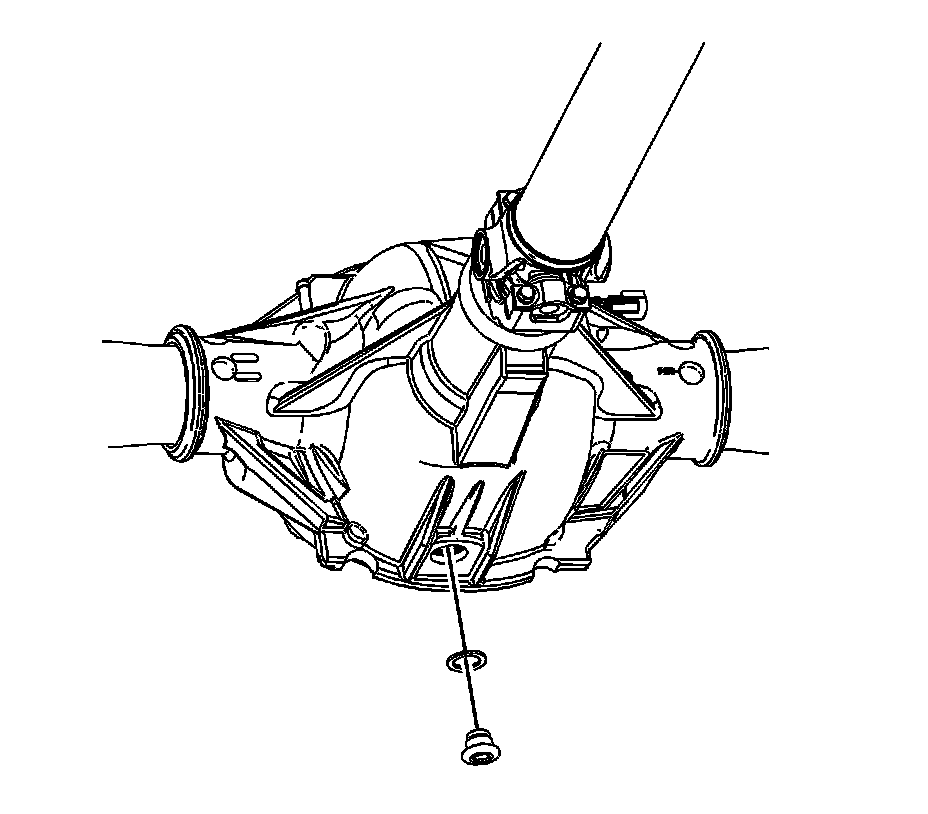

2. Remove the rear axle drain plug and drain the lubricant into a suitable container.

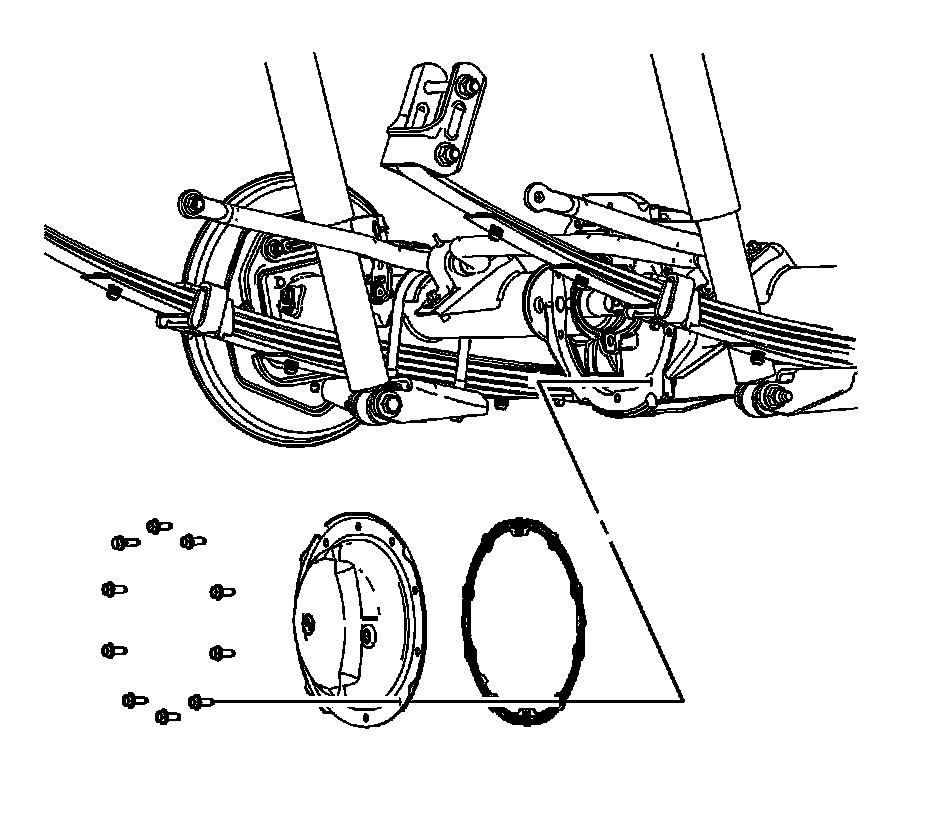

3. Remove the rear axle cover.

Installation Procedure





Important: A new gasket is not required unless the gasket is damaged.

1. Install the rear axle cover.





Notice: Refer to Fastener Notice.

2. Install the drain plug.

Tighten the drain plug to 33 N.m (24 lb ft).

3. Fill the rear axle with axle lubricant. Use the proper fluid. Refer to Approximate Fluid Capacities and Fluid and Lubricant Recommendations.
4. Inspect the fluid level.
