Drive Pinion Bearings Replacement

Drive Pinion Bearings Replacement

Tools Required
* J 8092 Driver Handle 3/4 in - 10
* J 8608 Rear Pinion Bearing Race Installer, 8.6 inch, 11.5 inch axle
* J 8611-01 Rear Pinion Bearing Race Installer
* J 8614-01 Flange and Pulley Holding Tool
* J 22388 Rear Axle Pinion Oil Seal Installer, 8.6 inch
* J 22912-B Split Plate Bearing Puller
* J 24433 Pinion Cone and Side Bearing Installer, 8.6 inch axle
* J 45871 Pinion Bearing Remover
* J 45900 Pinion Bearing Cup Installer, 8.6 in axle

Removal Procedure

1. Raise the vehicle. refer to vehicle lifting.
2. Remove the differential assembly.
3. Remove the drive pinion from the axle.

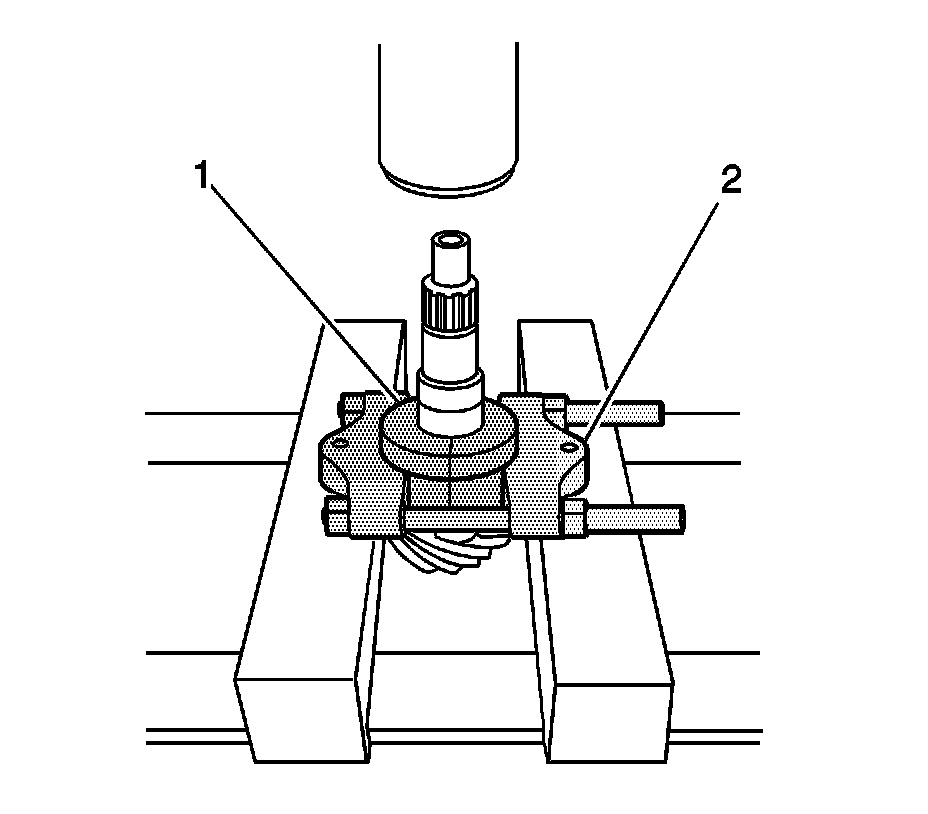

4. For the 8.6 inch axle, install the J 45871 (1) around the pinion bearing and the J 22912-B (2) in the inverted position around the J 45871.
5. Press the bearing off of the pinion using the J 45871 and the J 22912-B.




6. Remove the shim.




7. Remove the outer pinion bearing cup from the axle housing using a hammer and a brass drift in the slots provided. Move the drift back and forth between one side of the cup and the other in order to work the cups out of the housing evenly.




8. Remove the inner pinion bearing cup from the axle housing using a hammer and a brass drift in the slots provided. Move the drift back and forth between one side of the cup and the other in order to work the cups out of the housing evenly.

Installation Procedure




1. Install the outer pinion bearing cup using the J 8611-01, 8.6 inch axle (2) and the J 8092 (1).




2. Install the inner pinion bearing cup using the J 45900, 8.6 inch axle (2) and the J 8092 (1).
3. Determine the selective shim thickness for the pinion. Refer to Pinion Depth Adjustment. Pinion Depth Adjustment




4. Install the selective shim between the inner pinion bearing and the shoulder on the gear.
5. Install the inner pinion bearing using the J 24433, 8.6 inch axle.
Press the bearing on until the cone seats on the pinion shim.
6. Install a new collapsible spacer.
7. Lubricate the pinion bearings with axle lubricant. Use the proper fluid. Refer to Fluid and Lubricant Recommendations.
8. Install the outer pinion bearing into the axle housing.




9. Install a new pinion oil seal using the J 22388, 8.6 inch.
10. Install the pinion into the axle housing.
11. Apply sealant, GM P/N 12346004 (Canadian P/N 10953480), or equivalent to the splines of the pinion yoke.




12. Install the pinion yoke.
Align the marks made during removal.
13. Seat the pinion yoke onto the pinion shaft by tapping it with a soft-faced hammer until a few pinion shaft threads show through the yoke.
14. Install the washer and a new pinion nut.

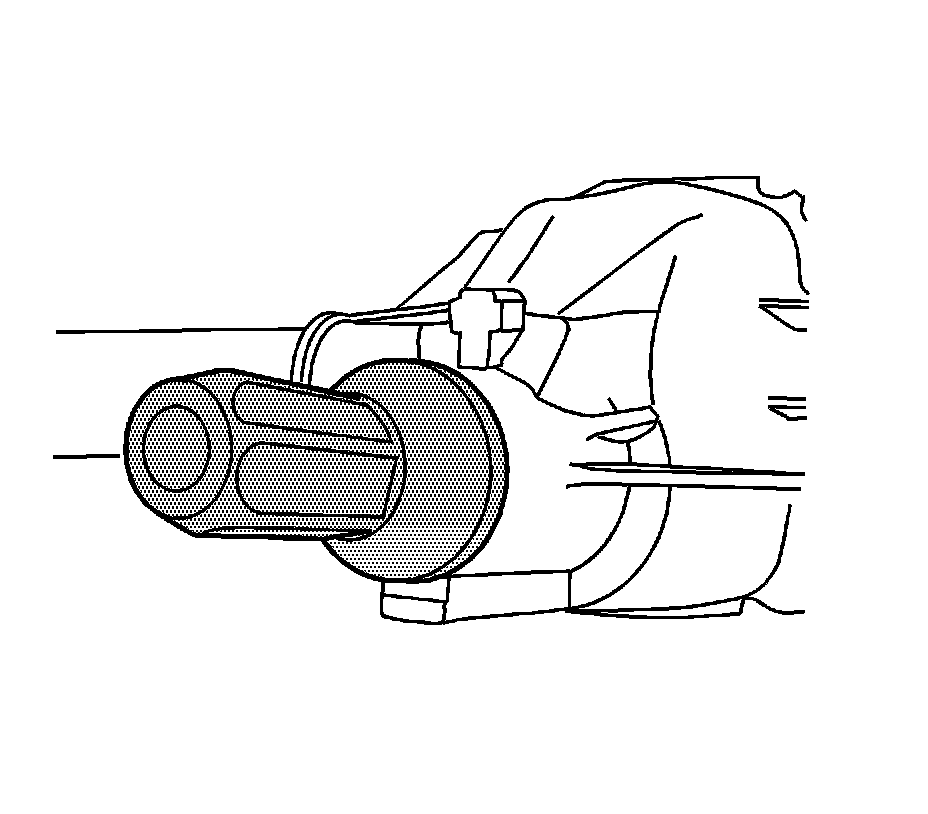

15. Install the J 8614-01 onto the pinion yoke as shown.

Notice: Refer to Fastener Notice.

Important: If the rotating torque is exceeded, the pinion will have to be removed and a new collapsible spacer installed.

16. Tighten the pinion nut while holding the J 8614-01.

Tighten the pinion nut until the pinion end play is just taken up. Rotate the pinion while tightening the nut to seat the bearings.




17. Measure the rotating torque of the pinion using an inch-pound torque wrench.

The rotating torque of the pinion should be between 1.0-2.3 N.m (10-20 lb in) for used bearings, or 1.7-3.4 N.m (15-30 lb in) for new bearings.

18. If the rotating torque measurement is below 1.0 N.m (10 lb in) for used bearings, or 1.7 N.m (15 lb in) for new bearings, continue to tighten the pinion nut.

Tighten the pinion nut, in small increments, as needed, until the torque required in order to rotate the pinion is between 1.0-2.3 N.m (10-20 lb in) for used bearings, or 1.7-3.4 N.m (15-30 lb in) for new bearings.

19. Once the specified torque is obtained, rotate the pinion several times to ensure the bearings have seated.
Inspect the rotating torque and adjust if necessary.
20. Install the differential assembly.
21. Fill the axle with lubricant. Use the proper fluid. Refer to Rear Axle Lubricant Replacement.
22. Lower the vehicle.
