Front Drive Axle Clutch Shaft Bearing Replacement

Front Drive Axle Clutch Shaft Bearing Replacement

Tools Required
* J 29369-1 Bushing and Bearing Remover
* J 2619-01 Slide Hammer and Adapter
* J 45233 Differential Bearing Adjuster Needle Bearing Replacer - RH
* J 8092 Universal Driver Handle - 3/4 in - 10

Removal Procedure




1. Remove the inner drive shaft.




2. Install the inner shaft in a clamping devise.
3. Install the J 29369-1 to the J 2619-01.

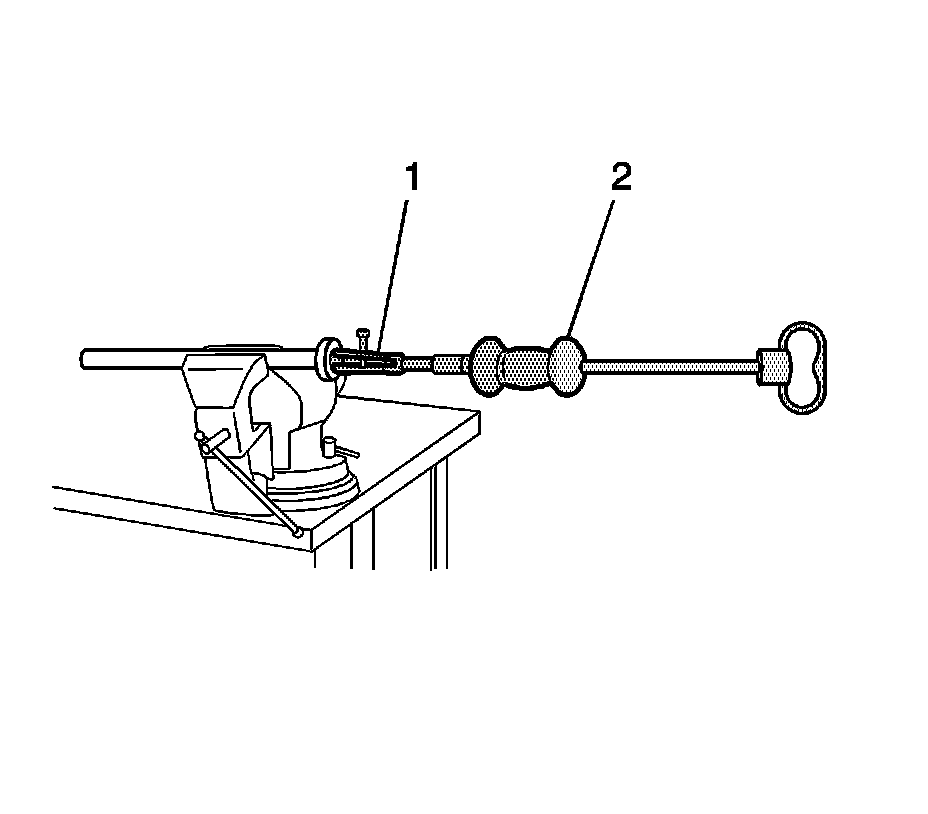

4. Using the J 29369-1 (1) and the J 2619-01 (2), remove the clutch bearing.

Installation Procedure




1. Install the J 45233 to the J 8092.

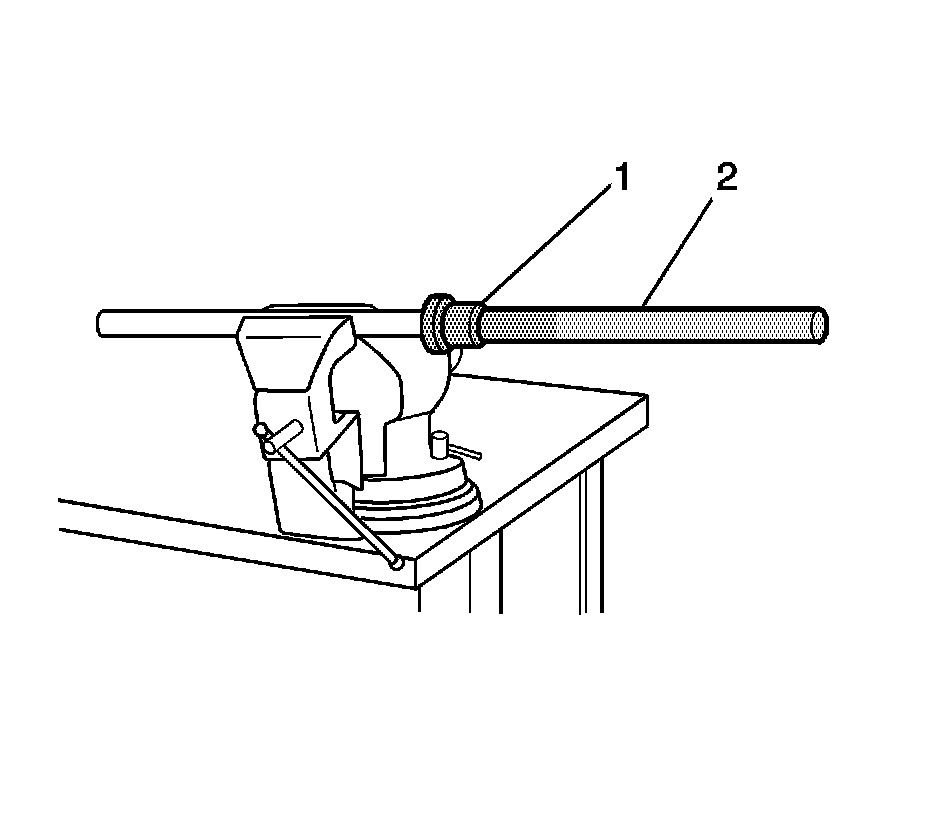

2. Using the J 45233 (1) and the J 8092 (2), install the clutch bearing.
3. Remove the inner shaft from the clamping devise.




4. Install the inner shaft.
