Torque Converter Clutch (TCC) Solenoid Valve, Wiring Harness Side



Torque Converter Clutch (TCC) Solenoid Valve, Wiring Harness Side

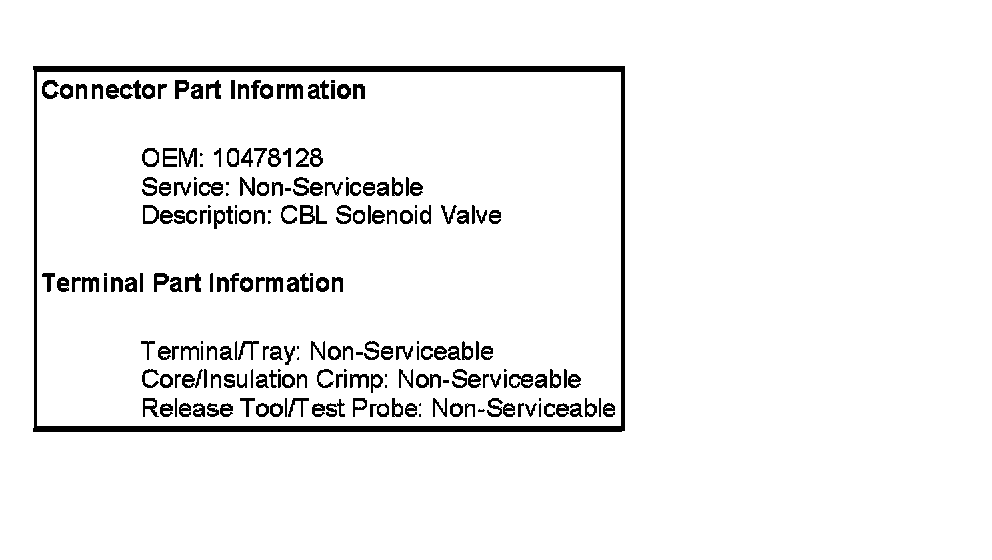

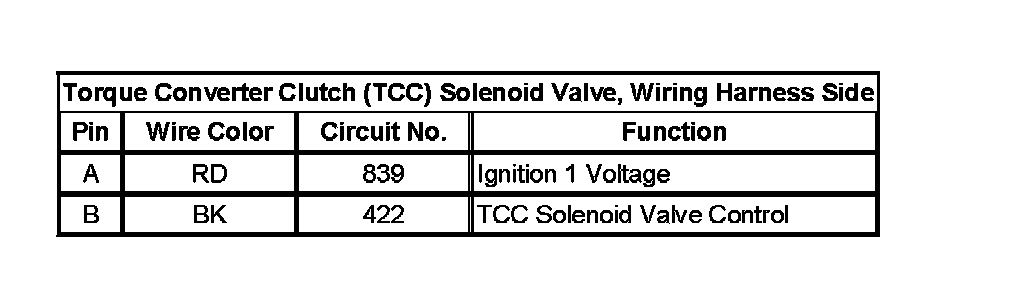

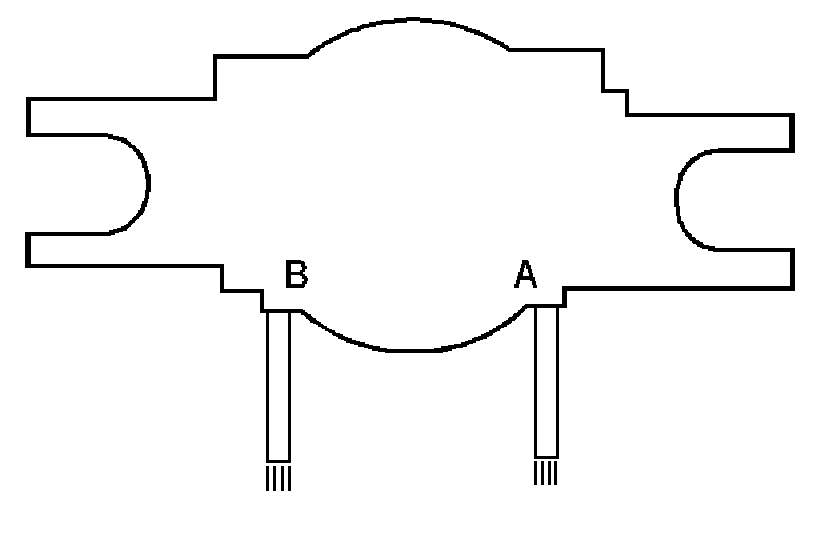

Torque Converter Clutch (TCC) Solenoid Valve, Wiring Harness Side:
