Home >> Hummer >> 2007 >> H3 L5-3.7L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Oil Pressure High or Low

Oil Pressure High or Low

Oil Pressure High or Low

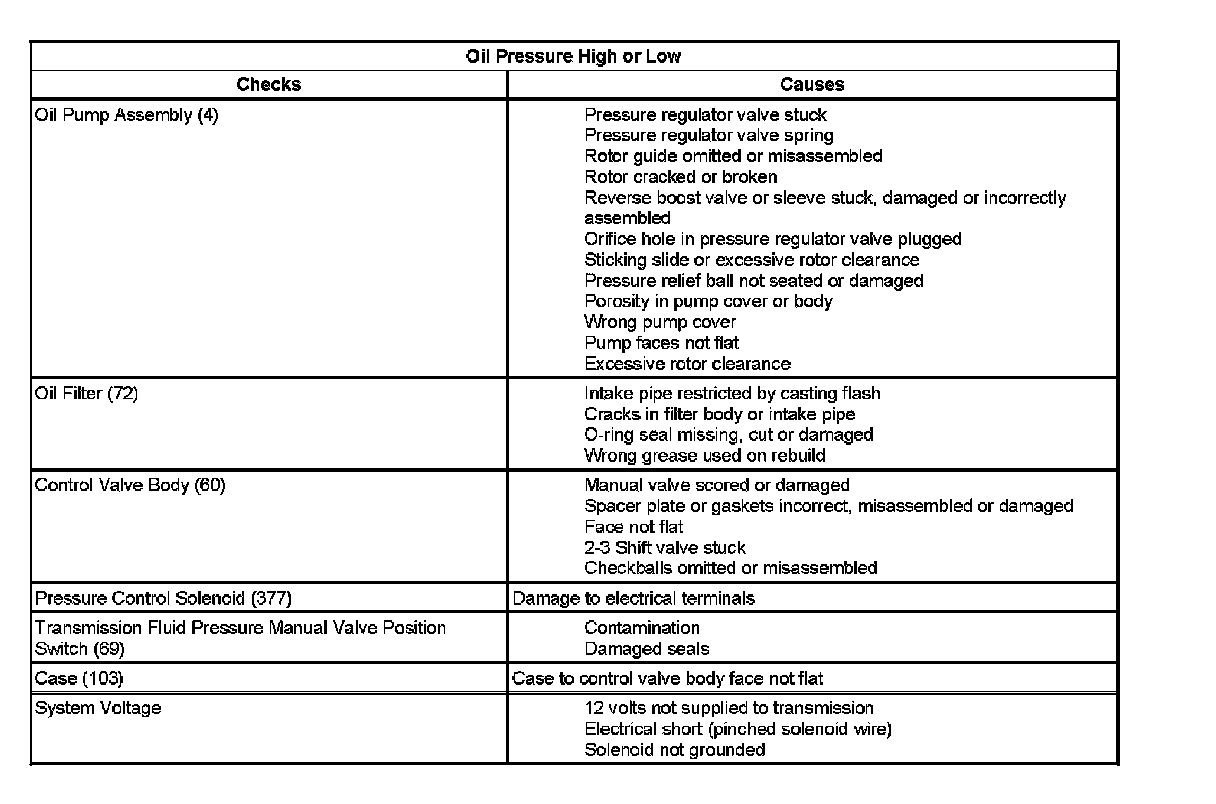

Oil Pressure High or Low:
