Home >> Hummer >> 2007 >> H3 L5-3.7L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Shift Interlock >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Shift Lever Can Be Moved without Brake Pedal Depressed

Shift Lever Can Be Moved without Brake Pedal Depressed



Shift Lever Can Be Moved without Brake Pedal Depressed

Step 1 - Step 10:

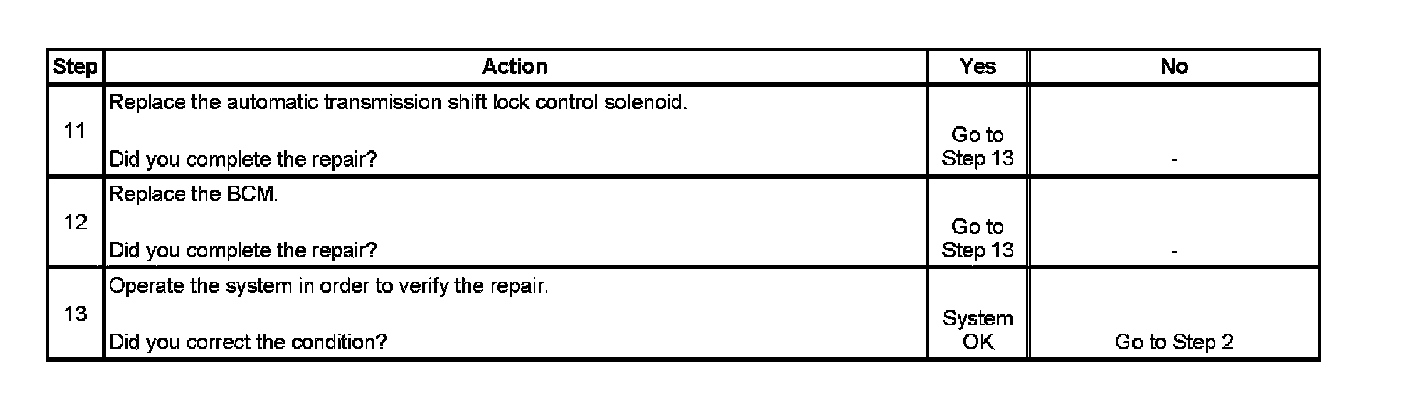

Step 11 - Step 13:
