Turbine Shaft O-Ring Installation



Turbine Shaft O-Ring Installation

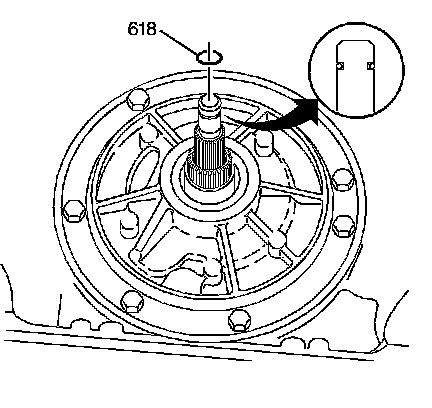

Install the O-ring (618) on the turbine shaft. O-Ring location is location dependent.
