Shackle Bushing Replacement

Shackle Bushing Replacement

Tools Required

J 21474-01 Control Arm Bushing Service Kit

Removal Procedure

1. Remove the spring shackle.
2. Remove the spare tire when servicing the left side bushing.




3. Use a blunt punch to straighten out the bushing flange that comes through the inner frame.

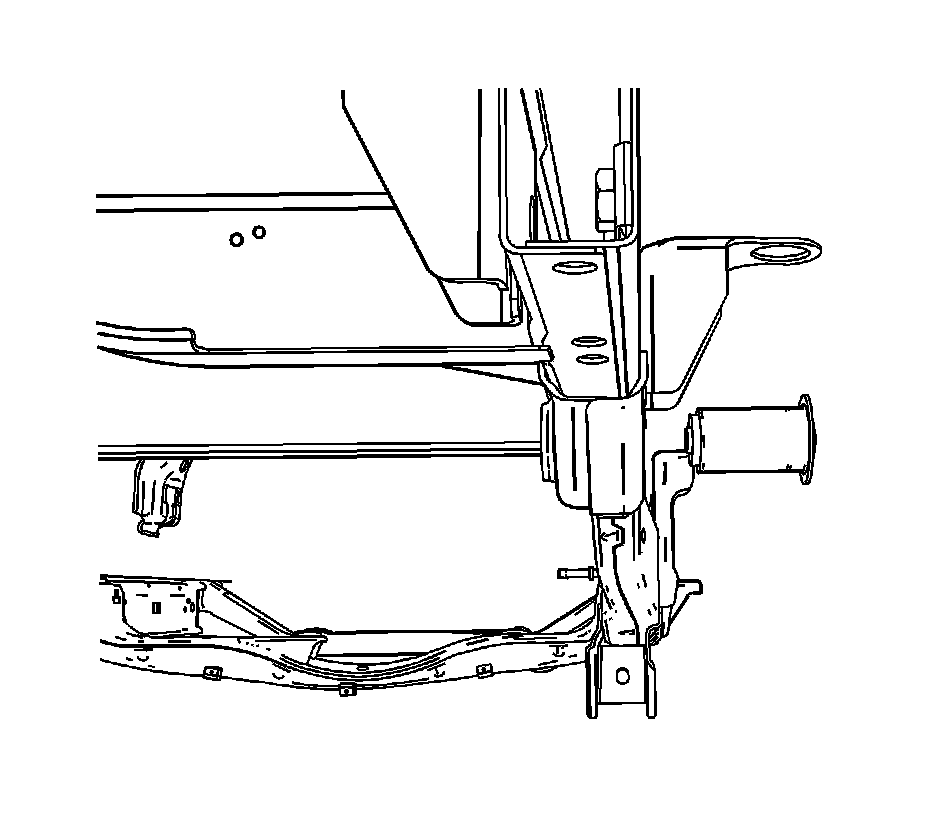

4. Remove the spring shackle bushing using J 21474-01.

Installation Procedure

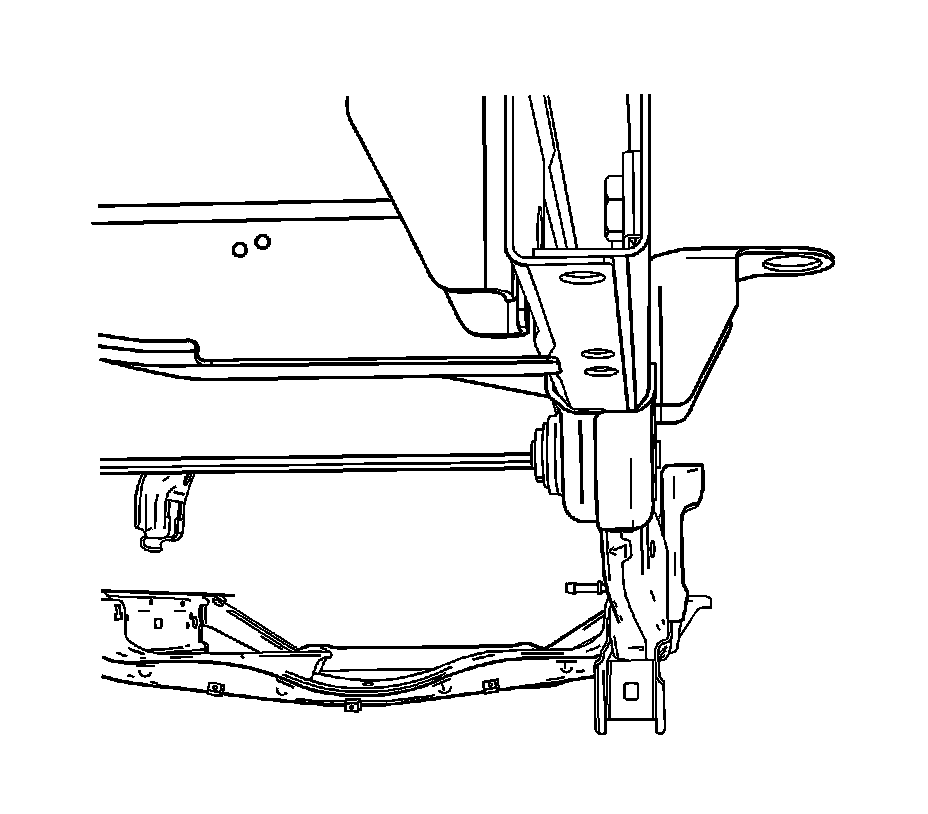

1. Install the new spring shackle bushing using J 21474-01.




2. Pull the spring shackle bushing into the frame rail until the flanged portion of the spring shackle bushing is flush with the rail.

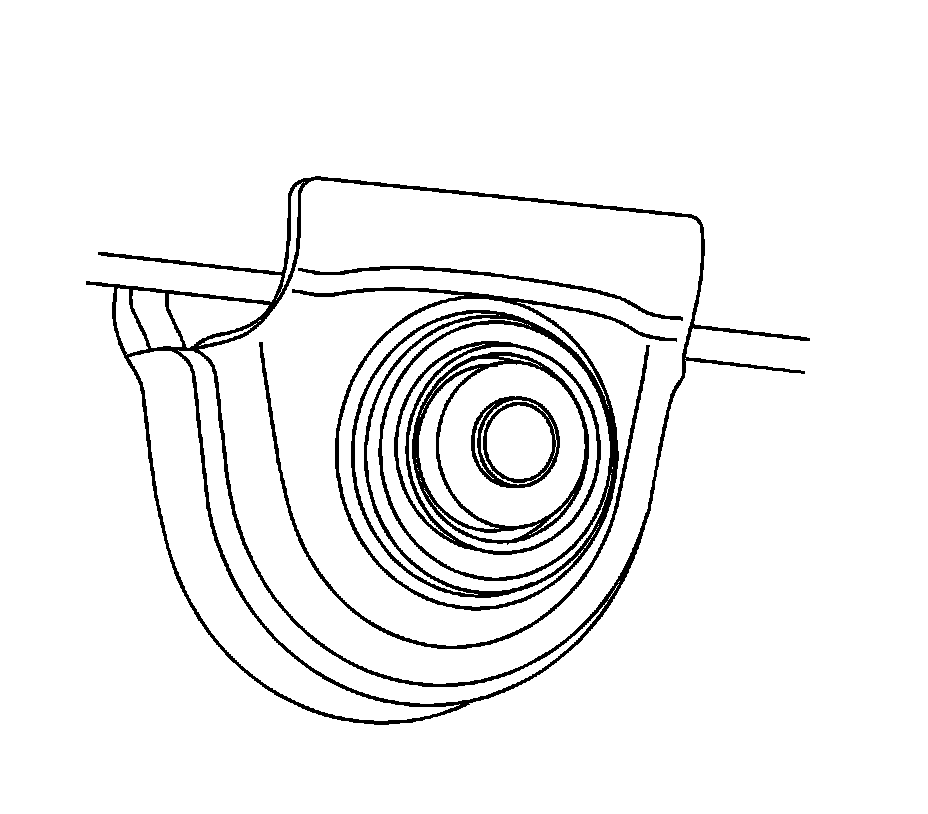

3. Use a blunt punch to stake or flare the spring shackle bushing inner flange.
4. Install the spare tire when servicing the left side bushing.
5. Install the spring shackle.
