Power Steering Pump Bracket Replacement

Power Steering Pump Bracket Replacement

Removal Procedure




1. Remove the power steering pump.
2. Remove the drive belt tensioner.

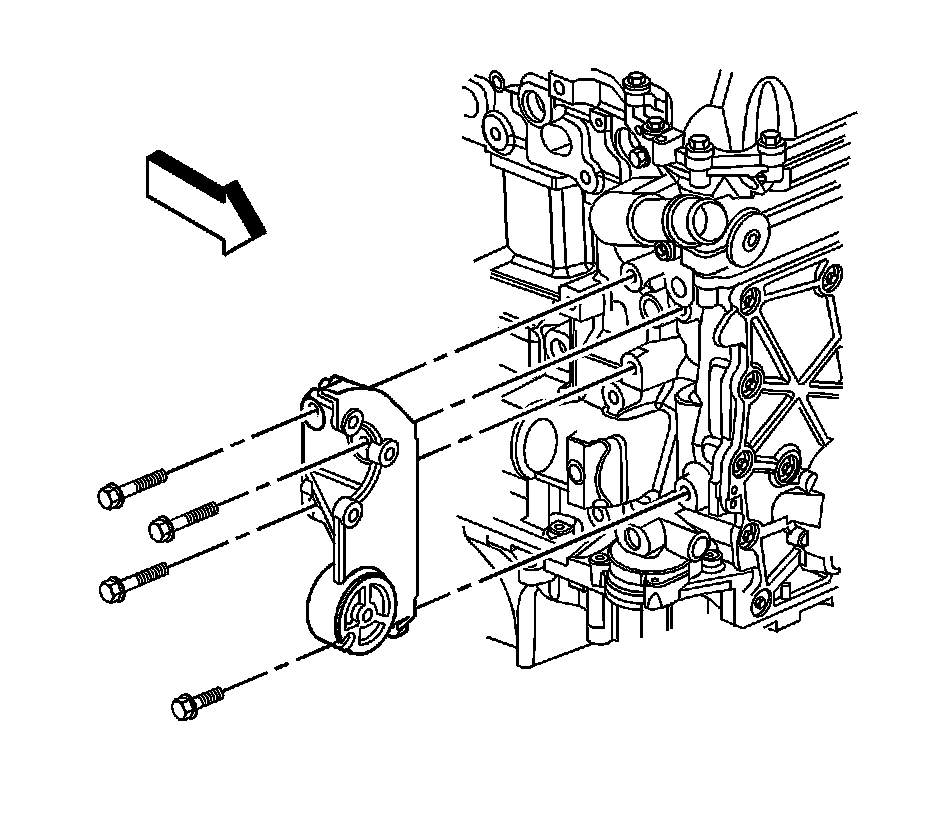

3. Remove the power steering pump bracket mounting bolts.
4. Remove the power steering pump bracket.

Installation Procedure




1. Install the power steering pump bracket.

Notice: Refer to Fastener Notice.

2. Install the power steering pump bracket mounting bolts.

Tighten the power steering pump mounting bolts to 50 N.m (37 lb ft).

3. Install the drive belt tensioner.
4. Install the power steering pump.
