Home >> Hummer >> 2007 >> H3 L5-3.7L >> Repair and Diagnosis >> Starting and Charging >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Starter Solenoid Does Not Click

Starter Solenoid Does Not Click



Starter Solenoid Does Not Click

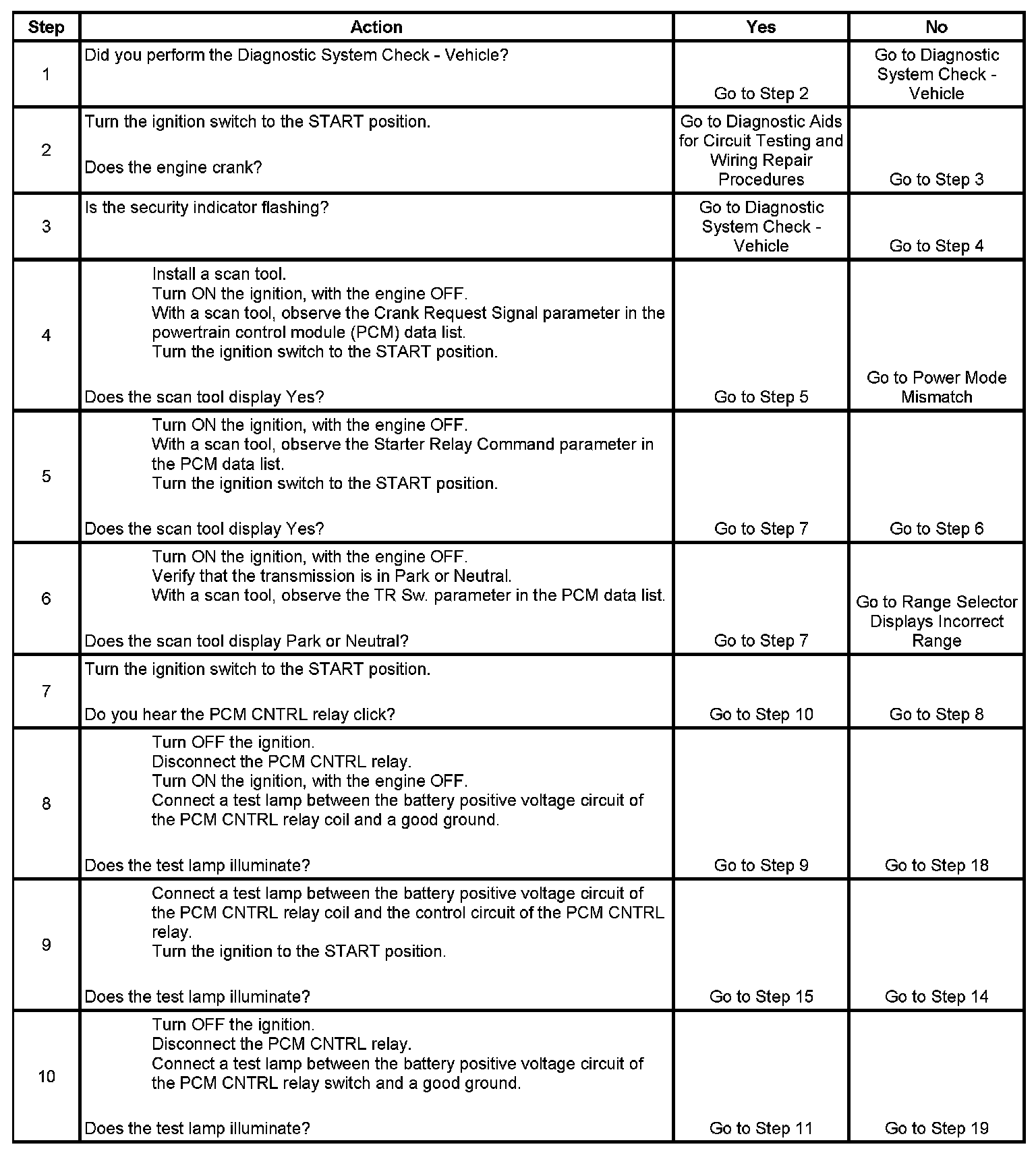

Step 1 - Step 10:

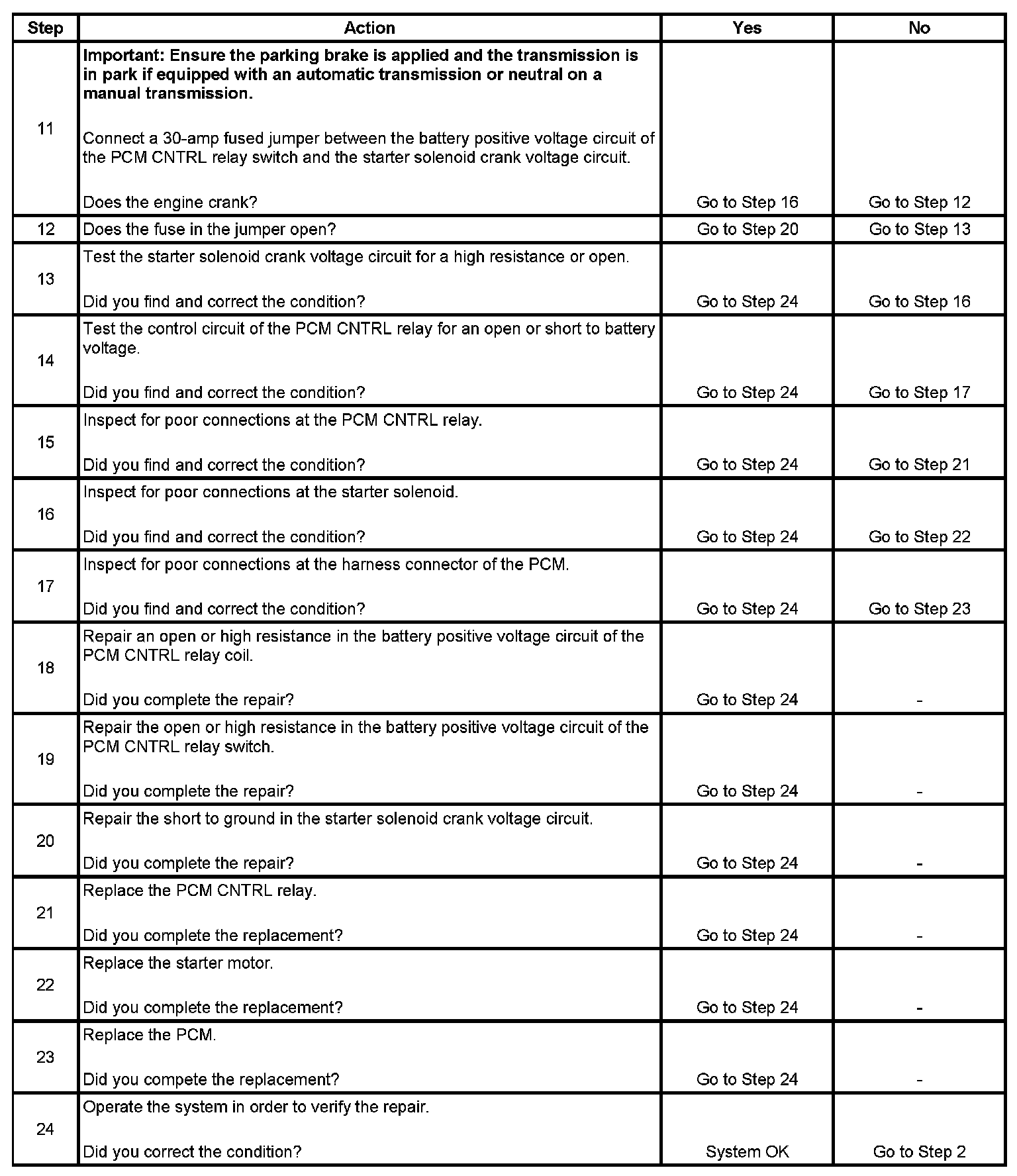

Step 11 - Step 24:
