Starter Motor Noise Diagnosis
Starter Motor Noise Diagnosis
Starter Motor
Noise Diagnosis
Diagnostic Aids
Inspect the flywheel ring gear for damage or unusual wear.

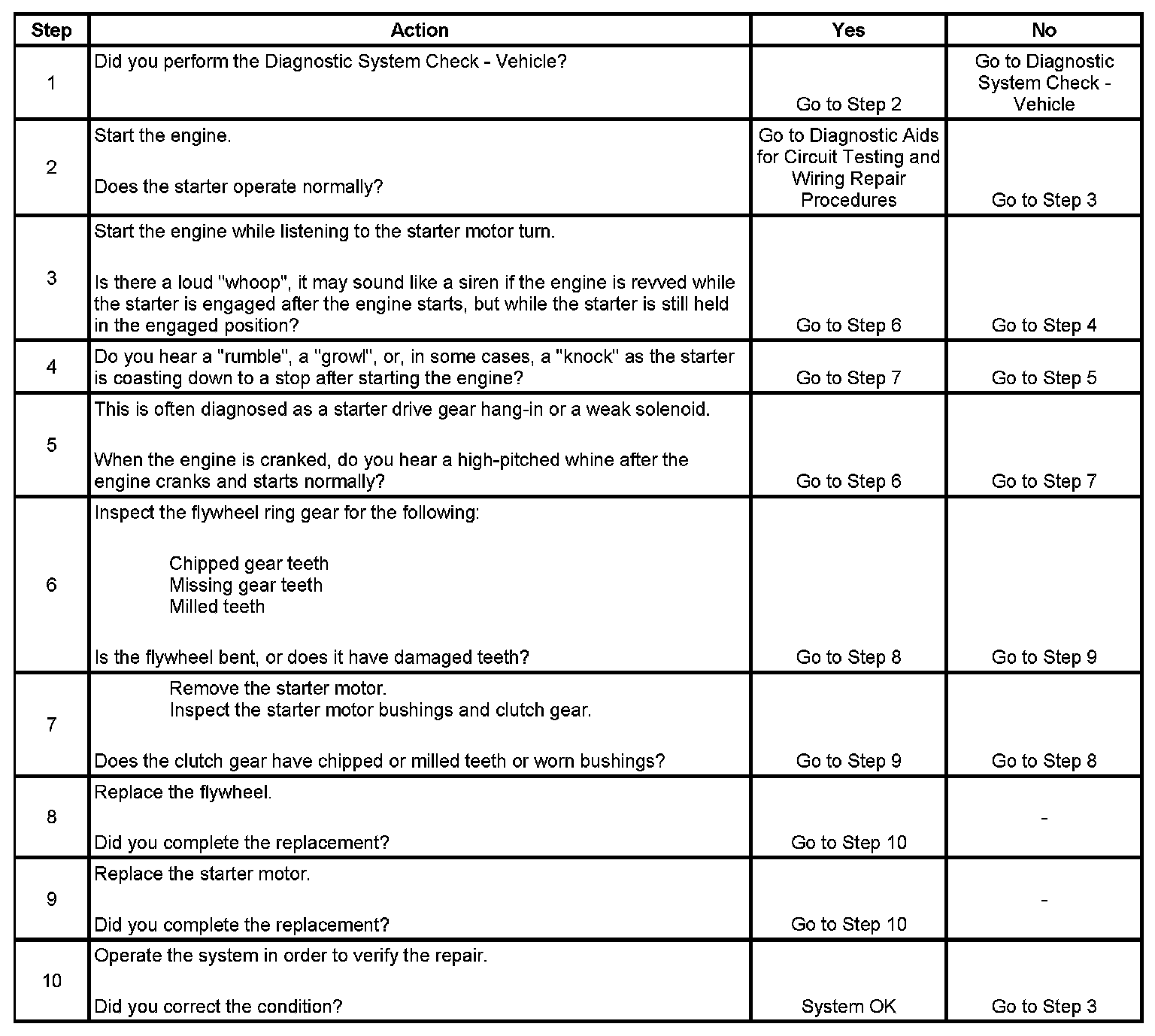

Test
Step 1 - Step 10:
