Power Distribution Diagram 2

Power Distribution Schematics

ABS/VES1-SOL, ABS/VES2-MTR, AUX PWR 1, AUX PWR 2, CLSTR, CNSTR VENT, PCM-B, RDO, STOP, and TCCM Fuses

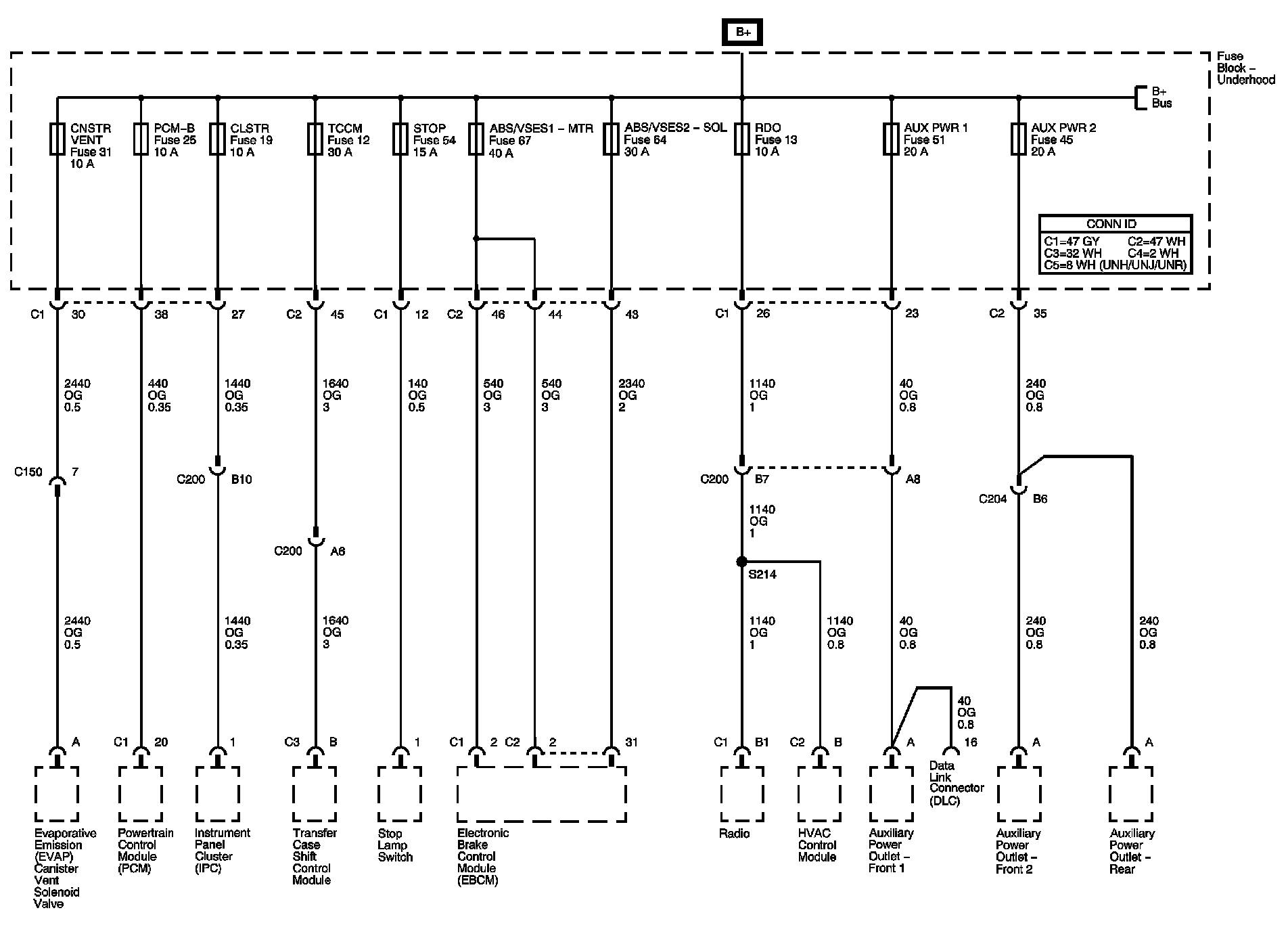

Power Distribution Diagram 2:

Next Diagram: Power Distribution Diagram 3

Previous Diagram: Power Distribution Diagram 1

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
