Auxiliary Power Outlet: Locations

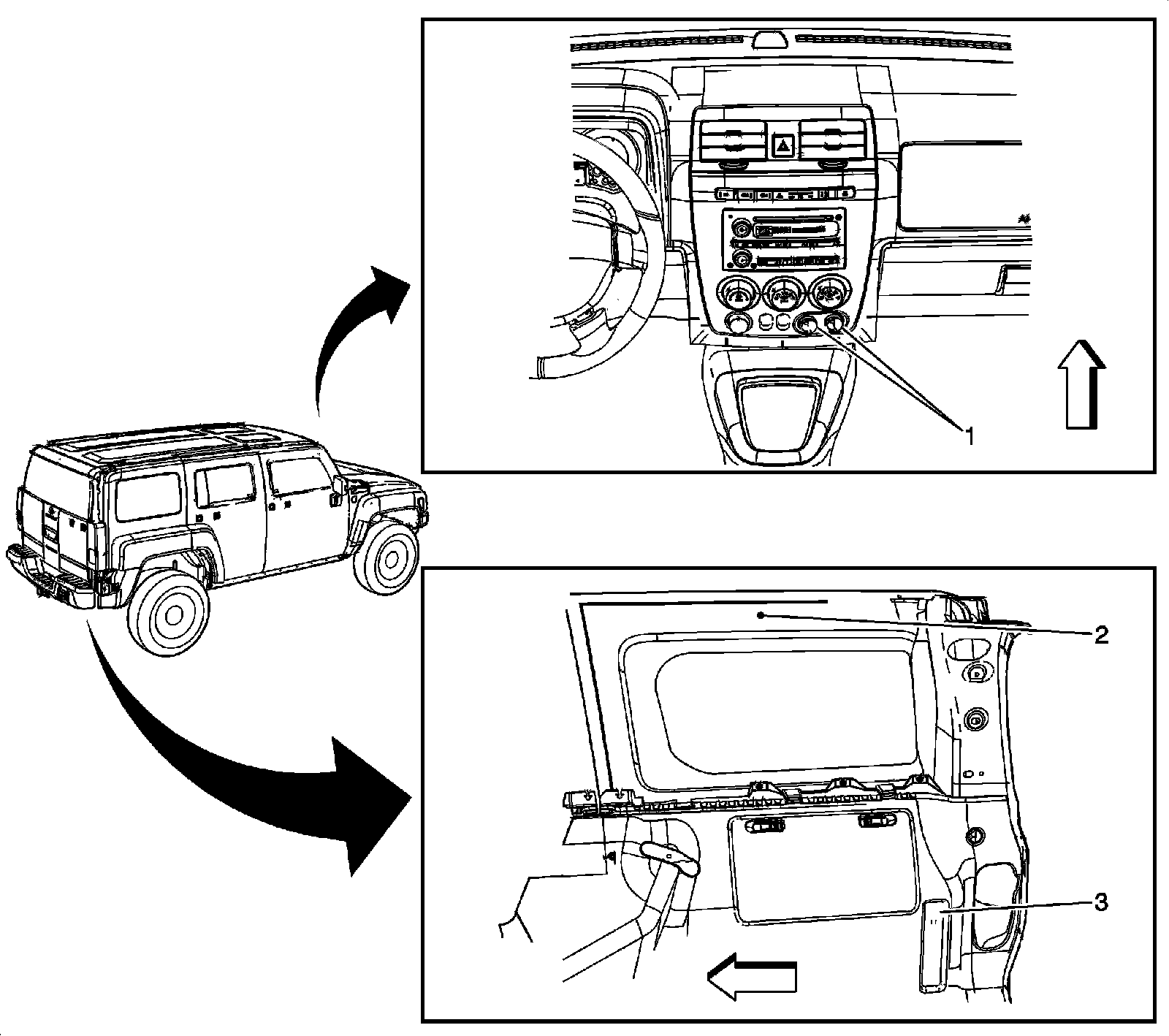

Power Outlet Component Views

Auxiliary Power Outlets




1 - Auxiliary Power Outlets - Front
2 - Right Rear Side Panel
3 - Auxiliary Power Outlet - Rear
